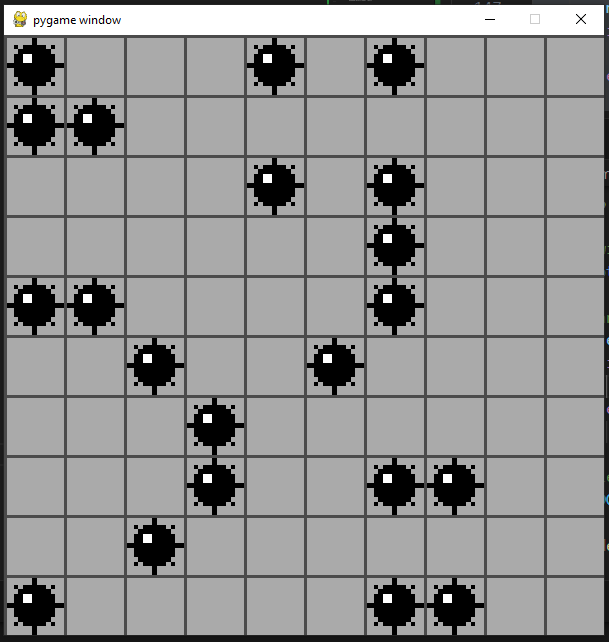

- Bomb Count Fix
- Right Click to Add a Flag

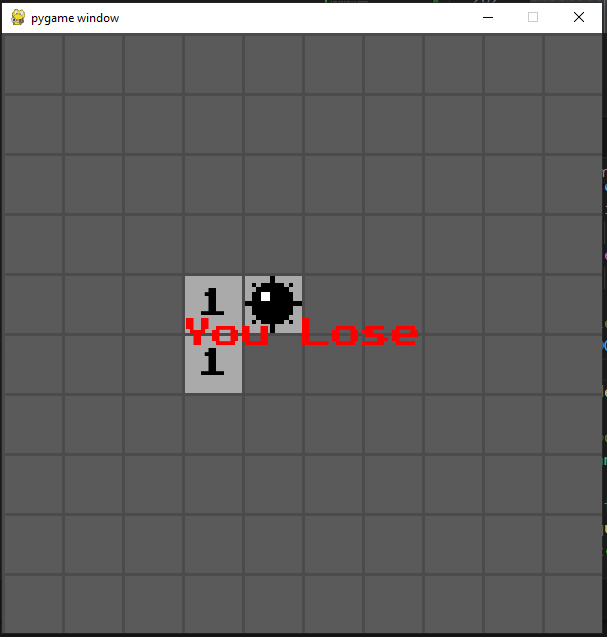

- Lose Condition

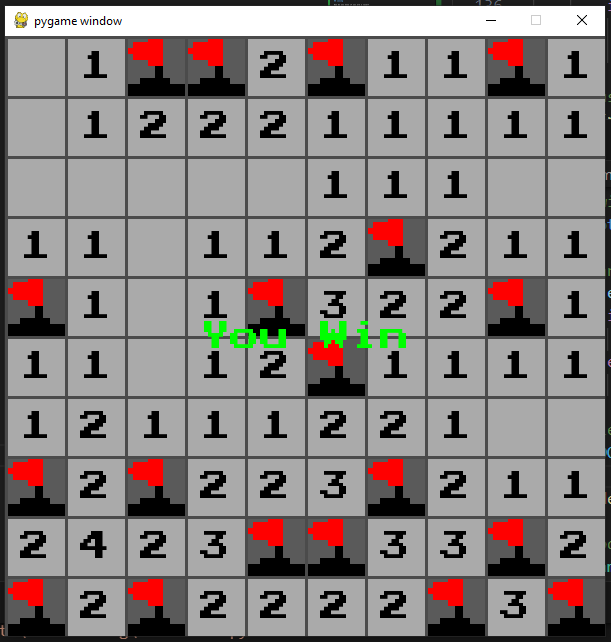

- Win Condition
- Breaking the Board

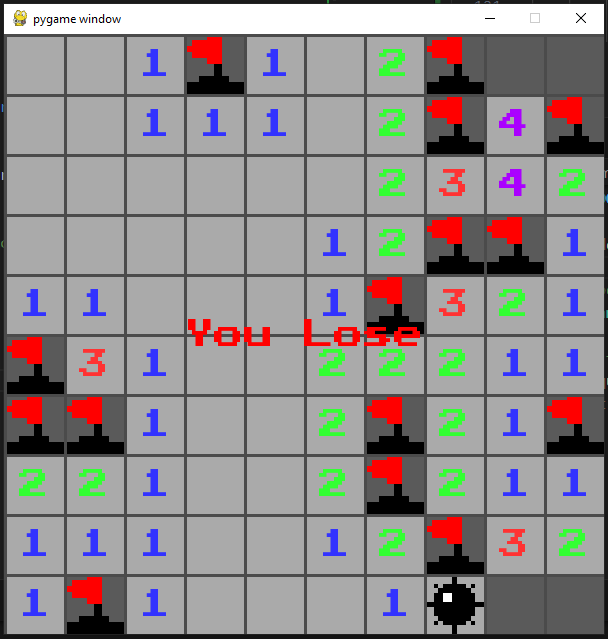

- Improved Colouring (extra)
- Revealing grid on Game End (extra)
- Resetting the Game (extra)
- Conclusion
What You'll Learn
In this CodeLab, you'll learn how to code the classic Minesweeper game using pygame. More importantly, you'll learn about Python class definitions, organising game objects in a 2D array, and organising Python projects across multiple files.

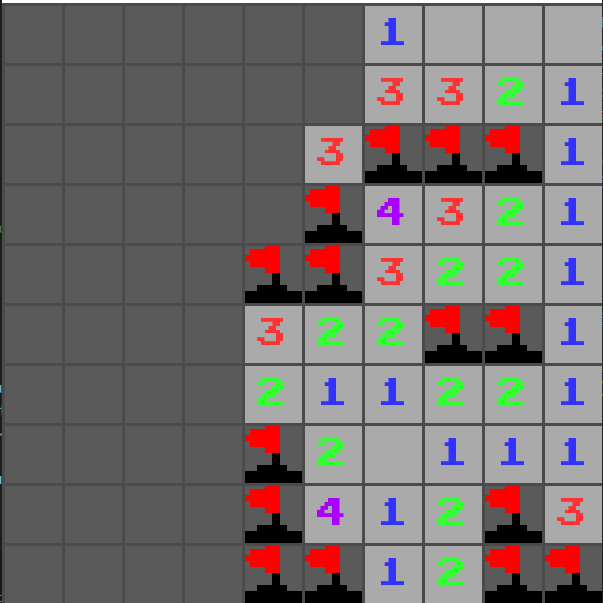

Final Game:
VSCode and Python
We will be using VSCode to create the Python code for this project. These can be downloaded here:

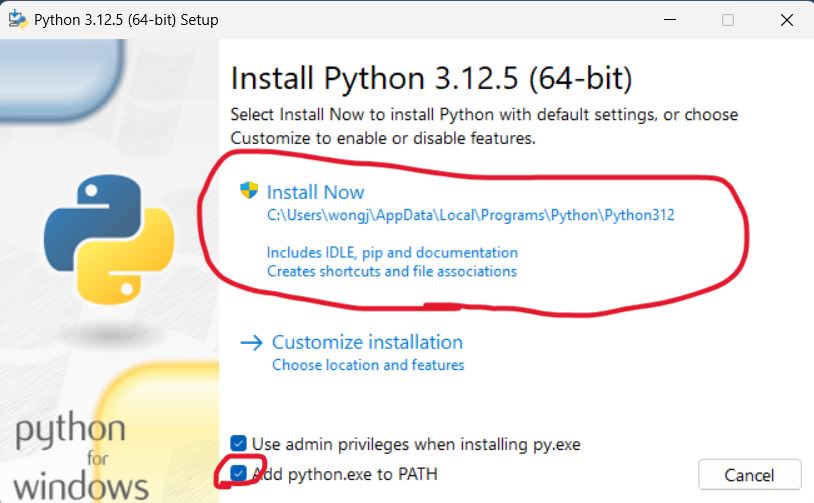

Make sure to check this box here:
Pygame
This project will use an API called pygame to create a window and render things onto it. To get pygame, just type the following command in a VSCode terminal:
For Windows:
py -m pip install -U pygame --user
For Mac:
python3 -m pip install -U pygame --user
Create a new folder on your computer for this project, and open it in VSCode.
Download the baseplate files for this project here. Extract this file anywhere, and open the extracted folder in VSCode.
The folder will contain three .py files, main, Cell, and Functions. It will also contain two .png images, and one .ttf font. These are the assets we will use for Minesweeper.
main.py contains some code for opening a window with pygame. When creating the game, this will be the file that we actually run.
Minesweeper will consist of a grid of cells. Each cell can either be a bomb or safe. A cell can also be revealed or not revealed, and it can have a flag, or not have a flag. Additionally, our cells will contain their (x,y) coordinate in the grid.
Our cells will have a counter for how many bombs are adjacent to them, and if a cell IS a bomb, then this counter will be set to -1 to represent this.
Go to Cell.py, and begin defining a Cell class, like so:
# A single cell on the minsweeper board
class Cell:
# Initialise cell x and y indices, and whether the cell is a bomb
# Initialise whether the cell is revealed, and whether ir contains a flag
def __init__(self, isBomb, x, y):
# If the cell is a bomb, make surrounding bombs -1
if isBomb:
self.surrounding_bombs = -1
else:
self.surrounding_bombs = 0
self.revealed = False
self.flagged = False
# x and y represent the indices of the cell
self.x, self.y = x, y
To make life easier, let's define a function to tell if a cell is a bomb, like this:
# A single cell on the minsweeper board
class Cell:
# Initialise cell x and y indices, and whether the cell is a bomb
# Initialise whether the cell is revealed, and whether ir contains a flag
def __init__(self, isBomb, x, y):
# If the cell is a bomb, make surrounding bombs -1
if isBomb:
self.surrounding_bombs = -1
else:
self.surrounding_bombs = 0
self.revealed = False
self.flagged = False
# x and y represent the indices of the cell
self.x, self.y = x, y
# | |
# | ADD THIS FUNCTION |
# V V
def isBomb(self):
return self.surrounding_bombs == -1
We've defined an individual cell in the minesweeper grid, but we need a way to contain a bunch of cells. We're going to use a 2D array, to contain columns and rows of cells.
Go to Functions.py, and define these variables to create a 2D array of Cells:
import pygame, math, random
#import cell class
from Cell import *
# turn on pygame
pygame.init()
# window dimensions
WIDTH, HEIGHT = 600, 600
# | |
# | ADD THIS CODE HERE |
# V V
# minesweeper grid dimensions
NX, NY = 10, 10
# side length of each cell
CELL_SIZE = WIDTH / NX
# array of all cells
cells = [[Cell(False,0,0) for i in range(NY)] for j in range(NX)]
# Create the window and fonts
WINDOW = pygame.display.set_mode((WIDTH, HEIGHT))
Now that there's a container for all cells, we can start making some more code for the cells themselves.
Why do cells need to look at each other?
Start by making a function for cells to get the cells surrounding themselves. The surrounding cells will be all the (x, y) cooridinates i unit away from the cell's coordinates (as long as x and y are in bounds)
Go to Cell.py, and add this function:
# A single cell on the minsweeper board
class Cell:
def __init__(self, isBomb, x, y):
...
def isBomb(self):
...
# | |
# | ADD THIS FUNCTION HERE |
# V V
# Gets a list of the cells surrounding this one
def surrounding(self):
# import array from functions
from Functions import cells, NX, NY
surrounding = []
# iterate through the 8 cells surrounding (x, y)
# skip if the cell is out of bounds, or if the cell *is* (x, y)
for i in range(self.x-1, self.x+2):
if not 0<=i<NX: # cell out of bounds
continue
for j in range(self.y-1, self.y+2):
if (not 0<=j<NY) or (j==self.y and i==self.x):
continue
# Add the cell to the surorounding arry
surrounding.append(cells[i][j])
# return the array of surrounding cells
return surrounding
Now that cells can access their neighbours, there needs to be a way for them to see how many of said neighbours are bombs. This value will be saved to the cell's surrounding_bombs variable
Add this function to the Cell class:
# A single cell on the minsweeper board
class Cell:
def __init__(self, isBomb, x, y):
...
def isBomb(self):
...
def surrounding(self):
...
# | |
# | ADD THIS FUNCTION HERE |
# V V
# counts the number of surrounding cells that are bombs
def countSurrounding(self):
# do nothing if the cell is a bomb
if not self.isBomb():
# reset bomb counter to 0
self.surrounding_bombs = 0
# for each bomb in surrounding cells, increment the bomb counter
for cell in self.surrounding():
if cell.isBomb():
self.surrounding_bombs += 1
In minesweeper when you left click a cell, it gets revealed so you can see how many bombs are around the cell.
Add this reveal function to the Cell class:
# A single cell on the minsweeper board
class Cell:
def __init__(self, isBomb, x, y):
...
def isBomb(self):
...
def surrounding(self):
...
def countSurrounding(self):
...
# | |
# | ADD THIS FUNCTION HERE |
# V V
# Makes the cell revealed. If the cells has 0 surrounding bombs,
# reveals all adjacent cells
def reveal(self):
# make the cell revealed
self.revealed = True
# If there are not surrounding bombs, reveal all surrounding
if self.surrounding_bombs == 0:
for cell in self.surrounding():
if not cell.revealed:
cell.reveal()
Rendering the cell comes in three parts:
- Checking if the cell is revealed or not
- Rendering the cell background
- Rendering cell images
- If the cell is flagged, this means rendering a flag. If its'revealed, it means rendering the number of surrounding bombs, or a bomb if the cell is a bomb
We're going to need to load images for a bomb and flag to render, as well as a font for showing the surrounding bombs count. Go to Functions.py and add these three lines:
''' Functions.py '''
import pygame, math, random
#import cell class
from Cell import *
...
# array of all cells
cells = [[Cell(False,0,0) for i in range(NY)] for j in range(NX)]
# Create the window
WINDOW = pygame.display.set_mode((WIDTH, HEIGHT))
# | |
# | ADD THESE LINES HERE |
# V V
# Font for surrounding bombs
FONT = pygame.font.Font("PixelFont.ttf", int(CELL_SIZE/2))
# Textures for flag and bomb, scaled to match cell dimensions
FLAG = pygame.transform.scale(pygame.image.load("flag.png"), (CELL_SIZE,CELL_SIZE))
BOMB = pygame.transform.scale(pygame.image.load("bomb.png"), (CELL_SIZE,CELL_SIZE))
With these loaded, go back to Cell.py to add the render function to the Cell class:
''' Cell.py '''
# A single cell on the minsweeper board
class Cell:
def __init__(self, isBomb, x, y):
...
def isBomb(self):
...
def surrounding(self):
...
def countSurrounding(self):
...
def reveal(self):
...
# | |
# | ADD THIS FUNCTION HERE |
# V V
# Renders the cell onto the screen
def render(self):
# get required variables from functions
from Functions import WINDOW, FONT, CELL_SIZE, FLAG, BOMB
# Set up a rect to represent the cell's space on the window
rect = pygame.Rect(self.x*CELL_SIZE, self.y*CELL_SIZE, CELL_SIZE, CELL_SIZE)
Steps 1 and 2
As mentioned before, there will be three steps to cell rendering. Let's implement the first two,
We'll render a darker background for hidden cells, and a lighter one for revealed cells
Add this code to the render function we just made:
# Renders the cell onto the screen
def render(self):
# get required variables from functions
from Functions import WINDOW, FONT, CELL_SIZE, FLAG, BOMB
# Set up a rect to represent the cell's space on the window
rect = pygame.Rect(self.x*CELL_SIZE, self.y*CELL_SIZE, CELL_SIZE, CELL_SIZE)
# | |
# | ADD THIS CODE HERE |
# V V
# If the cells is revealed, show the number of surrounding bombs, or,
# if the cell IS a bomb, render the bomb image
if self.revealed:
# render cell background
pygame.draw.rect(WINDOW, (170,170,170), rect)
# If the cell ISN'T revealed, just render the cell backgorund
# if the cell has a flag, render the flag image
else:
pygame.draw.rect(WINDOW, (90,90,90), rect)
Step 3
And for the final step:
If the cell is flagged, this means rendering a flag. If its'revealed, it means rendering the number of surrounding bombs, or a bomb if the cell is a bomb.
Add this code in the render function:
# Renders the cell onto the screen
def render(self):
# get required variables from functions
from Functions import WINDOW, FONT, CELL_SIZE, FLAG, BOMB
# Set up a rect to represent the cell's space on the window
rect = pygame.Rect(self.x*CELL_SIZE, self.y*CELL_SIZE, CELL_SIZE, CELL_SIZE)
# If the cells is revealed, show the number of surrounding bombs, or,
# if the cell IS a bomb, render the bomb image
if self.revealed:
# render cell background
pygame.draw.rect(WINDOW, (170,170,170), rect)
# | |
# | ADD THIS CODE HERE |
# V V
# render bomb image if the cell is a bomb
if self.isBomb():
WINDOW.blit(BOMB, rect)
# Render a number for the surrounding bomb count
elif self.surrounding_bombs > 0:
num = FONT.render(str(self.surrounding_bombs), True, (0,0,0))
num_rect = num.get_rect(center=(rect.x+rect.w/2,rect.y+rect.h/2))
WINDOW.blit(num, num_rect)
# If the cell ISN'T revealed, just render the cell backgorund
# if the cell has a flag, render the flag image
else:
pygame.draw.rect(WINDOW, (90,90,90), rect)
# | |
# | ADD THIS CODE HERE |
# V V
if self.flagged:
WINDOW.blit(FLAG, rect)
Wow, that was a lot of "defining the cell class" just to not add anything into the game. Let's finally create the grid to play Minesweeper!
We'll need two functions, one to create the grid, and one helper to decide if each cell will be a bomb.
Bomb Checking Function
We'll have a 25% chance for each cell to be a bomb. So, for this function, we'll create a random number between 0 and 1, and if it's less than o.25 (a 25%), return true.
Add this function to Functions.py:
''' Functions.py '''
import pygame, math, random
#import cell class
from Cell import *
...
# Font for surrounding bombs
FONT = pygame.font.Font("PixelFont.ttf", int(CELL_SIZE/2))
# Textures for flag and bomb, scaled to match cell dimensions
FLAG = pygame.transform.scale(pygame.image.load("flag.png"), (CELL_SIZE,CELL_SIZE))
BOMB = pygame.transform.scale(pygame.image.load("bomb.png"), (CELL_SIZE,CELL_SIZE))
# | |
# | ADD THIS STUFF HERE |
# V V
##############################
# #
# GRID MANAGEMENT #
# #
##############################
def rollForBomb():
# If the bomb roll is successful, return true
if random.uniform(0, 1) < 0.25:
return True
return False
Grid Creation Function
We'll create the grid by iterating through each item in the cells array, and creating a new cell to in that spot.
Add this createGrid() function:
##############################
# #
# GRID MANAGEMENT #
# #
##############################
def rollForBomb():
...
# | |
# | ADD THIS FUNCTION HERE |
# V V
def createGrid():
global cells
# re-initialise the grid with new cells
cells = [[Cell(rollForBomb(), j, i) for i in range(NY)] for j in range(NX)]
We defined a function for rendering cells, so we just need a way to iterate through all of our cells and render each one. We're also going to render some gridlines to make it easier to distinguish individual cells.
Adds these three functions to Functions.py:
''' Functions.py '''
def rollForBomb():
...
def createGrid():
...
# | |
# | ADD THIS STUFF HERE |
# V V
##############################
# #
# RENDERING FUNCTIONS #
# #
##############################
# render all cells in the grid
def renderCells():
for row in cells:
for cell in row:
cell.render()
# renders all the grid lines
def renderGrid():
# render vertical gridlines
line = pygame.Rect(0, 0, 3, HEIGHT)
for i in range(NX):
line.x = CELL_SIZE * i
pygame.draw.rect(WINDOW, (75,75,75), line)
# render horizontal gridlines
line = pygame.Rect(0, 0, WIDTH, 3)
for i in range(NY):
line.y = CELL_SIZE * i
pygame.draw.rect(WINDOW, (75,75,75), line)
# This one is just to make life easier
def render():
# call rendering helper functions
renderCells()
renderGrid()

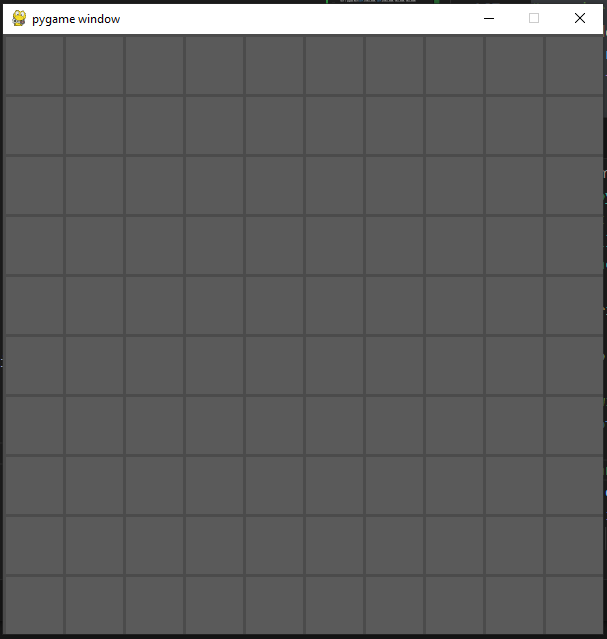

Now that there's a way to create the grid and render it, we can finally have the game show up in the actual window. Only 13 pages to add anything into the window, better late than never!
Make these changes in main.py
''' main.py '''
import pygame, sys
# Import game code
from Cell import *
from Functions import *
createGrid() # <----- ADD THIS LINE HERE
quit_app = False
# Main window loop
while not quit_app:
# Handle inputs
for event in pygame.event.get():
if event.type == pygame.QUIT:
quit_app = True
# Clear window
WINDOW.fill("black")
render() # <----- ADD THIS LINE HERE
# update the display
pygame.display.update()
# close the application
pygame.quit()
sys.exit()
Run main
If you run main.py, you should see this window now:
Right now, this game is pretty lame since all the cells are hidden, since you can't left click anything to reveal them.
When you left click, we need to do 2 things:
- Find what cell you clicked on
- Reveal that cell
Since the cells split the window perfectly into CELL_SIZE sized squares, we can convert (x, y) coordinates on the window to array indices by just dividing x and y by CELL_SIZE.
Add these two functions in Functions.py:
''' Functions.py '''
def rollForBomb():
...
def createGrid():
...
# | |
# | ADD THIS STUFF HERE |
# V V
##############################
# #
# INPUT FUNCTIONS #
# #
##############################
# left click on the (x,y) coordinates
# left clicking reveals non flagged cells
def leftClick(x, y):
# convert the mouse position to cell indices
cx, cy = int(x/CELL_SIZE), int(y/CELL_SIZE)
# return if either index is out of bounds
if not (0<=cx<NX and 0<=cy<NY):
return
# reveal cells that get clicked, don't reveal flagged cells
cell = cells[cx][cy]
if not cell.flagged:
cell.reveal()
# Gets user input
def getInput(event):
# when left/right clicking, get mouse position, and call the appropriate function
if event.type == pygame.MOUSEBUTTONDOWN:
# get mouse positions and which buttons are active
mousex, mousey = pygame.mouse.get_pos()
mouse_buttons = pygame.mouse.get_pressed()
if mouse_buttons[0]:
leftClick(mousex, mousey)
Calling in main
Now, go to main.py, and add this line to call the input function:
''' main.py '''
...
# Main window loop
while not quit_app:
# Handle inputs
for event in pygame.event.get():
if event.type == pygame.QUIT:
quit_app = True
else: # <----- ADD THIS LINE HERE
getInput(event) # <----- ADD THIS LINE HERE
# Clear window
WINDOW.fill("black")
...
Now, when you click on a cell, something like this should happen:
This is happening because none of the cells have had their countSurrounding function called anywhere, so all the non-bomb cells think they have zero surrounding bombs, and reveal their neighbours when they get revealed.
When creating the grid, let's call a new function, called breakBoard (the name will make sense later), to make all the cells count their neighbours when the grid is created.
Make these changes in Funcitons.py:
''' Functions.py '''
##############################
# #
# GRID MANAGEMENT #
# #
##############################
# | |
# | ADD THIS FUNCTION HERE |
# V V
def breakBoard():
# iterate through each cell, and update the cell's surrounding count
for x in range(NX):
for y in range(NY):
cells[x][y].countSurrounding()
def rollForBomb():
...
def createGrid():
global cells
# re-initialise the grid with new cells
cells = [[Cell(rollForBomb(), j, i) for i in range(NY)] for j in range(NX)]
breakBoard() # <----- ADD THIS LINE HERE
NOW when you run main.py, if you left click on a cell it should reveal it as expected:
When right clicking on a cell, if it's not revealed we should add a flag if it has none, or remove a flag if it already does. In other words, we're going to toggle the flag
We can find the cell clicked on the same way we did for left clicking, so add this code to Functions.py:
''' Functions.py '''
...
##############################
# #
# INPUT FUNCTIONS #
# #
##############################
# left click on the (x,y) coordinates
# left clicking reveals non flagged cells
def leftClick(x, y):
...
# | |
# | ADD THIS FUNCTION HERE |
# V V
# right click on the (x, y) coordinates
# right clicking toggles flag on non-revealed cells
def rightClick(x, y):
# convert the mouse position to cell indices
cx, cy = int(x/CELL_SIZE), int(y/CELL_SIZE)
# return if either index is out of bounds
if not (0<=cx<NX and 0<=cy<NY):
return
# toggle the flag for cells that get right clicked
cell = cells[cx][cy]
cell.flagged = not cell.flagged
# Gets user input
def getInput(event):
# when left/right clicking, get mouse position, and call the appropriate function
if event.type == pygame.MOUSEBUTTONDOWN:
# get mouse positions and which buttons are active
mousex, mousey = pygame.mouse.get_pos()
mouse_buttons = pygame.mouse.get_pressed()
if mouse_buttons[0]:
leftClick(mousex, mousey)
elif mouse_buttons[2]: # <----- ADD THIS LINE HERE
rightClick(mousex, mousey) # <----- ADD THIS LINE HERE
Now when you right click, the cell you clicked on will have it's flag turned on/off!
How do you know if you are a loser?
- If you have no friends (looking at all of you)
- If you left click on a bomb
We're only going to add code for the second one today. Let's start by adding a variable to track whether the game has ended in Functions.py.
''' Functions.py '''
import pygame, math, random
#import cell class
from Cell import *
# turn on pygame
pygame.init()
# window dimensions
WIDTH, HEIGHT = 600, 600
# minesweeper grid dimensions
NX, NY = 10, 10
# side length of each cell
CELL_SIZE = WIDTH / NX
# array of all cells
cells = [[Cell(False,0,0) for i in range(NY)] for j in range(NX)]
# whether or not the game has ended
game_over = False # <----- ADD THIS LINE HERE
# Create the window and fonts
WINDOW = pygame.display.set_mode((WIDTH, HEIGHT))
...
Now go to leftClick. If you reveal a bomb cell, we'll set game_over to True:
...
##############################
# #
# INPUT FUNCTIONS #
# #
##############################
# left click on the (x,y) coordinates
# left clicking reveals non flagged cells
def leftClick(x, y):
global game_over # <----- ADD THIS LINE HERE
# convert the mouse position to cell indices
cx, cy = int(x/CELL_SIZE), int(y/CELL_SIZE)
# return if either index is out of bounds
if not (0<=cx<NX and 0<=cy<NY):
return
# reveal cells that get clicked, don't reveal flagged cells
cell = cells[cx][cy]
if not cell.flagged:
cell.reveal()
if cell.isBomb(): # <----- ADD THIS LINE HERE
game_over = True # <----- ADD THIS LINE HERE
...
Rendering Game Over
We need to tell players that they lost, so that everyone knows full well how much of a loser they are. We'll do this by rending text to the screen when the game is over
Add this code to render:
...
##############################
# #
# RENDERING FUNCTIONS #
# #
##############################
def renderCells():
...
def renderGrid():
...
# This one is just to make life easier
def render():
# call rendering helper functions
renderCells()
renderGrid()
# | |
# | ADD THIS CODE HERE |
# V V
# if the game has ended, render the victory or loss text
if game_over:
txt = FONT.render("You Lose", True, "red")
txt_rect = txt.get_rect(center=(WIDTH/2,HEIGHT/2))
WINDOW.blit(txt, txt_rect)
Now when you click on a bomb, this will happen:
How do you knoww if you are a winner?
- If you live a healthy life with an overall feeling of satisfaction
- You flag all the bombs on a minesweeper board
We're only going to cover that second one today, and we're going to do it by counting the number of bombs on the board, and decrementing that counter when the player correctly flags a bomb. They win when the counter is 0 (there are no unflagged bombs).
Add this variable in Fucntions.py to track the number of bombs:
''' Functions.py '''
import pygame, math, random
#import cell class
from Cell import *
# turn on pygame
pygame.init()
# window dimensions
WIDTH, HEIGHT = 600, 600
# minesweeper grid dimensions
NX, NY = 10, 10
# side length of each cell
CELL_SIZE = WIDTH / NX
# array of all cells
cells = [[Cell(False,0,0) for i in range(NY)] for j in range(NX)]
# The number of unflagged bombs
numBombs = 0 # <----- ADD THIS LINE HERE
# whether or not the game has ended
game_over = False
# Create the window and fonts
WINDOW = pygame.display.set_mode((WIDTH, HEIGHT))
Counting bombs
To count the number of bombs on the board, we're just going to change the rollForBomb function, to increment the counter every time it returns true, like so:
##############################
# #
# GRID MANAGEMENT #
# #
##############################
def breakBoard():
...
def rollForBomb():
global numBombs # <----- ADD THIS LINE HERE
# If the bomb roll is successful, return true
if random.uniform(0, 1) < 0.25:
numBombs += 1 # <----- ADD THIS LINE HERE
return True
return False
...
Detecting a W
When we right click to toggle flag, we should decrement the counter when flagging a bomb. So, in the rightClick function, after we decrement the counter, if the counter is 0 we'll set game_over to True
Make these changes in the rightClick function:
##############################
# #
# INPUT FUNCTIONS #
# #
##############################
def leftClick(x, y):
...
# right click on the (x, y) coordinates
# right clicking toggles flag on non-revealed cells
def rightClick(x, y):
global game_over, numBombs # <----- ADD THIS LINE HERE
# convert the mouse position to cell indices
cx, cy = int(x/CELL_SIZE), int(y/CELL_SIZE)
# return if either index is out of bounds
if not (0<=cx<NX and 0<=cy<NY):
return
# toggle the flag for cells that get right clicked
cell = cells[cx][cy]
cell.flagged = not cell.flagged
# | |
# | ADD THIS CODE HERE |
# V V
if cell.isBomb():
# change bomb count when a bomb is toggled
if not cell.flagged:
numBombs += 1
else:
numBombs -= 1
# win when there are no bombs left
if numBombs == 0:
game_over = True
...
Rendering the W
Finally, so that we don't render "You Lose" when you actually win, make this change to render:
##############################
# #
# RENDERING FUNCTIONS #
# #
##############################
def renderCells():
...
def renderGrid():
...
# This one is just to make life easier
def render():
# call rendering helper functions
renderCells()
renderGrid()
# if the game has ended, render the victory or loss text
if game_over:
if numBombs != 0: # <----- ADD THIS LINE HERE
# v INDENT THESE THREE LINES v
txt = FONT.render("You Lose", True, "red")
txt_rect = txt.get_rect(center=(WIDTH/2,HEIGHT/2))
WINDOW.blit(txt, txt_rect)
# | |
# | ADD THIS CODE HERE |
# V V
else:
txt = FONT.render("You Win", True, "green")
txt_rect = txt.get_rect(center=(WIDTH/2,HEIGHT/2))
WINDOW.blit(txt, txt_rect)
Right now, the game is really hard, because the first few cells you click are pretty much random, and they could very well be a bomb. We should start the game by revealing a cell that has zero surrounding bombs, so the player doesn't have to guess for their first few cells.
We're going to do this by editing breakBoard to reveal a cell that has zero surrounding bombs, lise so:
''' Functions.py '''
##############################
# #
# GRID MANAGEMENT #
# #
##############################
def breakBoard():
# indices of the cell that will be revealed
bx, by = -1, -1 # <----- ADD THIS LINE HERE
# iterate through each cell, and update the cell's surrounding count
# if the number of surrounding bombs is 0, update bx and by
for x in range(NX):
for y in range(NY):
cells[x][y].countSurrounding()
if cells[x][y].surrounding_bombs == 0: # <----- ADD THIS LINE HERE
bx, by = x, y # <----- ADD THIS LINE HERE
# | |
# | ADD THIS CODE HERE |
# V V
# if a cell to reveal was found, reveal it and return true
if bx>=0 and by>=0:
cells[bx][by].reveal()
return True
# return failure
return False
Error Handling
Add this code to createGrid:
##############################
# #
# GRID MANAGEMENT #
# #
##############################
def breakBoard():
...
def rollForBomb():
...
def createGrid():
global cells
# re-initialise the grid with new cells
cells = [[Cell(rollForBomb(), j, i) for i in range(NY)] for j in range(NX)]
if not breakBoard(): # <----- MODIFY THIS LINE HERE
createGrid() # <----- ADD THIS LINE HERE
All the numbers right now are pitch black. It would be nicer if they had different colours based on what number they are. Let's start by making a function to determine colour based on the number of surrounding bombs.
Go to Cell.py, and add this function before Cell definition:
''' Cell.py '''
import pygame
# Returns a colour based on the number of bombs surrounding a cell
def getColor(numSurroundingBombs):
match (numSurroundingBombs):
case 1:
return (50,50,255)
case 2:
return (50,255,50)
case 3:
return (255,50,50)
case 4:
return (170,0,255)
case 5:
return (255,255,0)
case 6:
return (255,150,0)
case 7:
return (20,20,20)
case 8:
return (30,0,0)
return (0,0,0)
# A single cell on the minsweeper board
class Cell:
...
Calling the new function
Now go to the cell's render function. We're going to change the line that makes the number black, and make it call this new function for a colour instead.
Make this change:
...
class Cell:
def __init__(self, isBomb, x, y):
...
def isBomb(self):
...
def surrounding(self):
...
def countSurrounding(self):
...
def reveal(self):
...
# Renders the cell onto the screen
def render(self):
# get required variables from functions
from Functions import WINDOW, FONT, CELL_SIZE, FLAG, BOMB
# Set up a rect to represent the cell's space on the window
rect = pygame.Rect(self.x*CELL_SIZE, self.y*CELL_SIZE, CELL_SIZE, CELL_SIZE)
# If the cells is revealed, show the number of surrounding bombs, or,
# if the cell IS a bomb, render the bomb image
if self.revealed:
# render cell background
pygame.draw.rect(WINDOW, (170,170,170), rect)
# render bomb image if the cell is a bomb
if self.isBomb():
WINDOW.blit(BOMB, rect)
# Render a number for the surrounding bomb count
elif self.surrounding_bombs > 0:
# | |
# | CHANGE THIS LINE TO CALL THE FUNCTION |
# V V
num = FONT.render(str(self.surrounding_bombs), True, getColor(self.surrounding_bombs))
num_rect = num.get_rect(center=(rect.x+rect.w/2,rect.y+rect.h/2))
WINDOW.blit(num, num_rect)
# If the cell ISN'T revealed, just render the cell backgorund
# if the cell has a flag, render the flag image
else:
pygame.draw.rect(WINDOW, (90,90,90), rect)
if self.flagged:
WINDOW.blit(FLAG, rect)
Now the game looks a LOT nicer :)
When you lose, we should make it clear why you're such a loser. We should reveal all the cells so that you know what you did wrong.
We won't reveal cells that were correctly flagged, so that you also know what you did right.
Add this function to Functions.py:
##############################
# #
# GRID MANAGEMENT #
# #
##############################
def breakBoard():
...
def rollForBomb():
...
def createGrid():
...
# reveal all cells in the grid. do not reveal bombs that have been correctly flagged
def revealAll():
for row in cells:
for cell in row:
if not cell.revealed:
if not (cell.isBomb() and cell.flagged):
cell.reveal()
Now, we'll call this function in both places that game_over gets set to True.
Call the function in leftClick and rightClick, like so:
##############################
# #
# INPUT FUNCTIONS #
# #
##############################
# left click on the (x,y) coordinates
# left clicking reveals non flagged cells
def leftClick(x, y):
global game_over
# convert the mouse position to cell indices
cx, cy = int(x/CELL_SIZE), int(y/CELL_SIZE)
# return if either index is out of bounds
if not (0<=cx<NX and 0<=cy<NY):
return
# reveal cells that get clicked, don't reveal flagged cells
cell = cells[cx][cy]
if not cell.flagged:
cell.reveal()
if cell.isBomb():
revealAll() # <----- ADD THIS LINE HERE
game_over = True
# right click on the (x, y) coordinates
# right clicking toggles flag on non-revealed cells
def rightClick(x, y):
global game_over, numBombs
# convert the mouse position to cell indices
cx, cy = int(x/CELL_SIZE), int(y/CELL_SIZE)
# return if either index is out of bounds
if not (0<=cx<NX and 0<=cy<NY):
return
# toggle the flag for cells that get right clicked
cell = cells[cx][cy]
cell.flagged = not cell.flagged
if cell.isBomb():
# change bomb count when a bomb is toggled
if not cell.flagged:
numBombs += 1
else:
numBombs -= 1
# win when there are no bombs left
if numBombs == 0:
revealAll() # <----- ADD THIS LINE HERE
game_over = True
It's kind of annoying how we have to close the game and relaunch it to reset. Let's make it so that the game resets when you press the spacebar.
Add this code to getInput:
##############################
# #
# INPUT FUNCTIONS #
# #
##############################
def leftClick(x, y):
...
def rightClick(x, y):
...
# Gets user input
def getInput(event):
global game_over # <----- ADD THIS LINE HERE
# when left/right clicking, get mouse position, and call the appropriate function
if event.type == pygame.MOUSEBUTTONDOWN:
# get mouse positions and which buttons are active
mousex, mousey = pygame.mouse.get_pos()
mouse_buttons = pygame.mouse.get_pressed()
if mouse_buttons[0]:
leftClick(mousex, mousey)
elif mouse_buttons[2]:
rightClick(mousex, mousey)
# | |
# | ADD THIS CODE HERE |
# V V
# If the player presses space, reset the game by creating a new grid
elif event.type == pygame.KEYDOWN:
if event.key == pygame.K_SPACE:
createGrid()
game_over = False
Now when you press space, the game resets!
Now you have working minesweeper, only after 22 CodeLab pages! So brief!
This is certainly one of the longest workshop projects so thank you for making it to the end, hopefully you learned something about game dev today!
Now. Look at Solly here. He is so so hungry because we have no money to feed him. Only YOU can make a change, by checking in to the event on bullsconnect.
