Table of Contents

1. Overview
2. Installing Godot, Importing or Continuing our Player Controller
3. Quick review and Importing assets
4. Adding Crosshair
5. Create Gun Scene
6. Create bullet
7. Shooting gun
8. Correcting the shooting position
9. Adding objects to shoot
10. FINISH!1!!11!

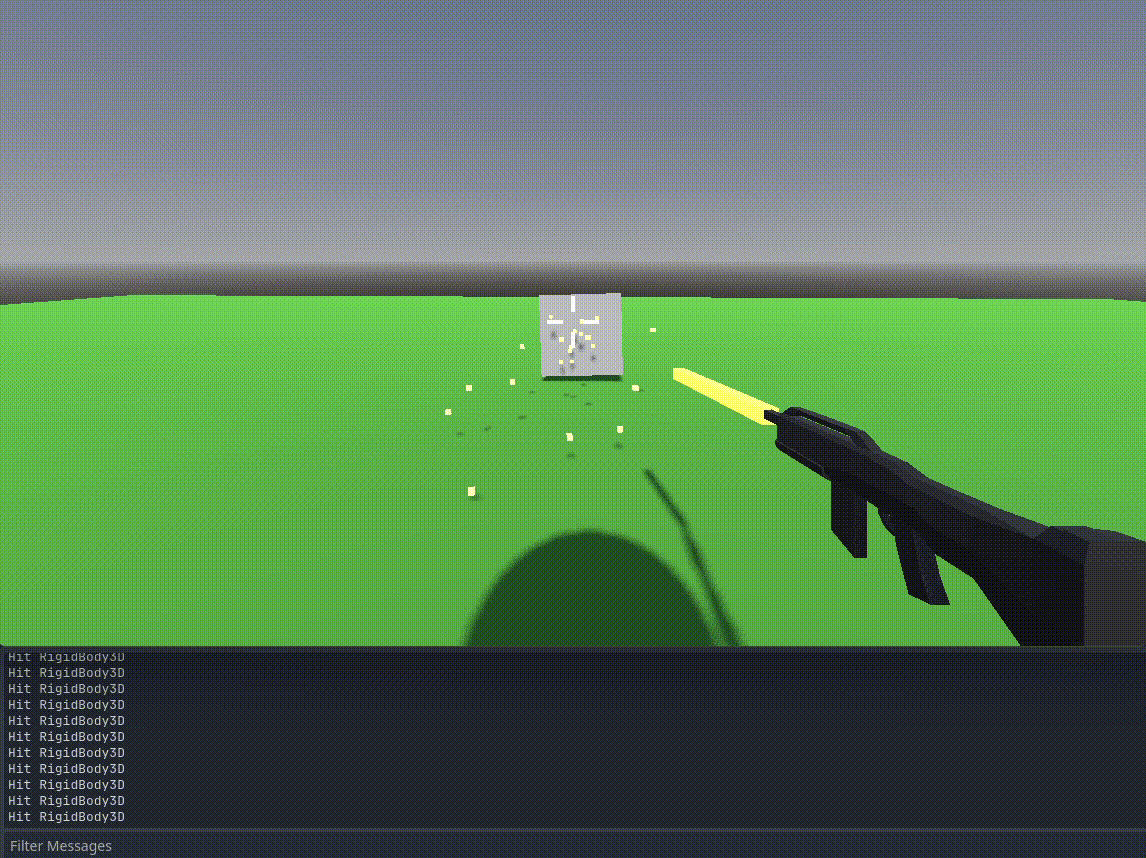

Finished Project

Download Godot

Click Here to Dowload Godot

Copy of First Person Player Controller project

Click Here to Dowload our First Person Player Controller

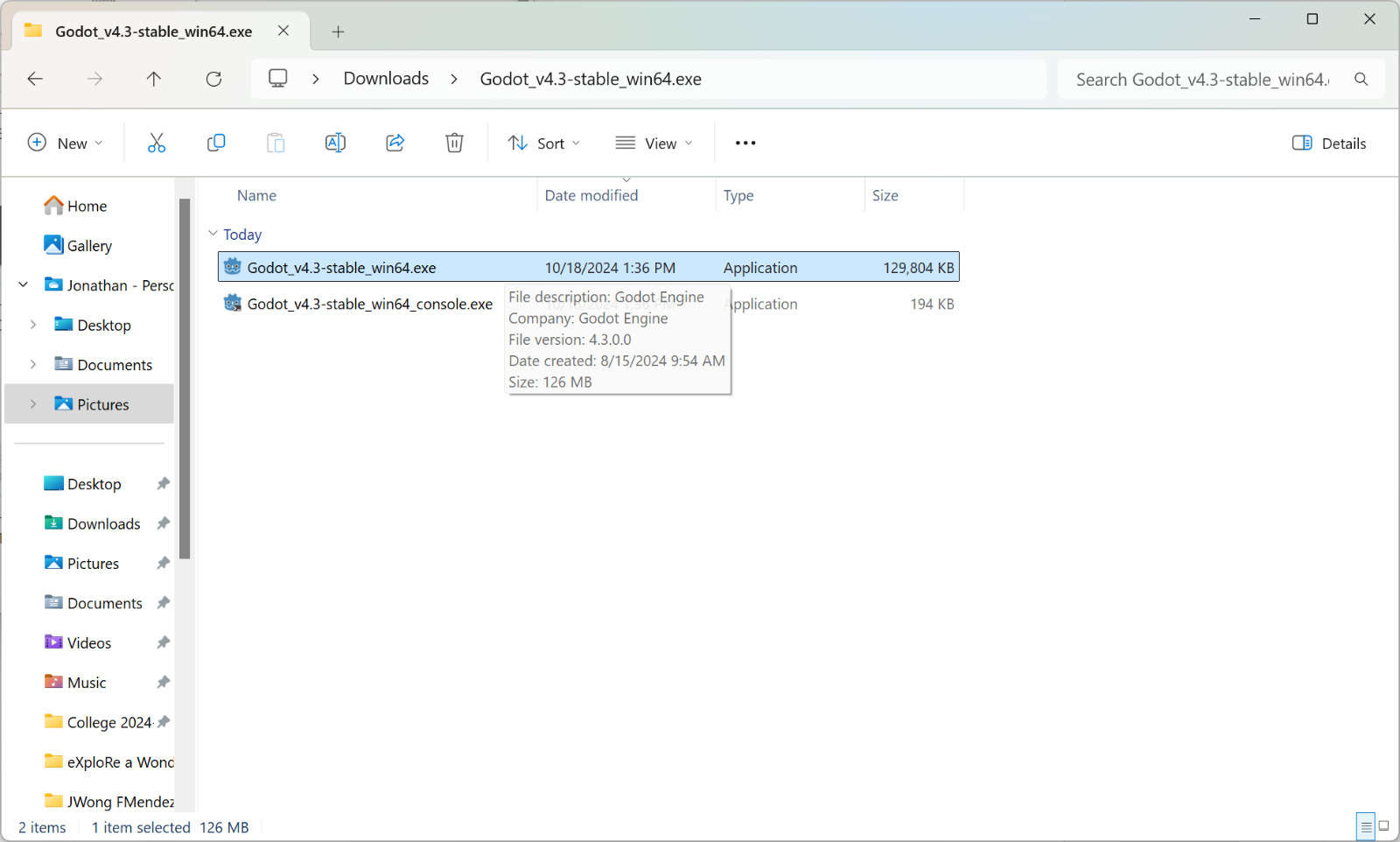

Run the correct Program

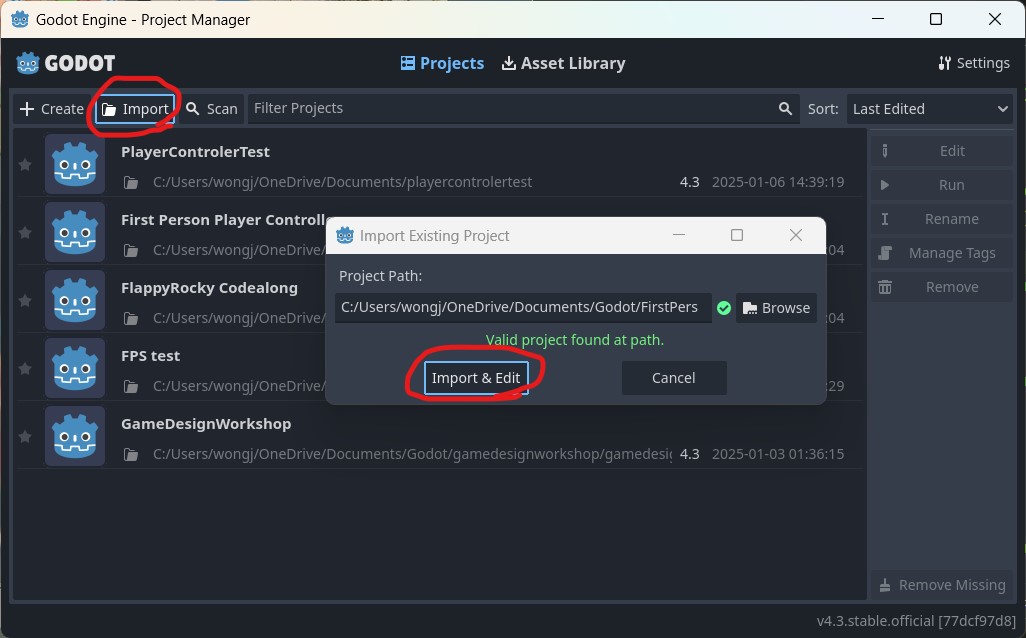

Import new project

The Player Controller

Basic Player Controller, allows user to move around and freelook

Import new assets for shooter

Click here to download assets

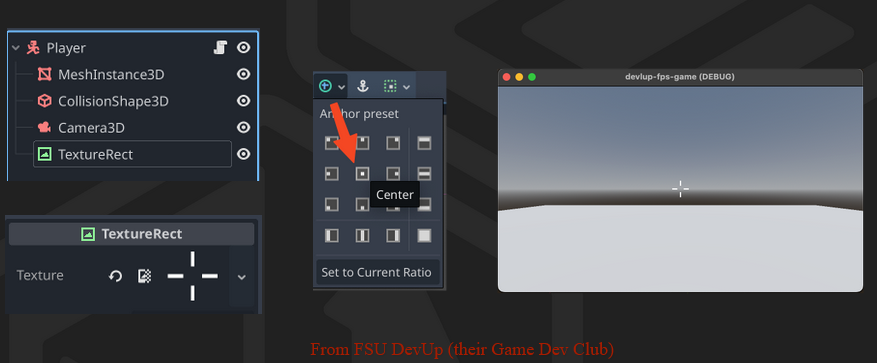

Create new TextureRect, anchor center, and apply texture

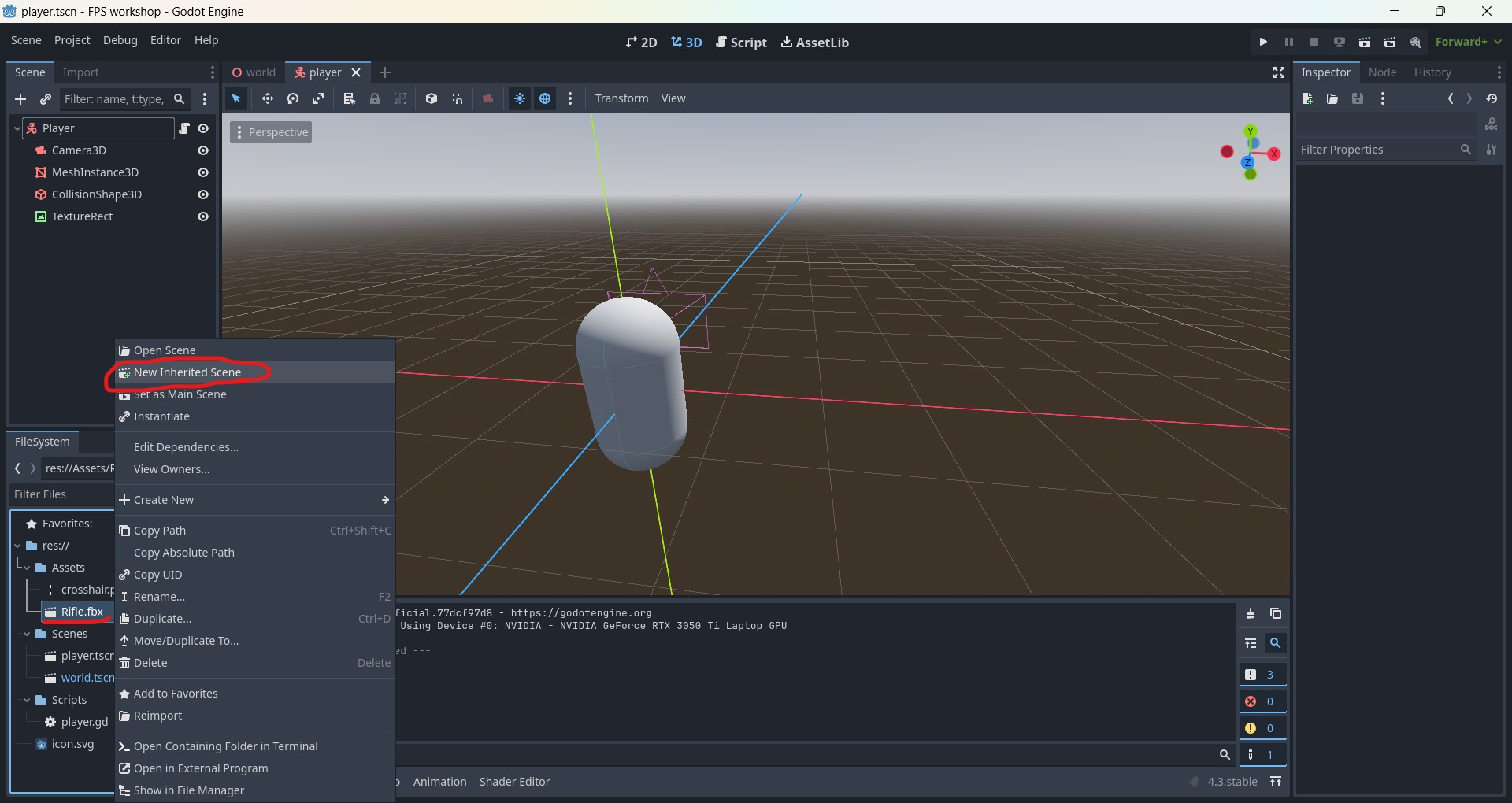

Create new Inhereted Scene from Rifle.fbx

Resize Rifle and Make sure front of the gun is facing -Z

Create a new Material (#434343)

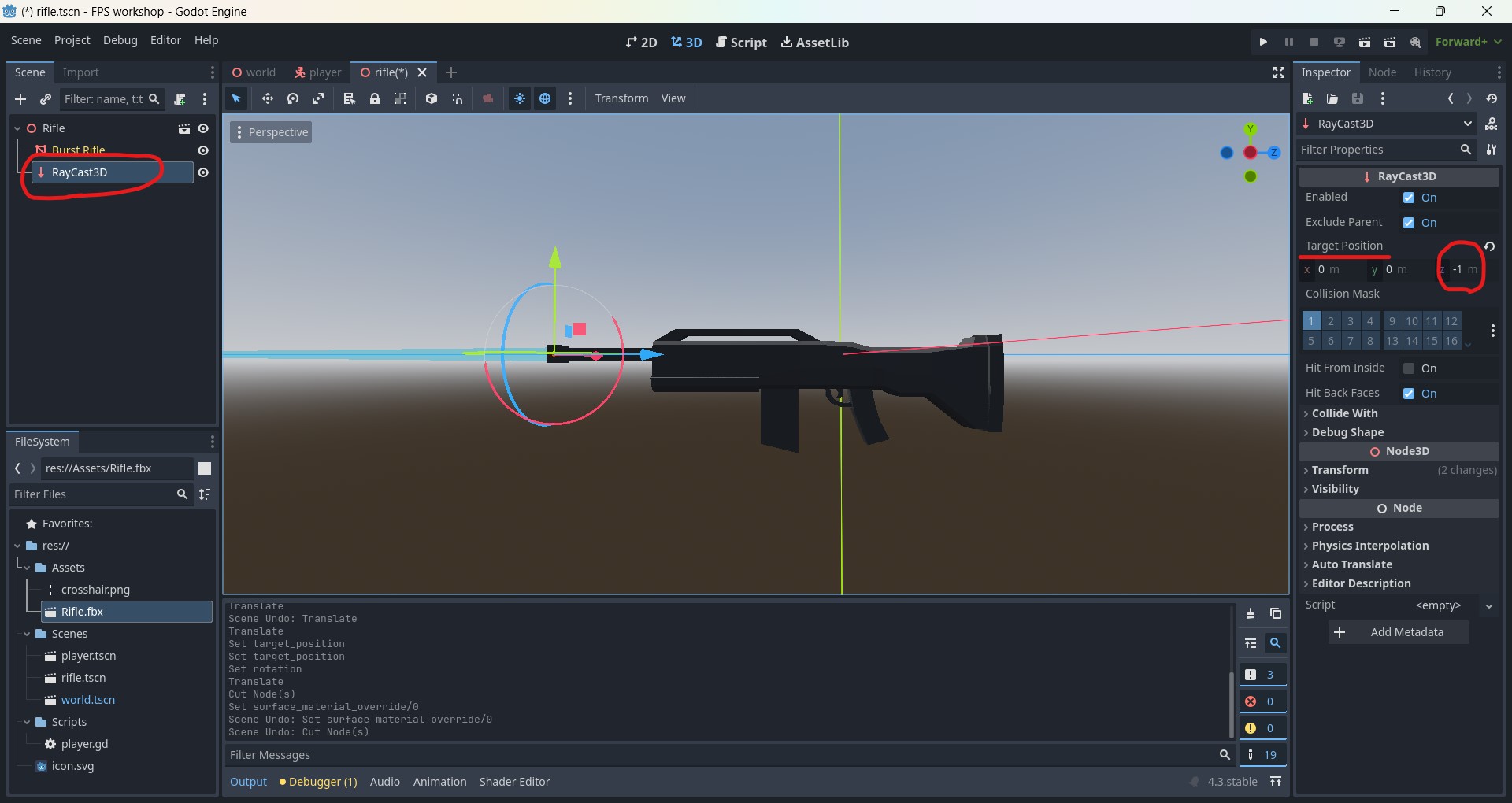

Add Raycast at the end of the barrel and make the Target Position (0,0,-1) [DO NOT ROTATE, change the target pos]

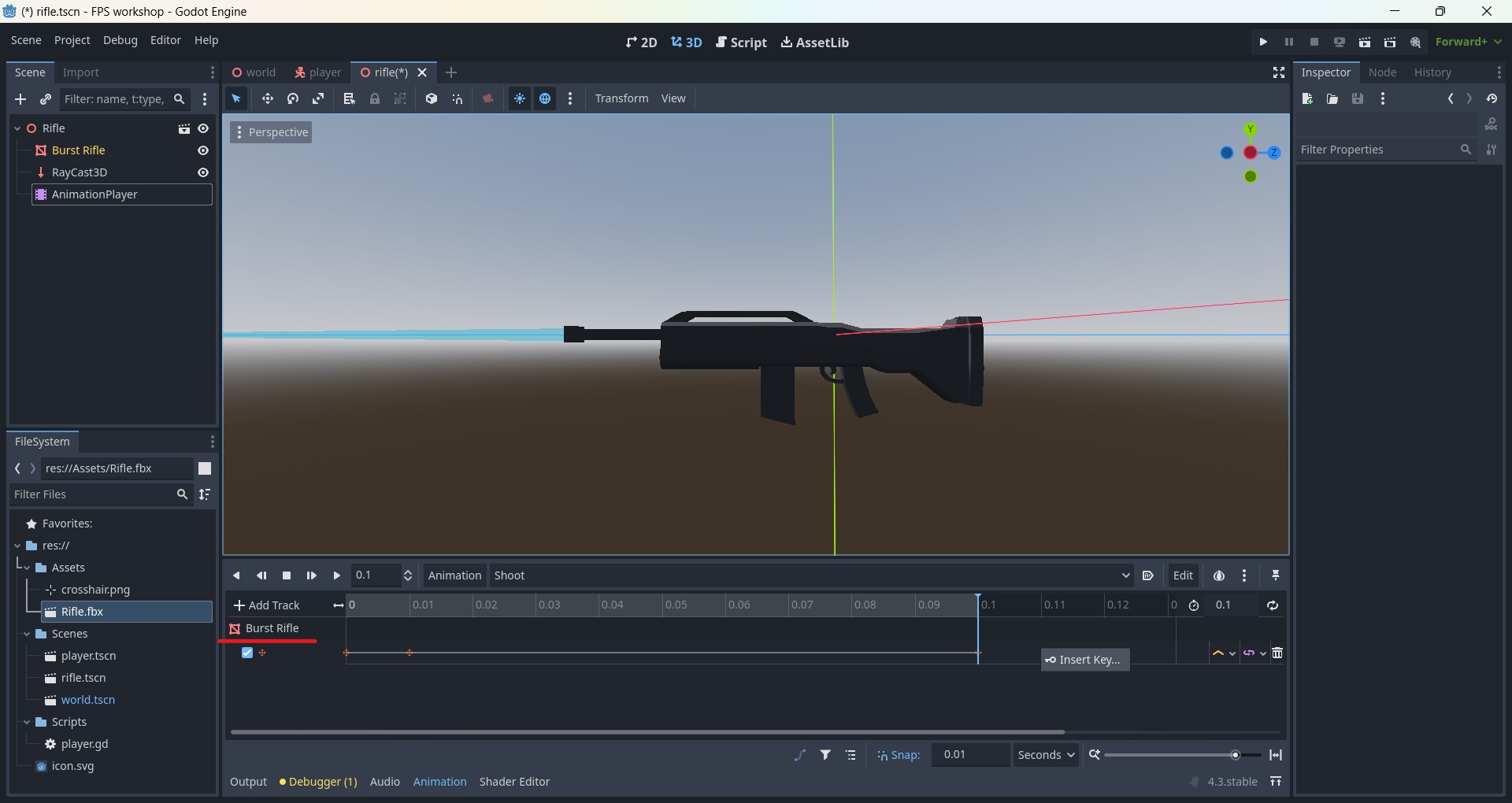

Add a new AnimationPlayer Node and create a new animation name it ‘Shoot'

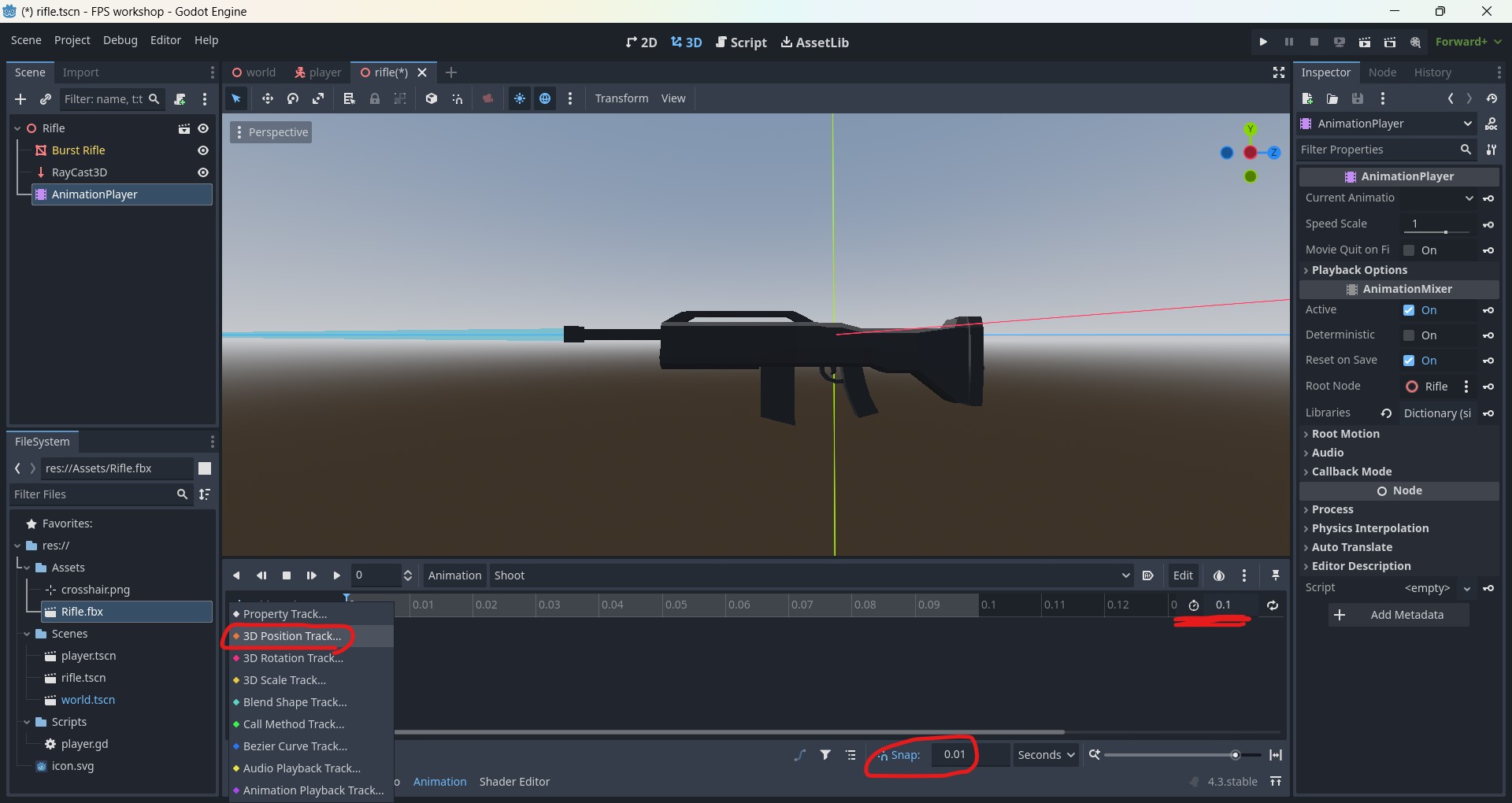

Add Mes the mesh's Position property into the animation, change animation duration to 0.1, and Snap to 0.01 seconds

Insert Keyframes

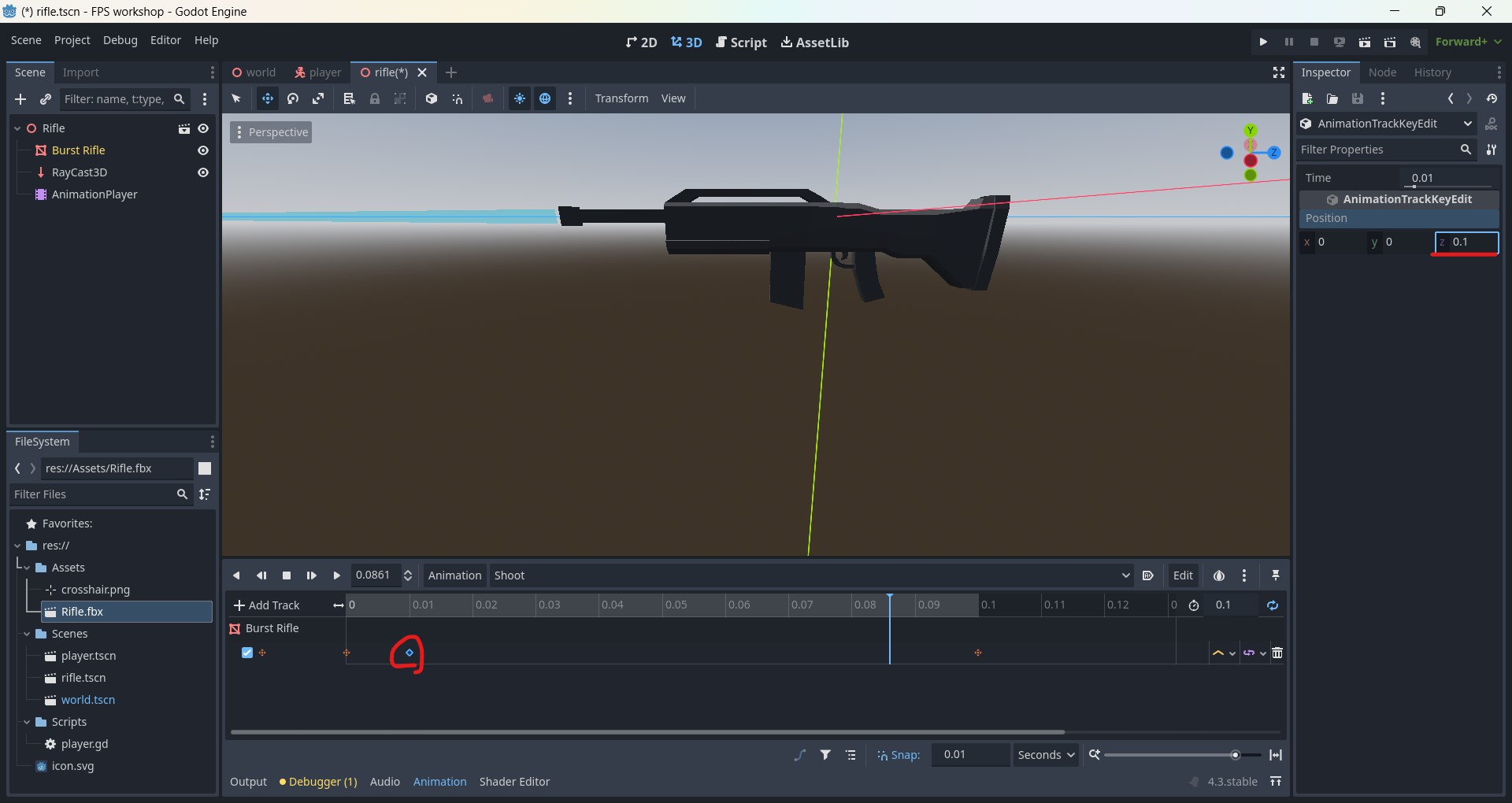

Change the middle keyframe, move the position in the positive Z direction by 0.1

Link the Gun/Rifle Scene (not .fbx) to the Player Scene

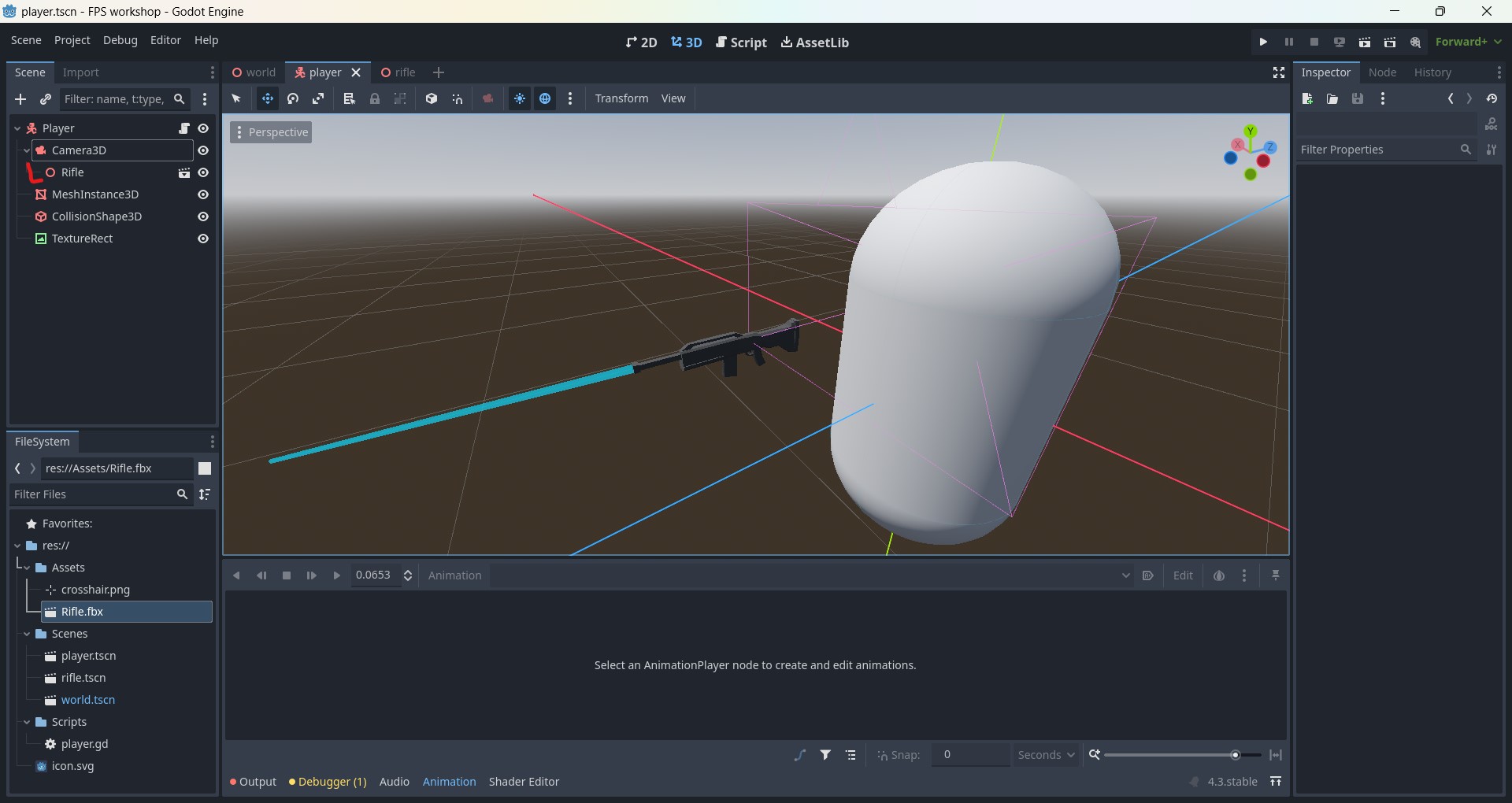

Move the Gun/Rifle Scene as the child of the Camera3D Node

CODE make the gun functional

At the top of the player script with the other variables
make a refernce to the rifle and the raycast

extends CharacterBody3D


const SPEED = 5.0
const JUMP_VELOCITY = 6.5
const MOUSE_SENSETIVITY = 0.1

# ADDED CODE
@onready var gun_anim = $Camera3D/Rifle/AnimationPlayer
@onready var gun_barrel = $Camera3D/Rifle/RayCast3D

Inside _physics_process function add this code

	## Handle Shooting
	if Input.is_action_pressed("shoot"):
		if !gun_anim.is_playing():
			gun_anim.play("Shoot")

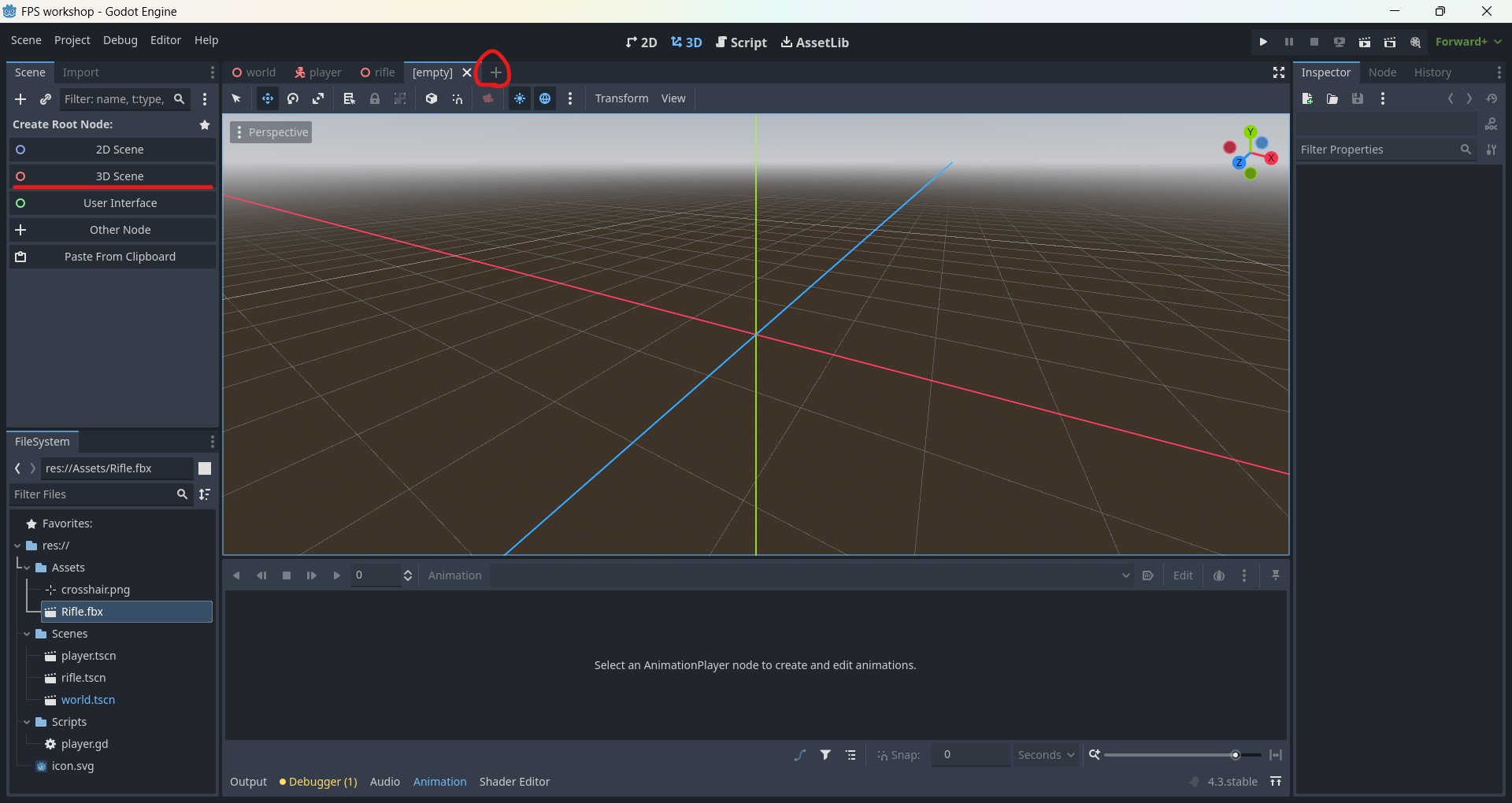

Create a new 3D scene rename it bullet

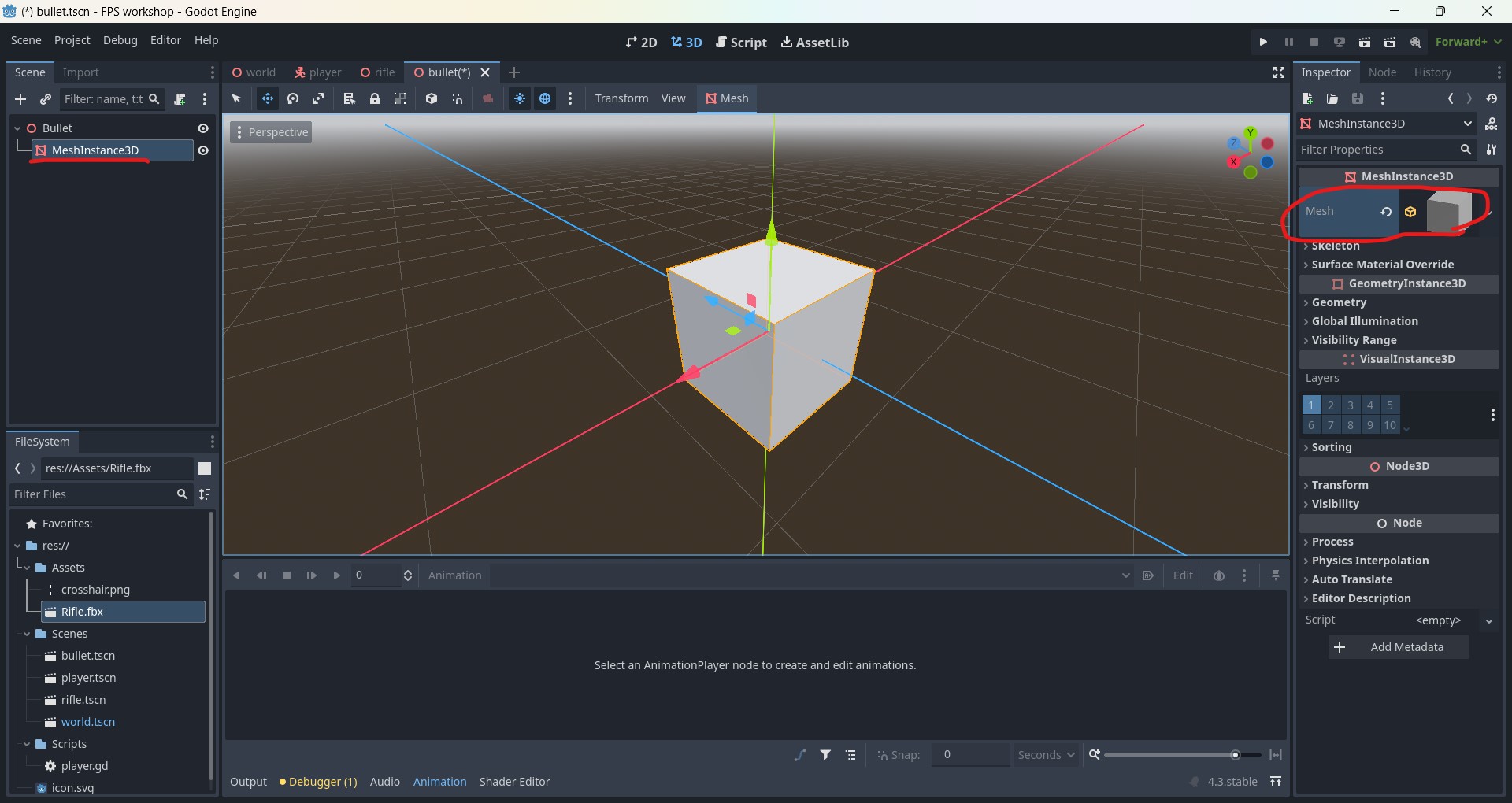

Add a cube mesh to the scene

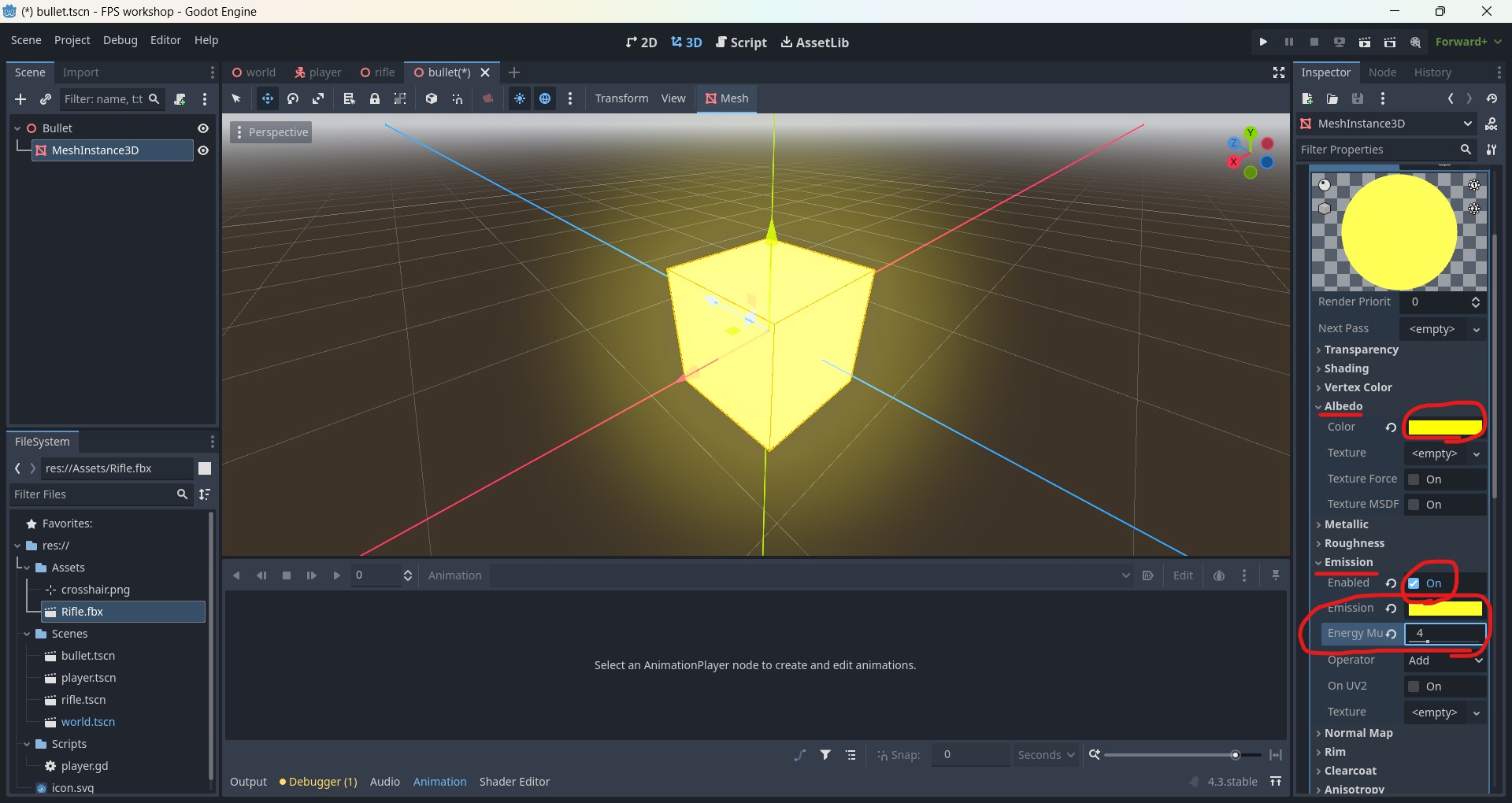

Add a new material to the cube, change the albedo and emission colors

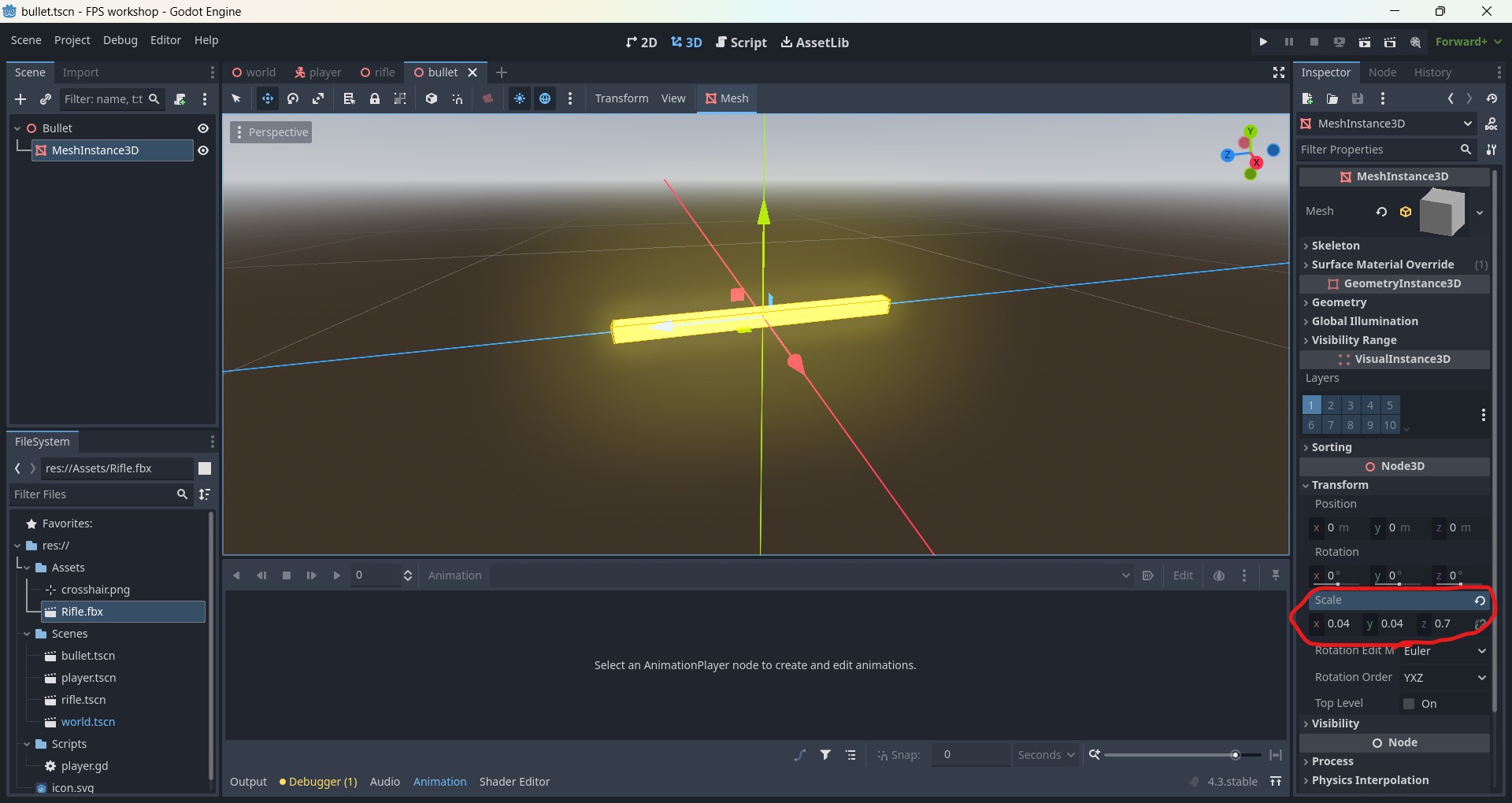

Change the scale of the cube to a more bullet like shape

Add RayCast3D and GPUParticles3D Node to the scene

Have the RayCast3D point towards -0.8 Z, and move it where the tip is barely in front of the shape

Hide all nodes except GPU Particle, Create a new cube particle

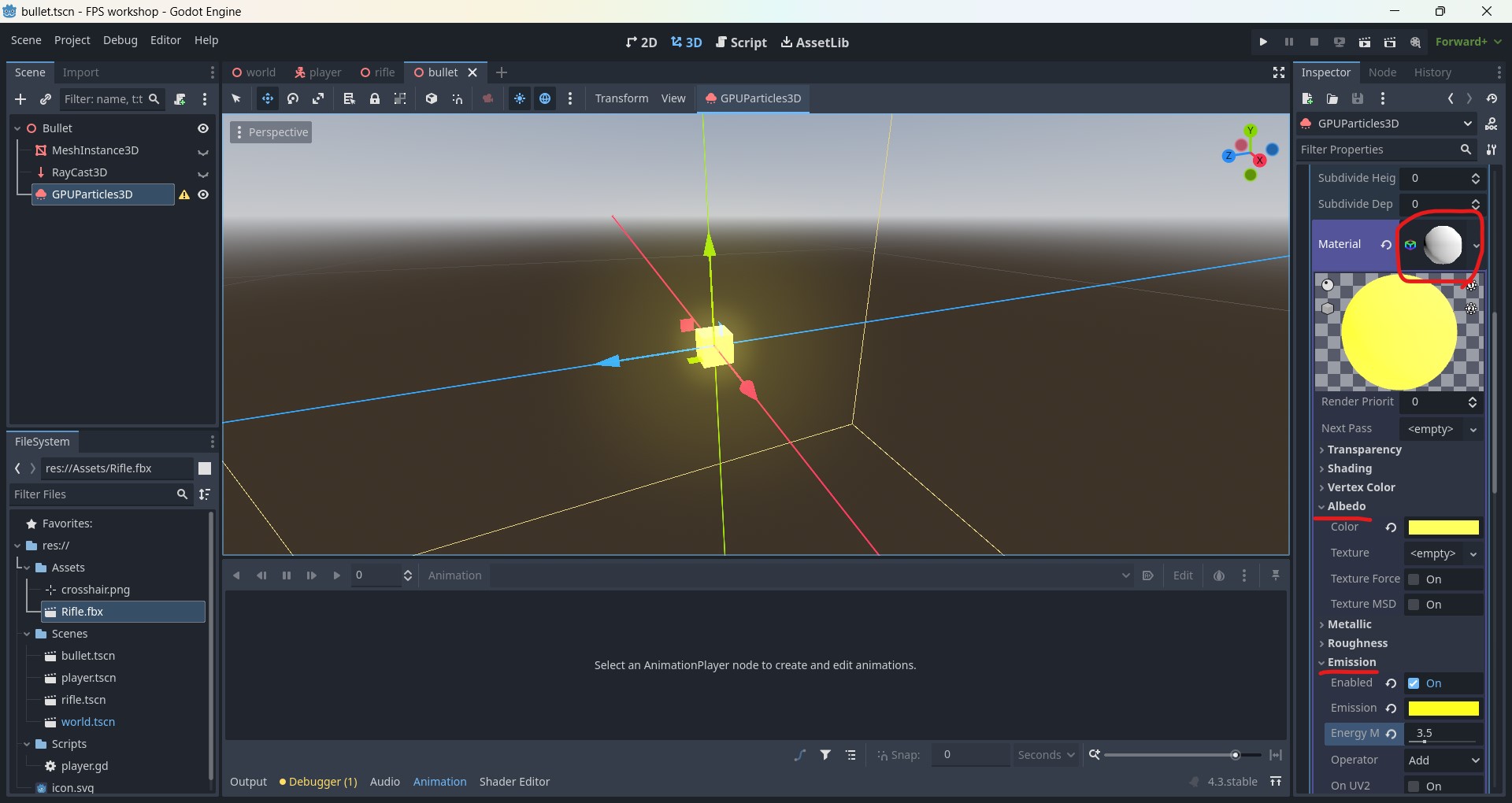

Change the Albedo and Emission of the particle

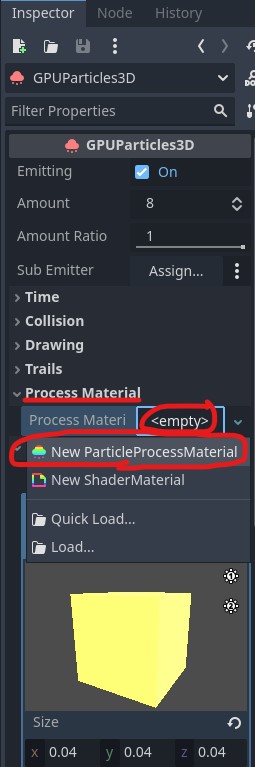

Create a new particle process

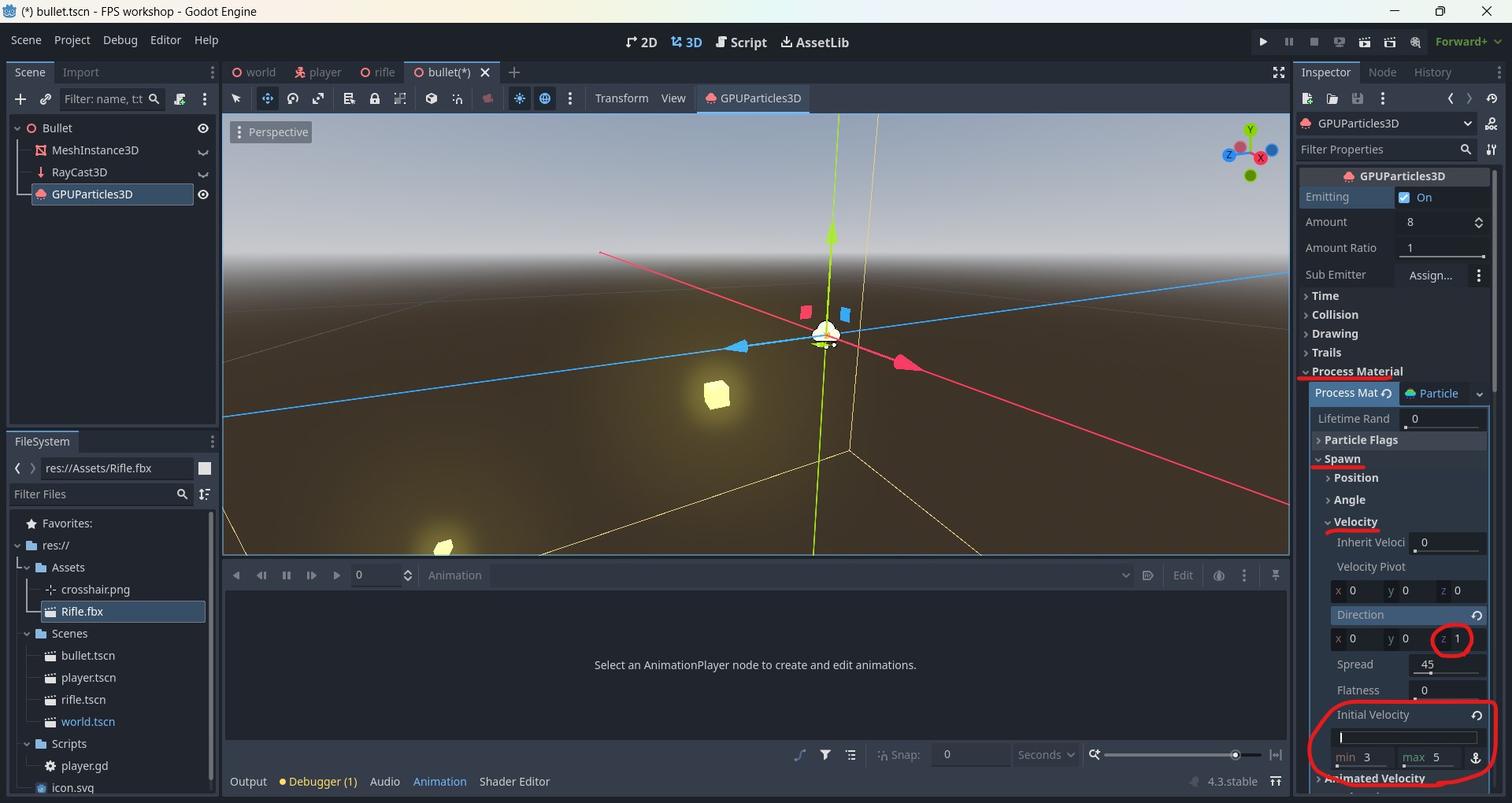

In Process Material, change the spawn properties

In Time, change the particle to One Shot and maximize explosiveness

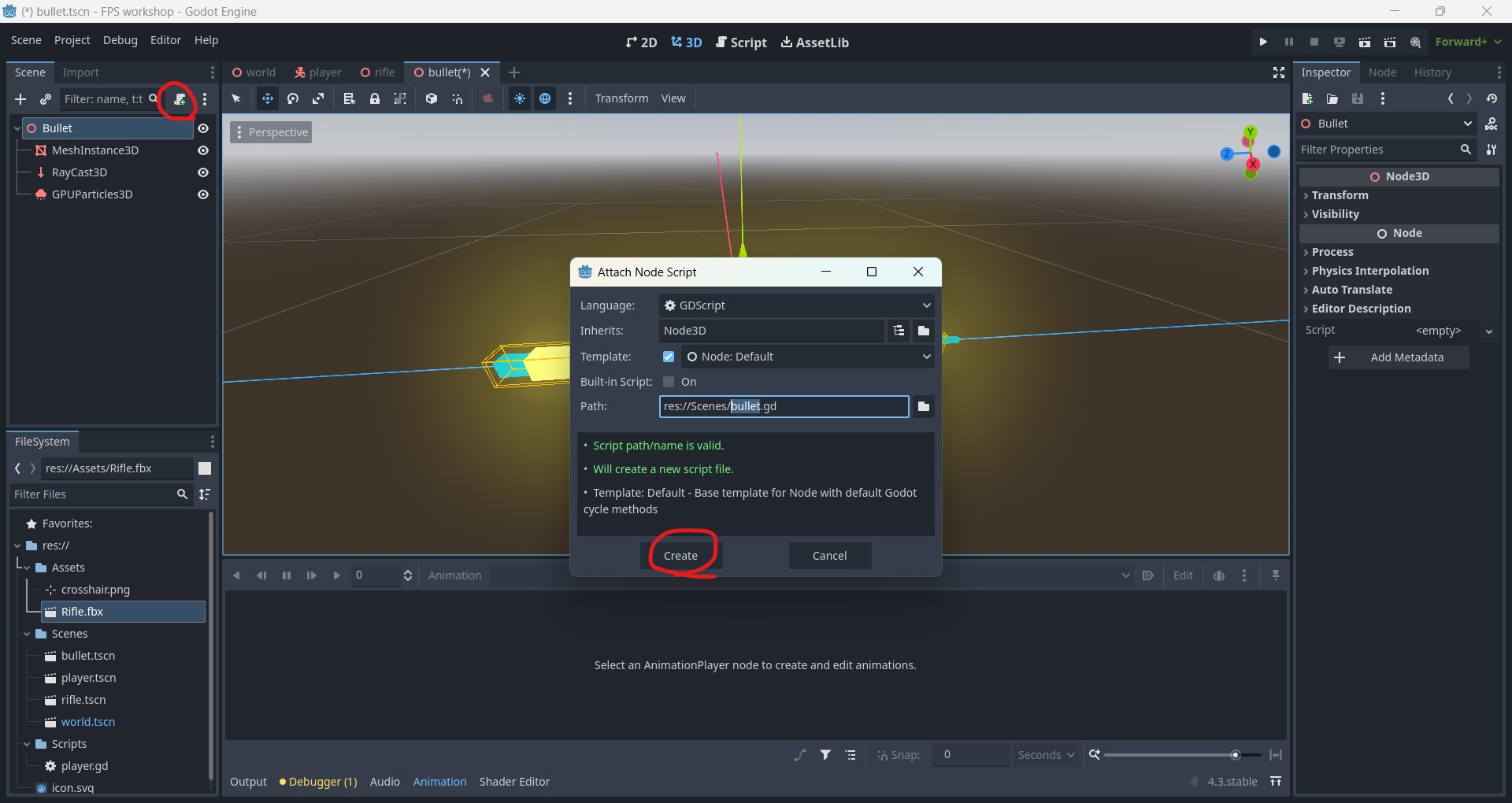

Create a new Bullet script

Add a Timer Node to the bullet

In the ‘player.gd' script

At the top with the gun_anim and gun_barrel variables add two new variables

var bullet = load("res://Scenes/bullet.tscn")
var instance

@onready var gun_anim = $Camera3D/Rifle/AnimationPlayer
@onready var gun_barrel = $Camera3D/Rifle/RayCast3D

Inside the ‘_physics_process', Handle Shooting section

	## Handle Shooting
	if Input.is_action_pressed("shoot"):
		if !gun_anim.is_playing():
			gun_anim.play("Shoot")

			instance = bullet.instantiate()
			instance.position = gun_barrel.global_position
			instance.transform.basis = gun_barrel.global_transform.basis

			get_parent().add_child(instance)

In the bullet.gd script

extends Node3D

const SPEED = 40.0

@onready var mesh = $MeshInstance3D
@onready var ray = $RayCast3D

@onready var particle = $GPUParticles3D

# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta: float) -> void:
	position += transform.basis * Vector3(0,0, -SPEED) * delta

	if ray.is_colliding():
		mesh.visible = false
		particle.emitting = true

		await get_tree().create_timer(1.0).timeout
		queue_free()


func _on_timer_timeout() -> void:
	queue_free()

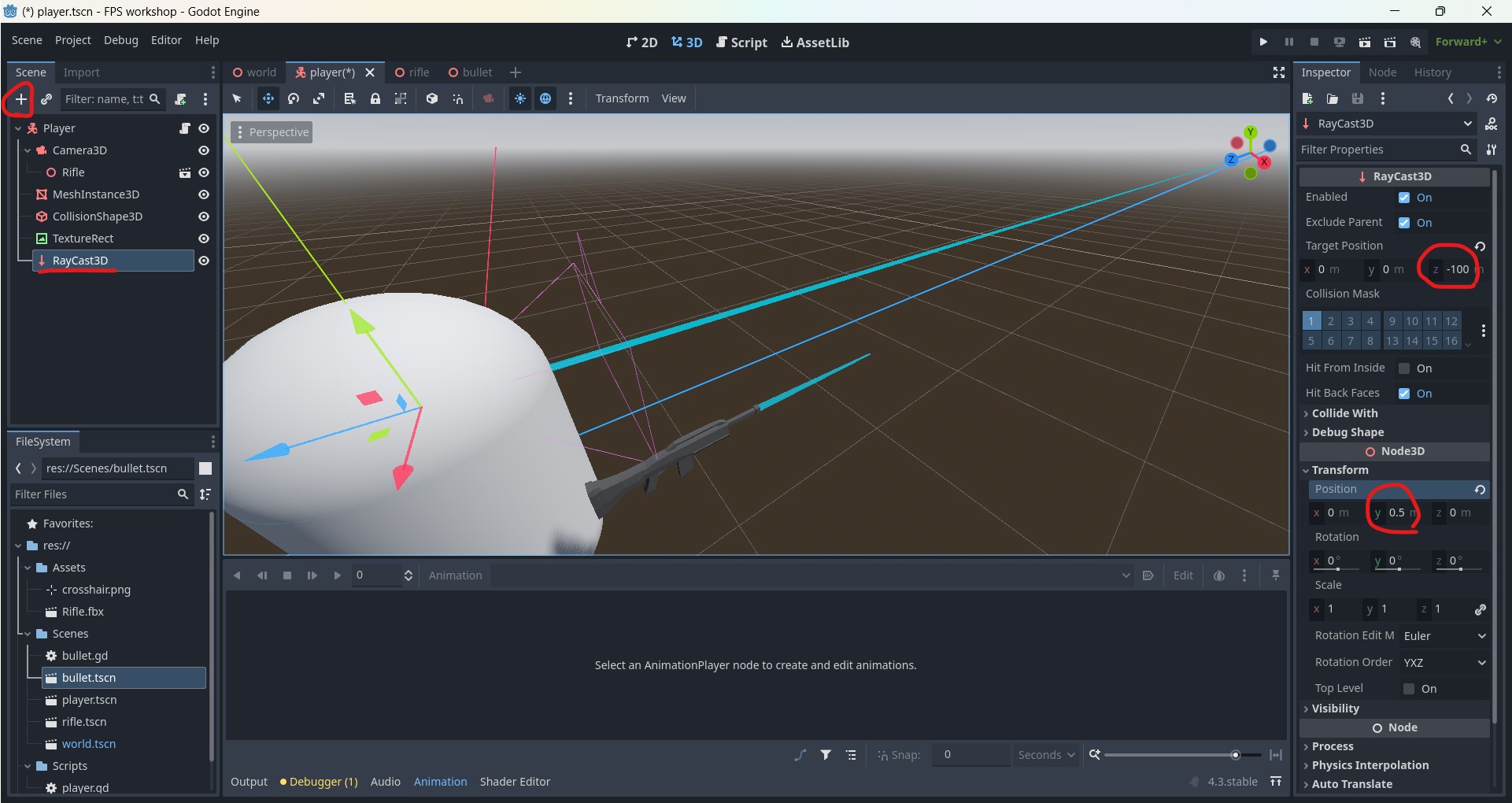

Add a new RayCast3D to the Player

Inside ‘player.gd' script

Add a new variable referencing the Player's ray

var bullet = load("res://Scenes/bullet.tscn")
var instance
@onready var gun_anim = $Camera3D/Rifle/AnimationPlayer
@onready var gun_barrel = $Camera3D/Rifle/barrel

@onready var player_ray = $RayCast3D

Inside ‘_physics_process' in shooting section

Replace the instance.transform.basis = gun_barrel.global_transform.basis piece of code with

	var hit_point = player_ray.global_transform.origin + (-player_ray.global_transform.basis.z * 40.0)
	var dir = (hit_point - gun_barrel.global_position).normalized()

	if player_ray.is_colliding():
		hit_point = player_ray.get_collision_point()
		dir = (hit_point - gun_barrel.global_position).normalized()

	instance.transform.basis = Basis().looking_at(dir, Vector3.UP)

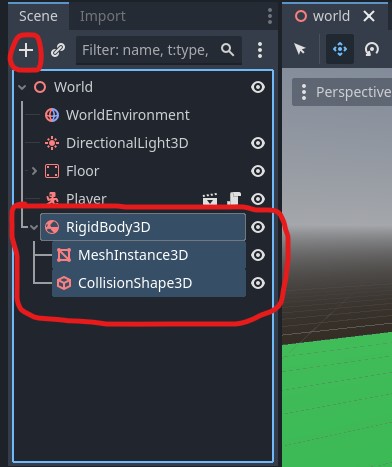

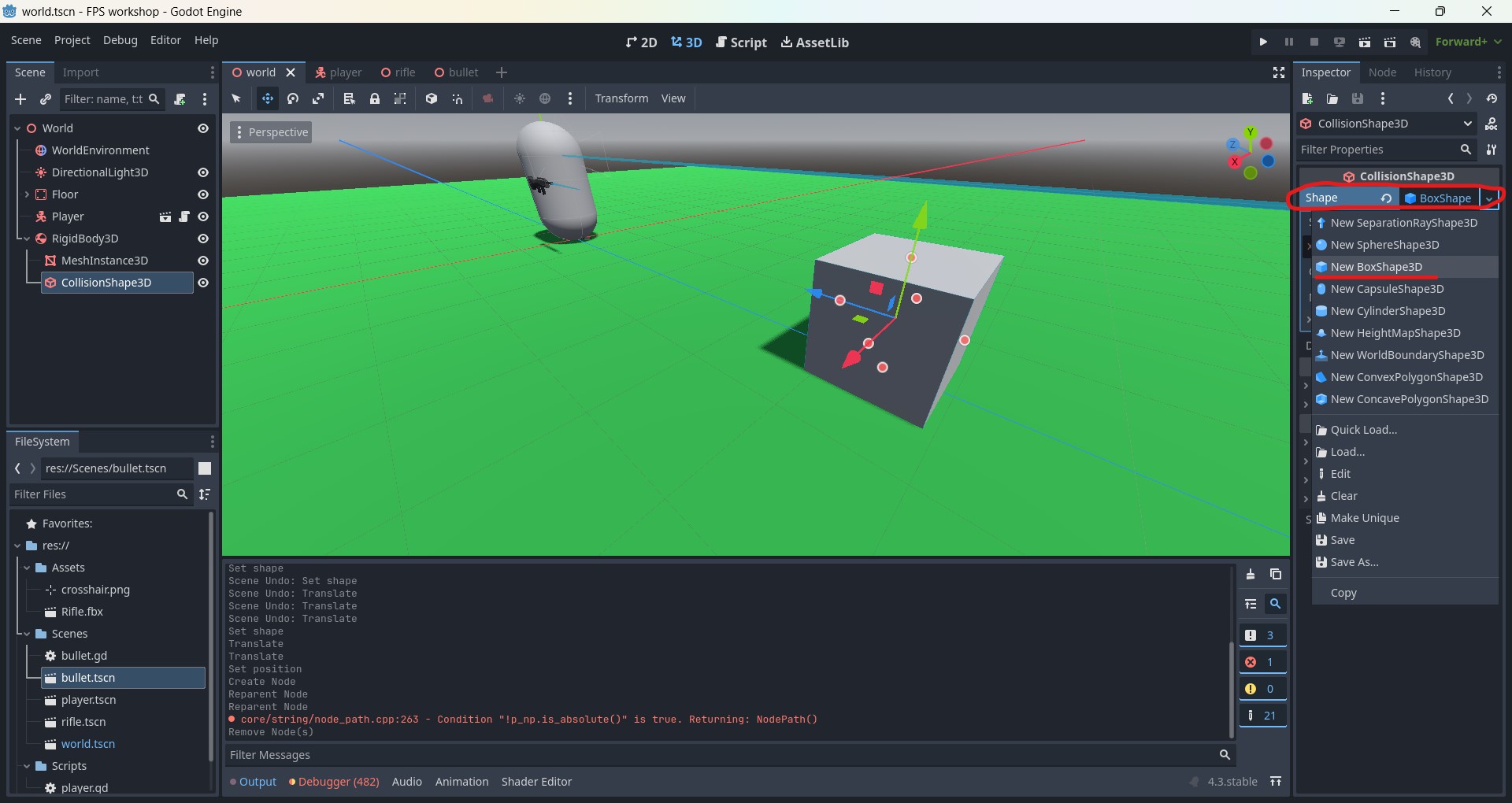

Add a new RigidBody3D Object with mesh and collider

Give the mesh and collider a box mesh and collider

Inside ‘bullet.gd' _process function add the new code

func _process(delta: float) -> void:
	position += transform.basis * Vector3(0,0, -SPEED) * delta

	if ray.is_colliding():
		mesh.visible = false
		particle.emitting = true

		## NEW CODE ADDED HERE
		var collider = ray.get_collider()
		if collider is RigidBody3D:
			print("Hit RigidBody3D")
			collider.apply_impulse((transform.basis * Vector3(0, 0, -1)).normalized() * 3)
        #elif collider is Enemy:
		#	collider.takeDmg(1)
		### NEW CODE END

		await get_tree().create_timer(1.0).timeout
		queue_free()

Adding a simple enemy

Create a new Scene with CharacterBody3D as the base node

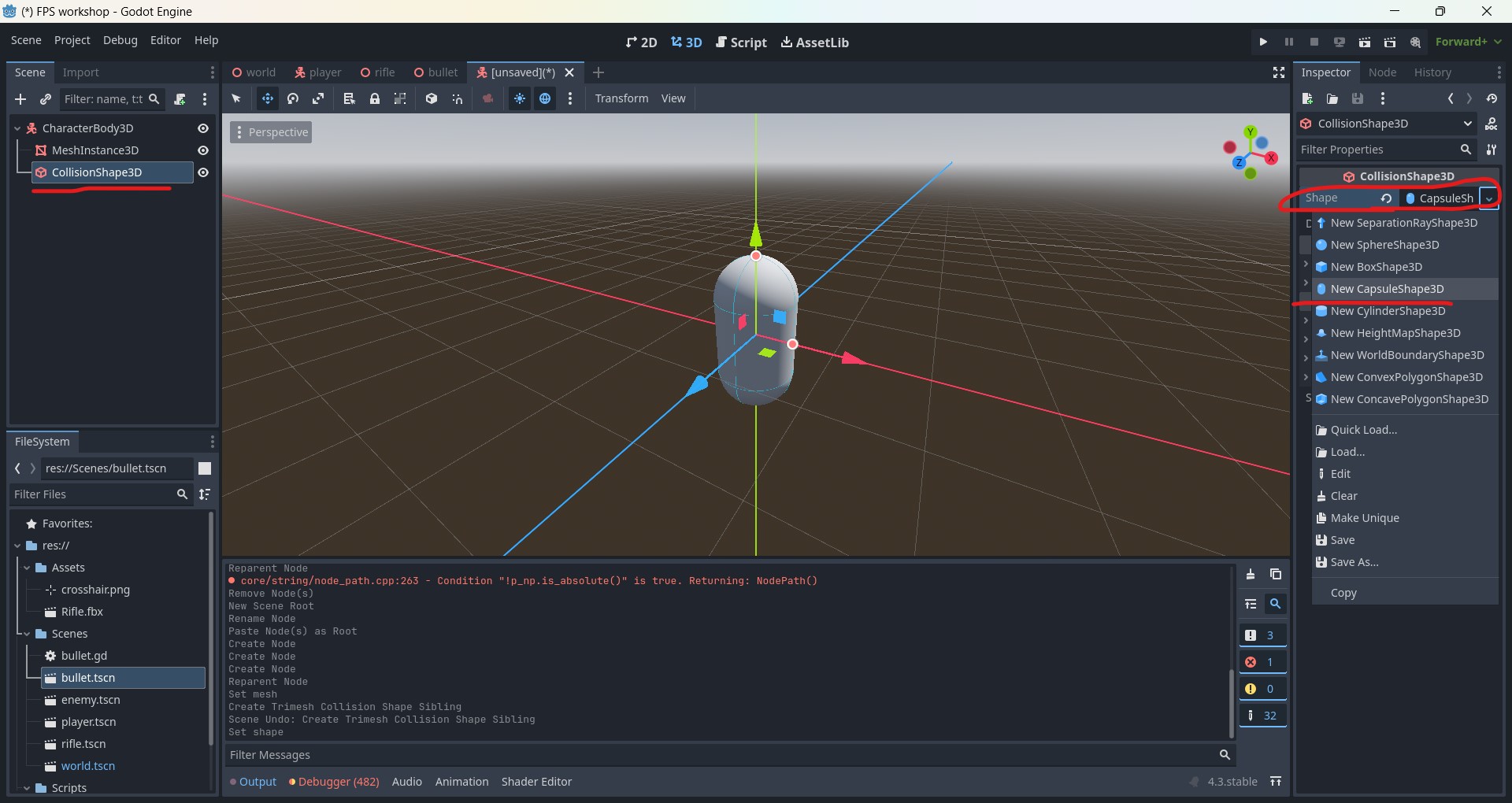

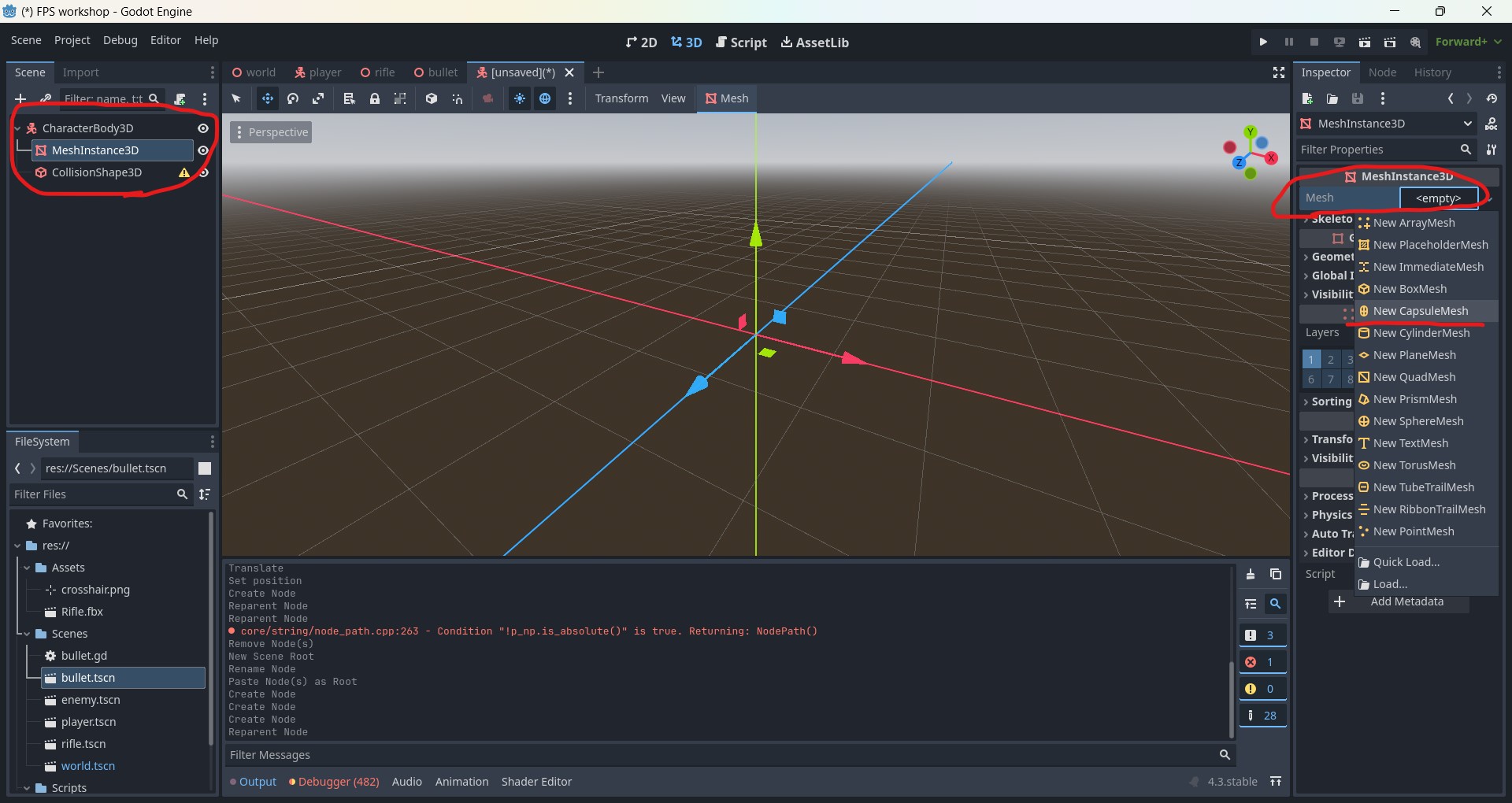

Add mesh and collider to the CharacterBody3D and make the shape be capsule on both

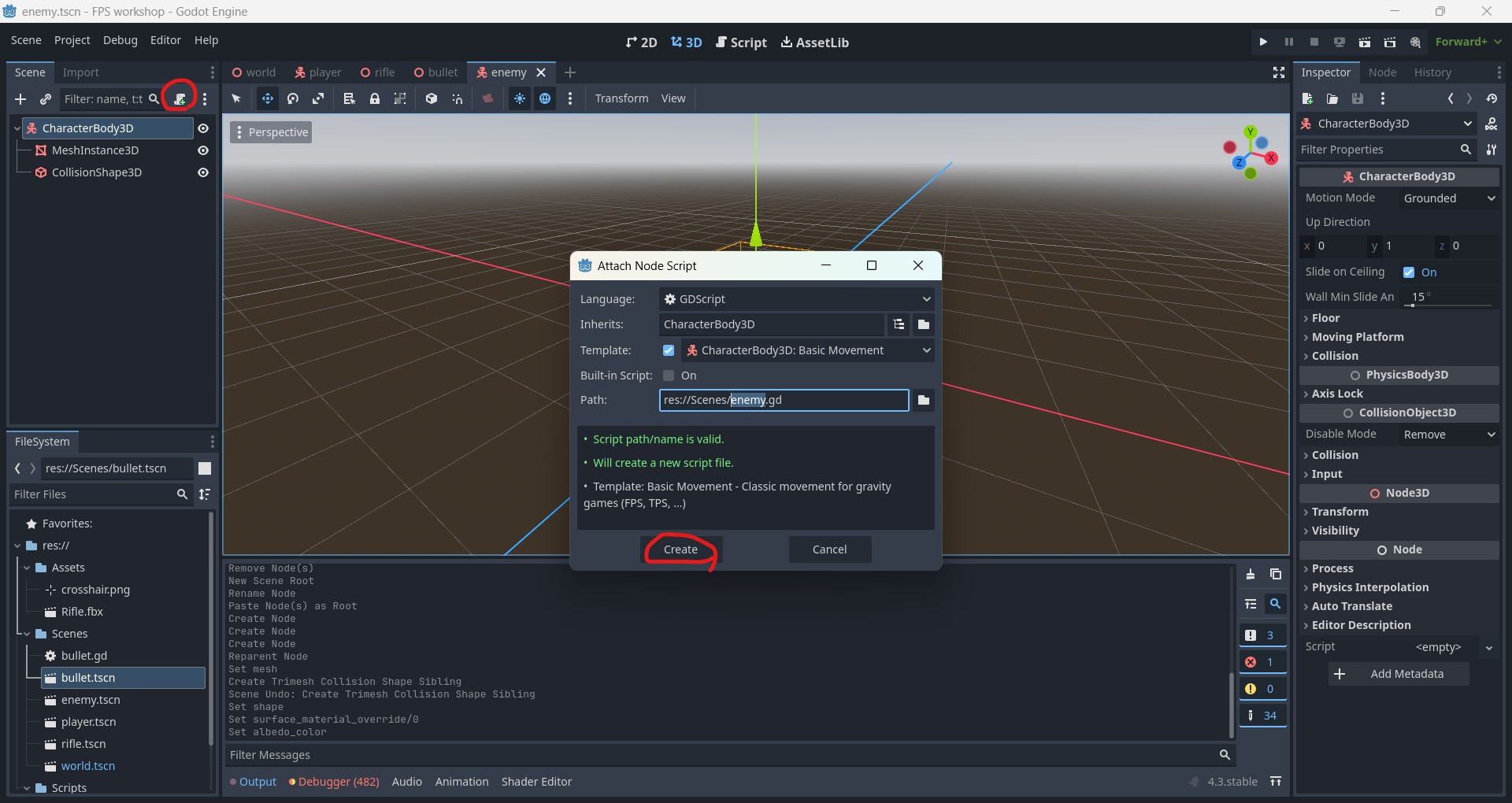

Create a new enemy.gd script

Code for the simple enemy

class_name Enemy
extends CharacterBody3D

var currentHP = 50

func takeDmg(dmg: int) -> void:
	currentHP = currentHP -1
	print(currentHP)

	if currentHP <= 0:
		queue_free()

In the bullet.gd script uncomment the elif statement with the Enemy in it

The could should look like this

	var collider = ray.get_collider()
	if collider is RigidBody3D:
		print("Hit RigidBody3D")
		collider.apply_impulse((transform.basis * Vector3(0, 0, -1)).normalized() * 3)
	elif collider is Enemy:
		collider.takeDmg(1)
