Table of Contents

1. Overview
2. Preqreusits, Downloading stuff

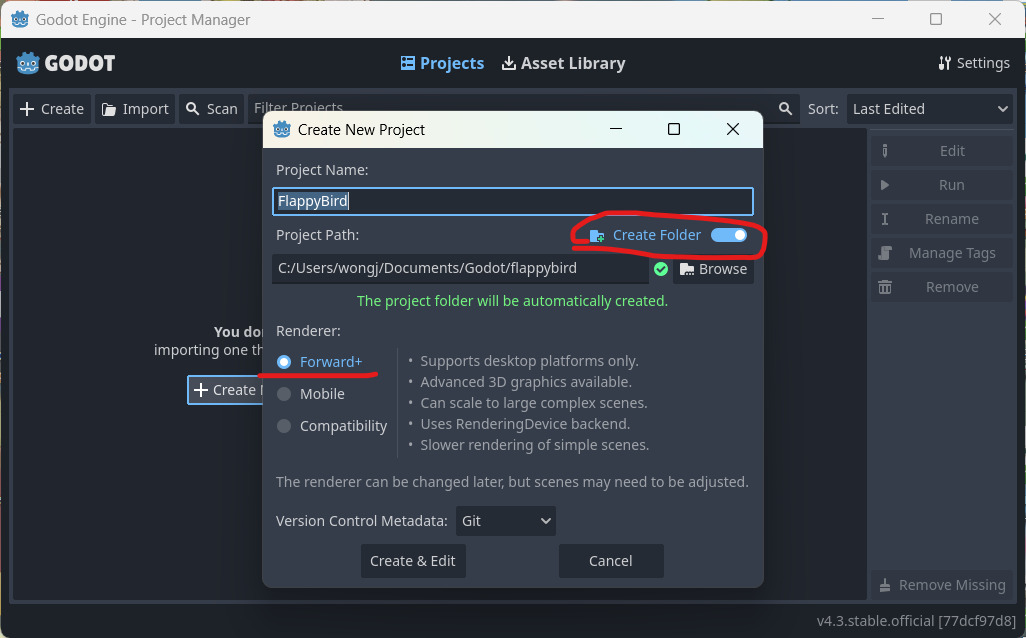

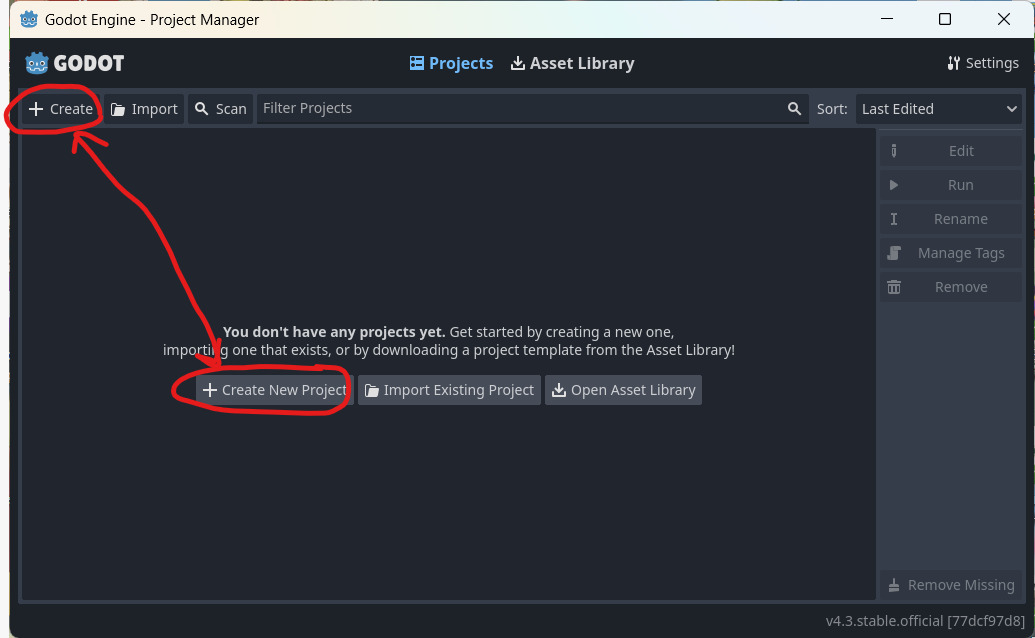

3. Create new project
4. Create new Scene
5. Create Bird
6. Create Ground
7. Linking Bird and Ground to Scene
8. Create Pipes
9. Linking Pipes and Ground
10. Changing Draw Order and Score
11. Do top and ground checks
12. Game Over
13. Final Scripts (TO UNLEASH YOUR ULTIMATE TECHNIQUES)
14. YIIPEEEE!!1!11!!!!

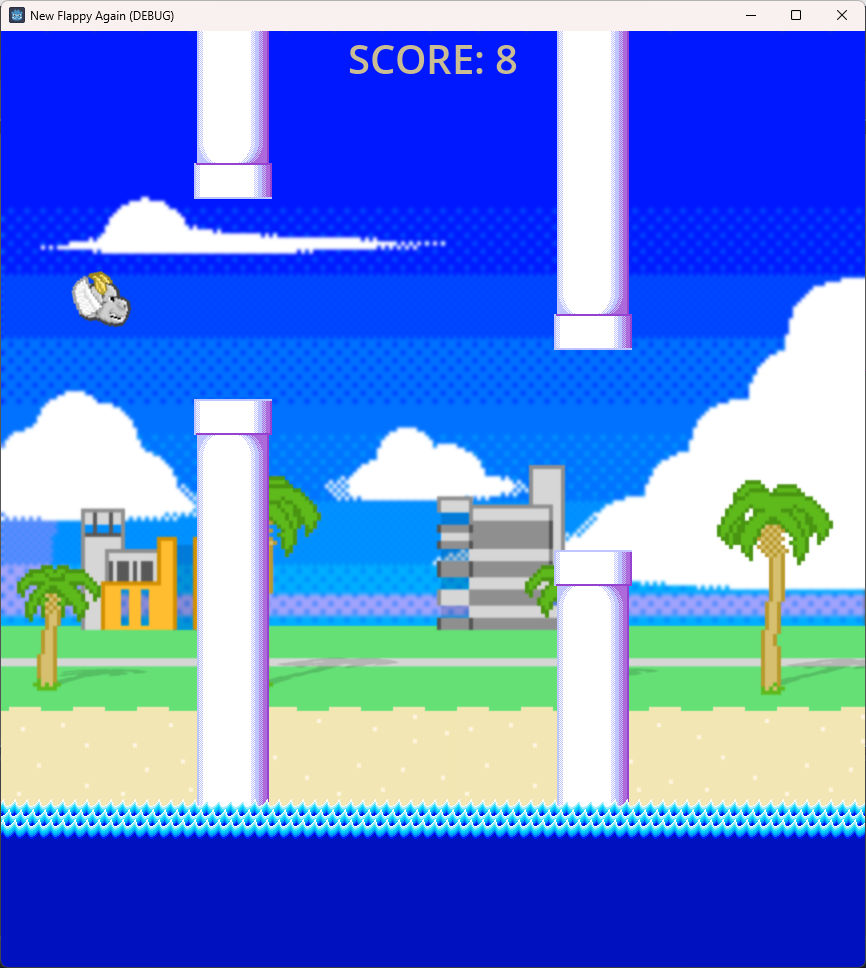

Finished Project

Download Godot

Click Here to Dowload Godot

Download our Assets

Click here to Download our Assets

Run the correct Godot

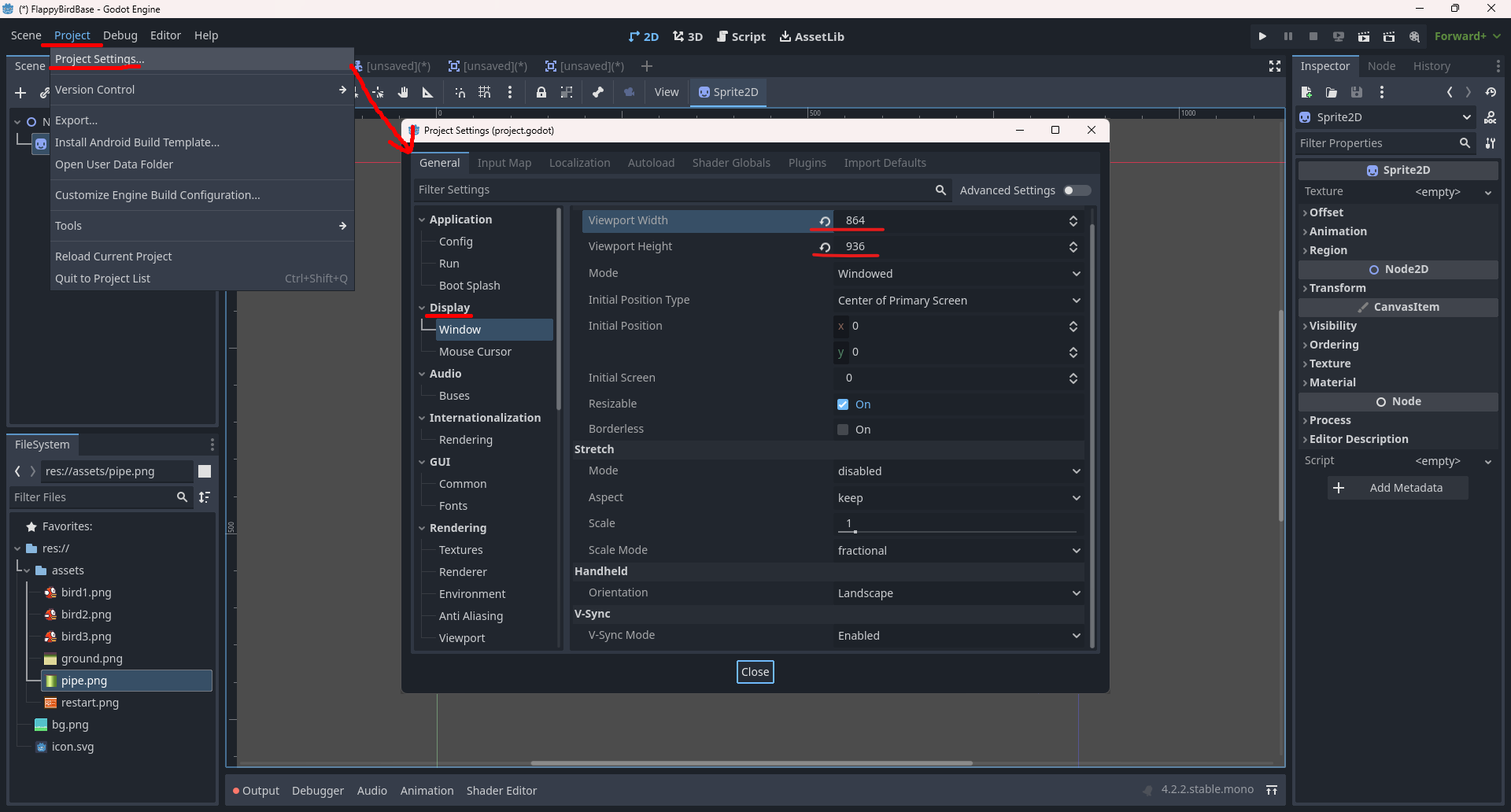

Resize Game Window (Width: 864, Height: 936)

Create new Scene with Node (NOT Node2D) and a child with Sprite2D

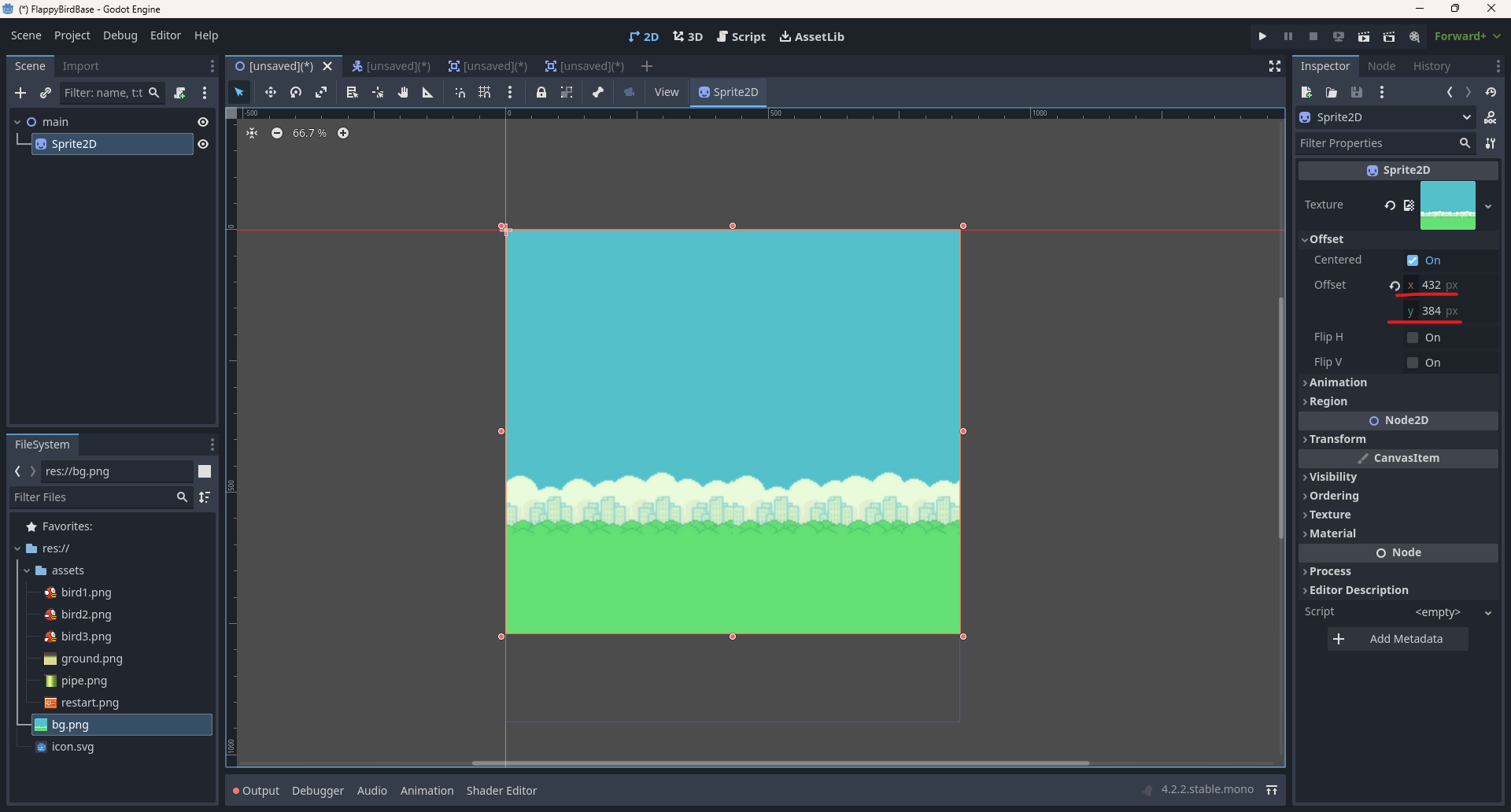

Drag background image to Sprite2D and add offset (X: 432, Y: 384)

Create new Scene (name it Bird)

Add Character Body2D

• Animated Sprite 2D
• Collision Shape 2D

Animate the Sprite, and Adjust the Collision shape

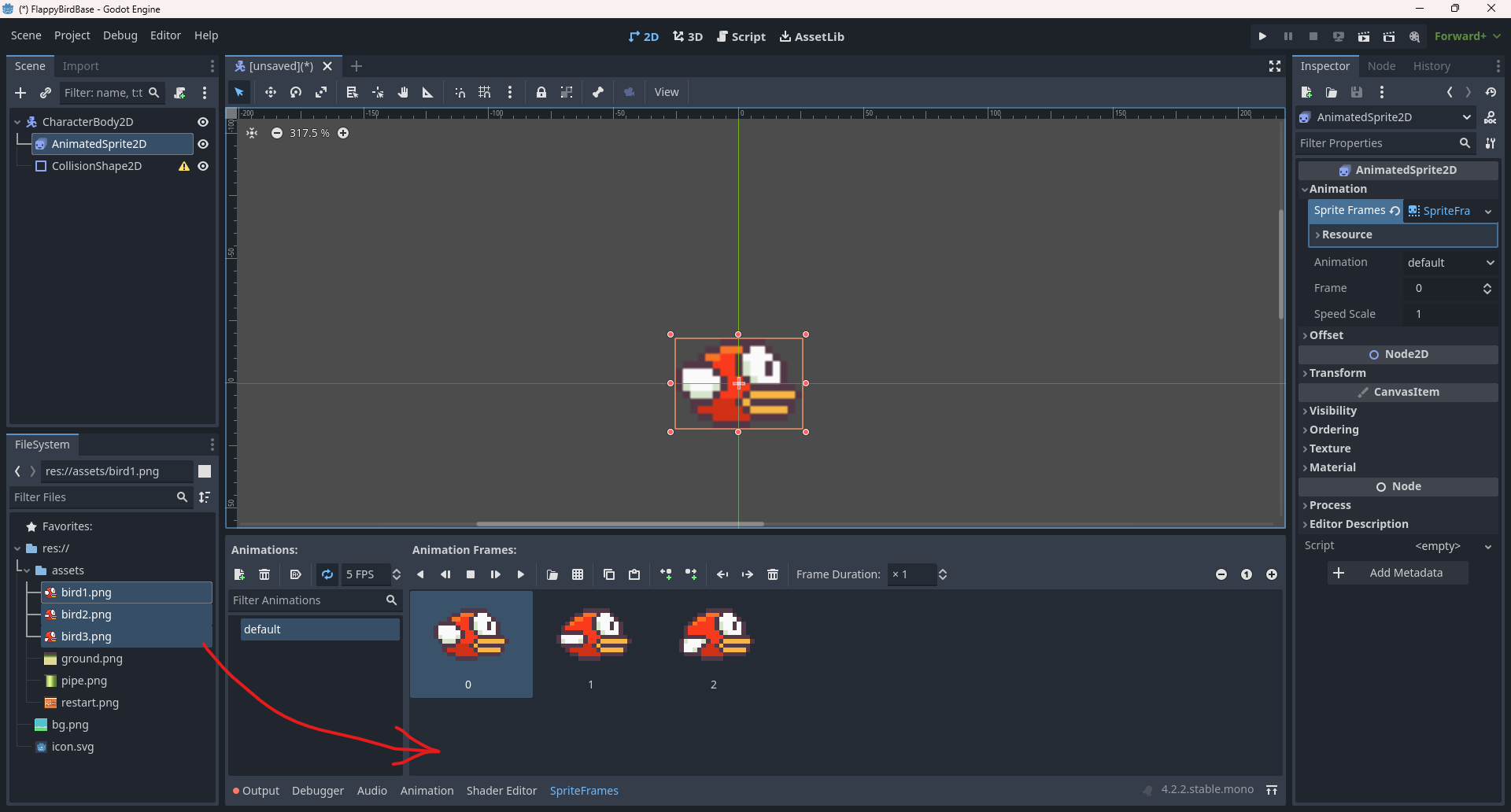

In AnimationSprite2D add new Animation and Drag bird to animator
(if using Rocky, adjust scale by 1.618)

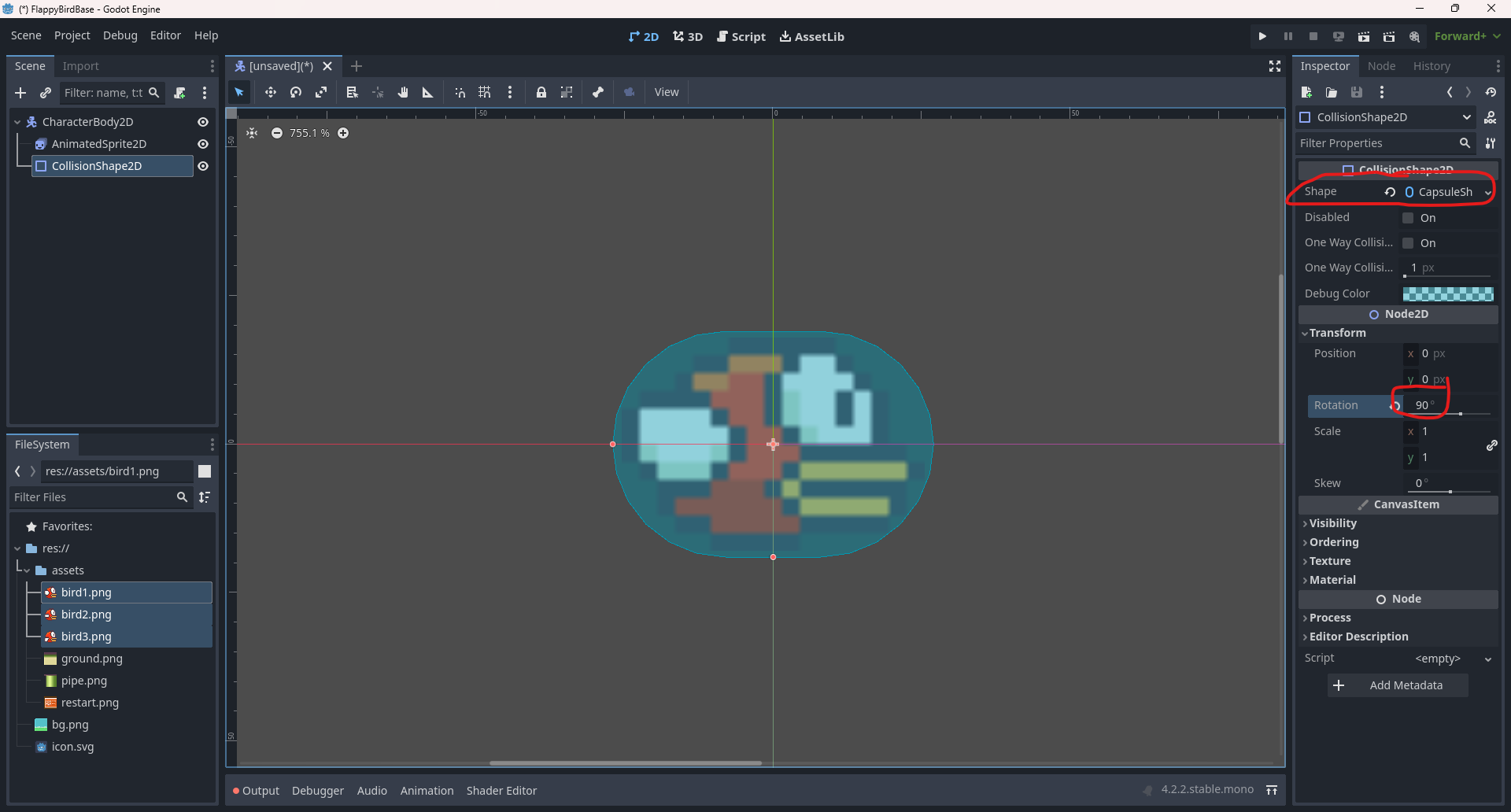

Add Capsule Colider to bird

Create a new Script

extends CharacterBody2D

# Global Variables
const GRAVITY: int = 1800
const MAX_VEL: int = 600
const START_POS = Vector2(100,400)
const FLAP_SPEED: int = -500
var flying: bool = false
var falling: bool = false


func _ready():
	reset()

func reset():
	falling = false
	flying = false
	position = START_POS
	set_rotation(0)

# Function that runs while game is running (Game loop)
func _physics_process(delta):
	if flying or falling:
		velocity.y += GRAVITY * delta

		if velocity.y > MAX_VEL:
			velocity.y = MAX_VEL
		if flying:
			set_rotation (deg_to_rad(velocity.y * 0.05))
			$AnimatedSprite2D.play()
		elif falling:
			set_rotation(PI/2)
			$AnimatedSprite2D.stop()
		move_and_collide(velocity * delta)
	else:
		$AnimatedSprite2D.stop()

func flap():
	velocity.y = FLAP_SPEED

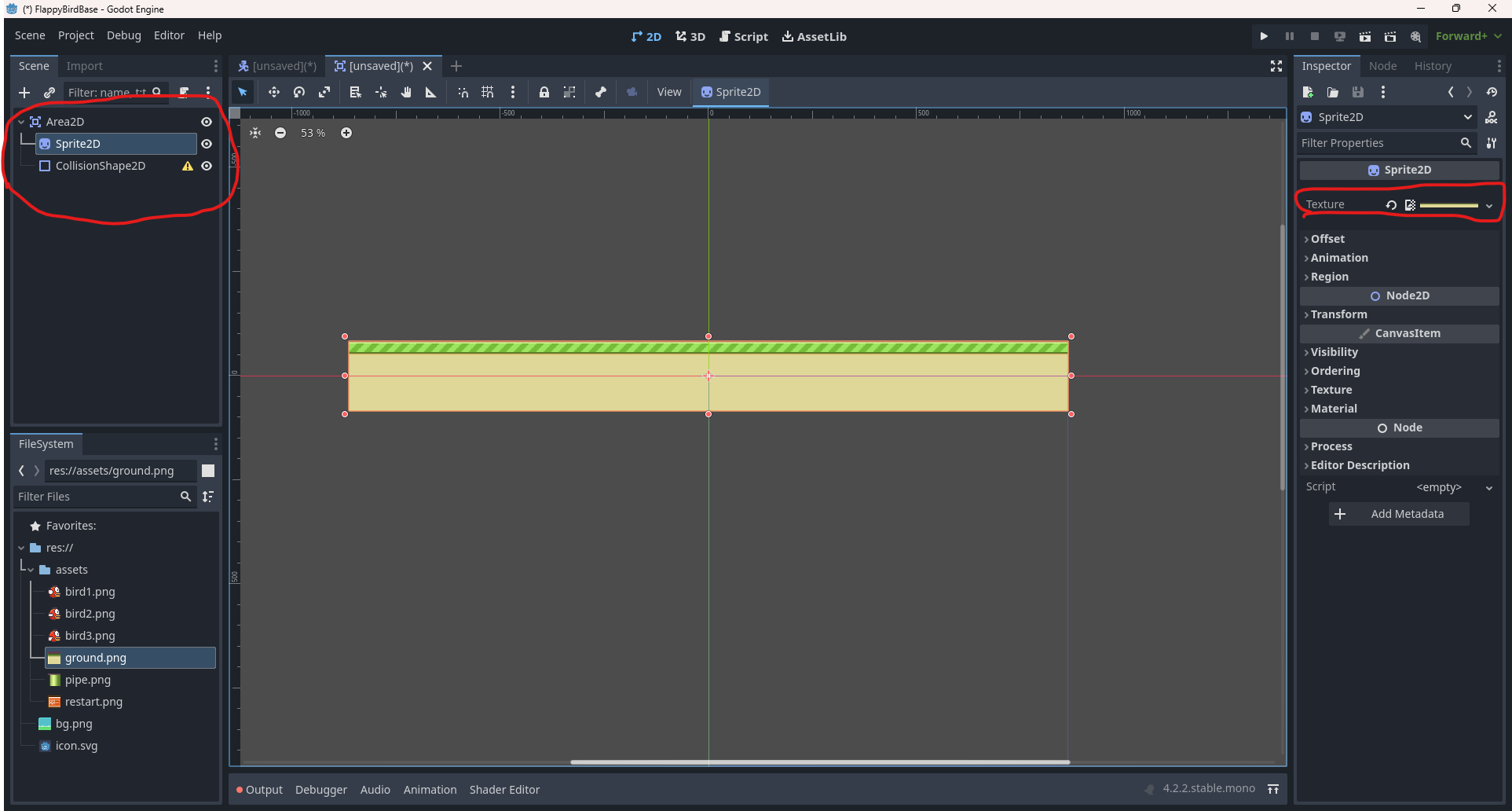

Adding Area2D node

• Sprite 2D
• CollisionShape2D

Add Sprite and collision shape

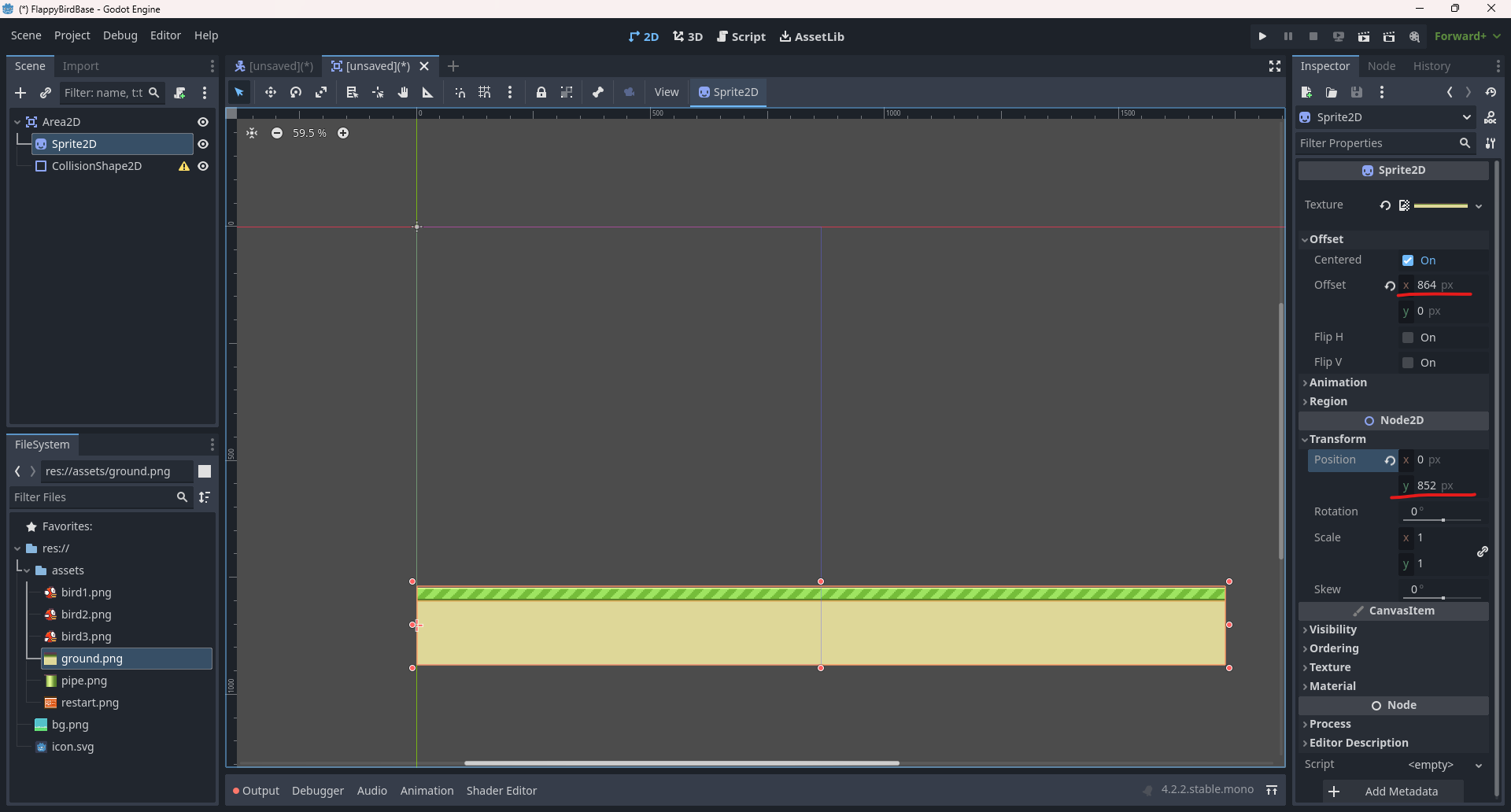

Offset X by 864, Position Transform Y by 852

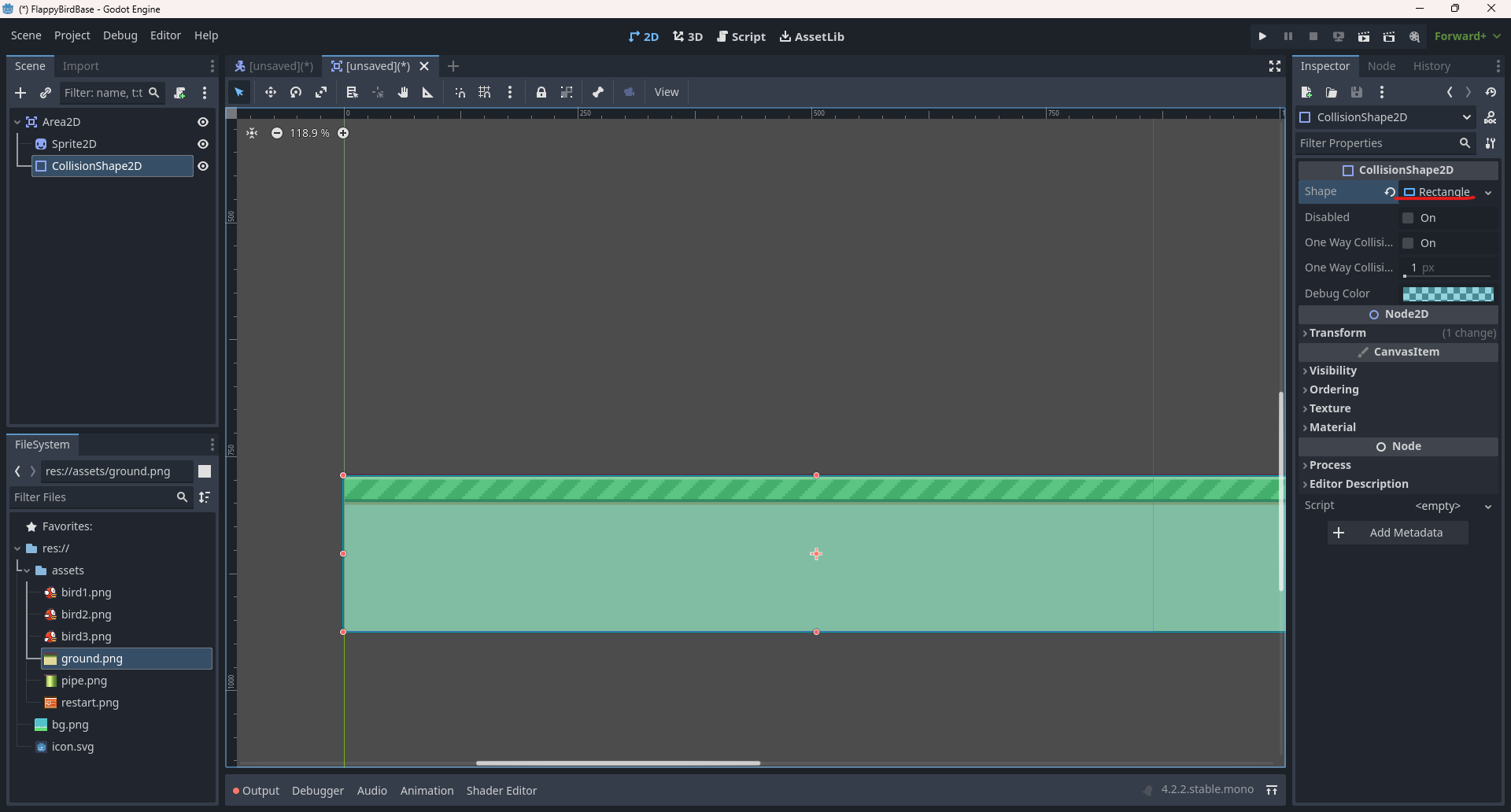

Add Rectangular Collision

Script for Ground (ground.gd)

extends Area2D

signal hit

func _on_body_entered(body):
	hit.emit()

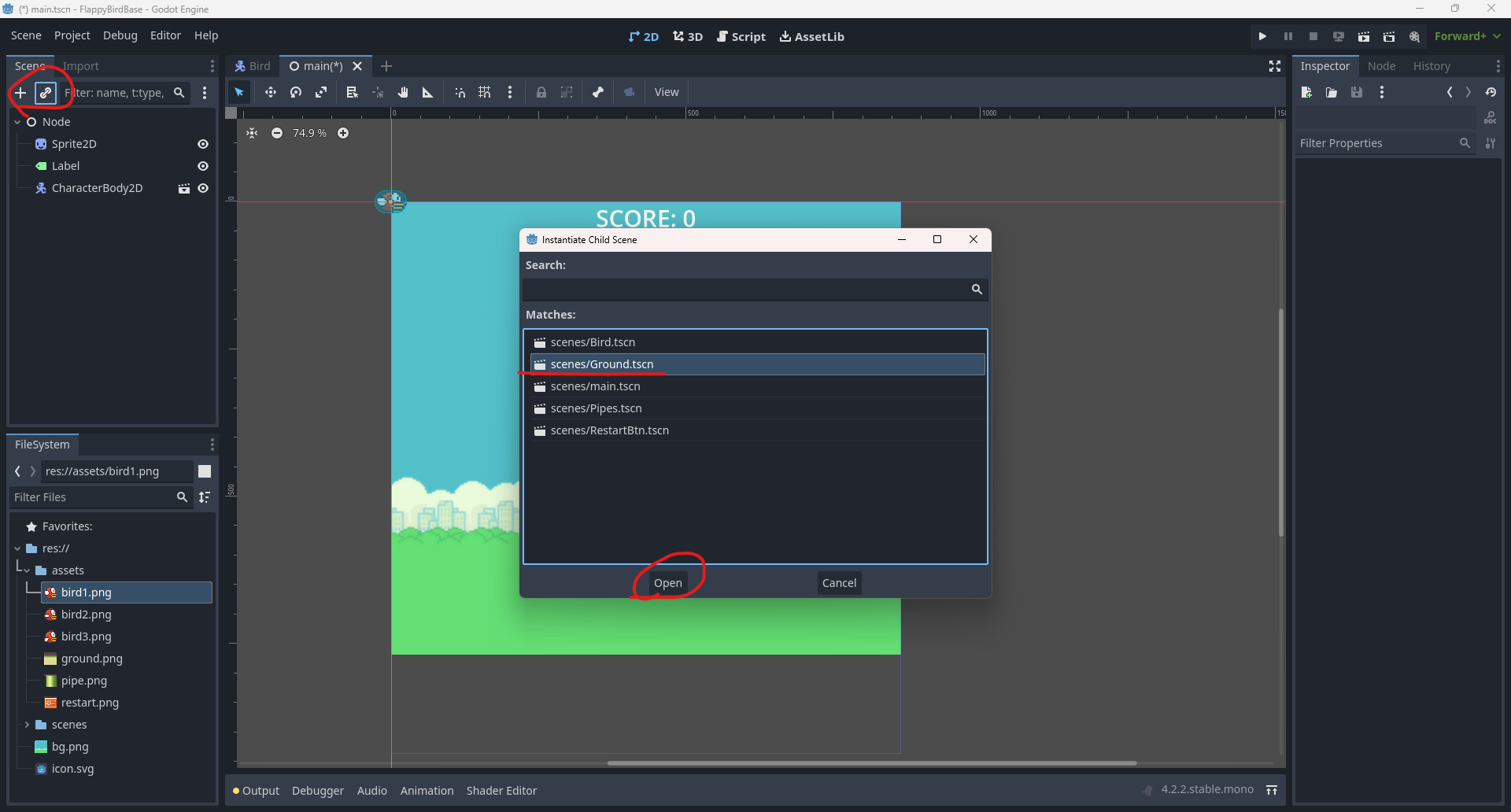

Linking Bird to Main

Linking Ground to Main

Coding main.gd

extends Node

var game_running: bool
var game_over: bool
var scroll
var score
const SCROLL_SPEED: int = 4
var screen_size: Vector2i
var ground_height: int
var pipes: Array
const PIPE_DELAY: int = 100
const PIPE_RANGE: int = 200


# Called when the node enters the scene tree for the first time.
func _ready():
	screen_size = get_window().size
	ground_height = $Ground.get_node("Sprite2D").texture.get_height()
	new_game()

func new_game():
	game_running = false
	game_over = false
	score = 0
	scroll = 0
	$Bird.reset()

func _input(event):
	if (game_over) == false:
		if event is InputEventMouseButton:
			if event.button_index == MOUSE_BUTTON_LEFT and event.pressed:
				if game_running == false:
					start_game()
				else:
					if $Bird.flying:
						$Bird.flap()

func start_game():
	game_running = true
	$Bird.flying = true
	$Bird.flap()

# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta):
	if game_running:
		scroll += SCROLL_SPEED

		if scroll >= screen_size.x:
			scroll = 0

		$Ground.position.x = -scroll

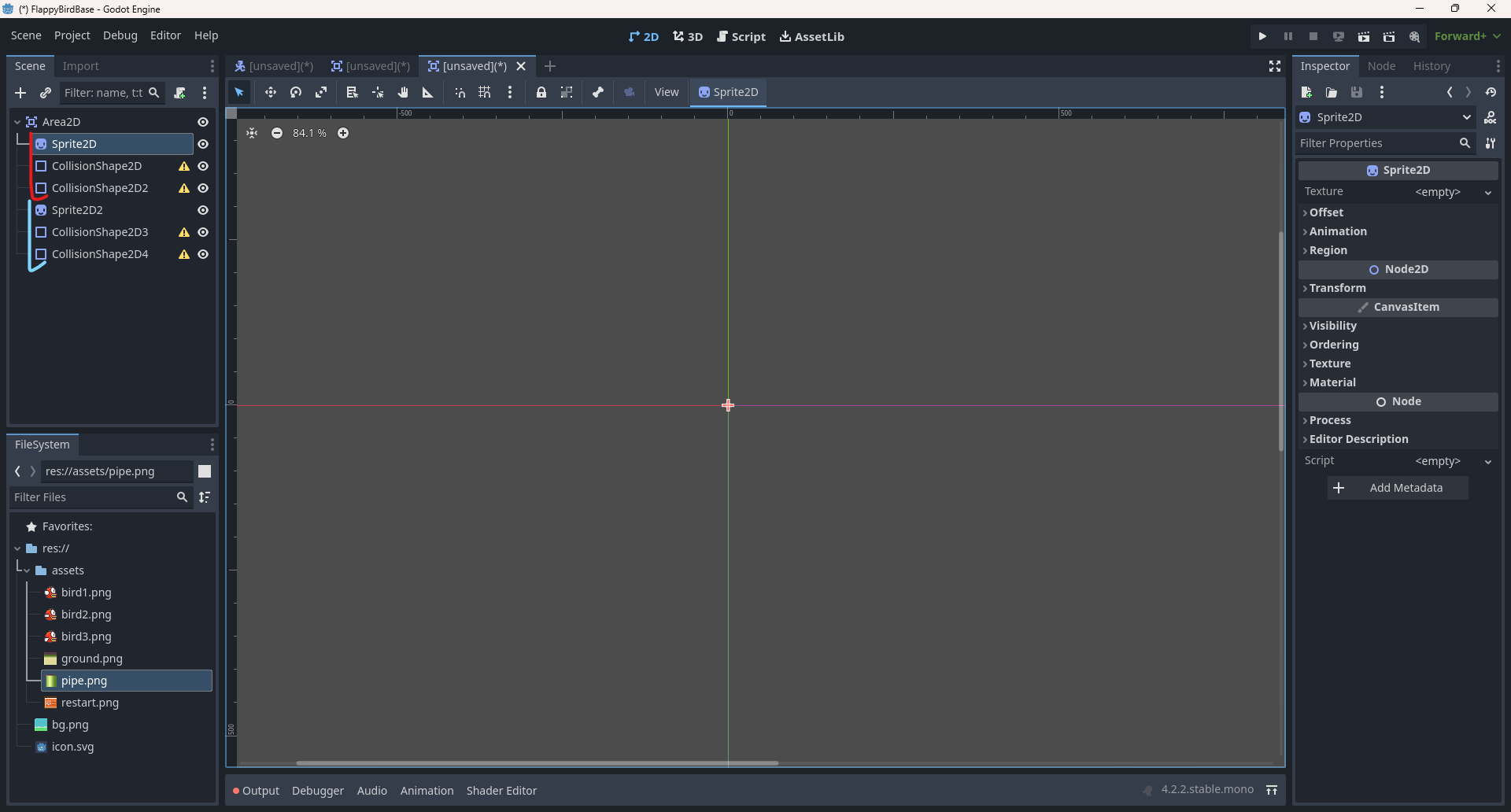

Add two Sprite2D and four Collision2D

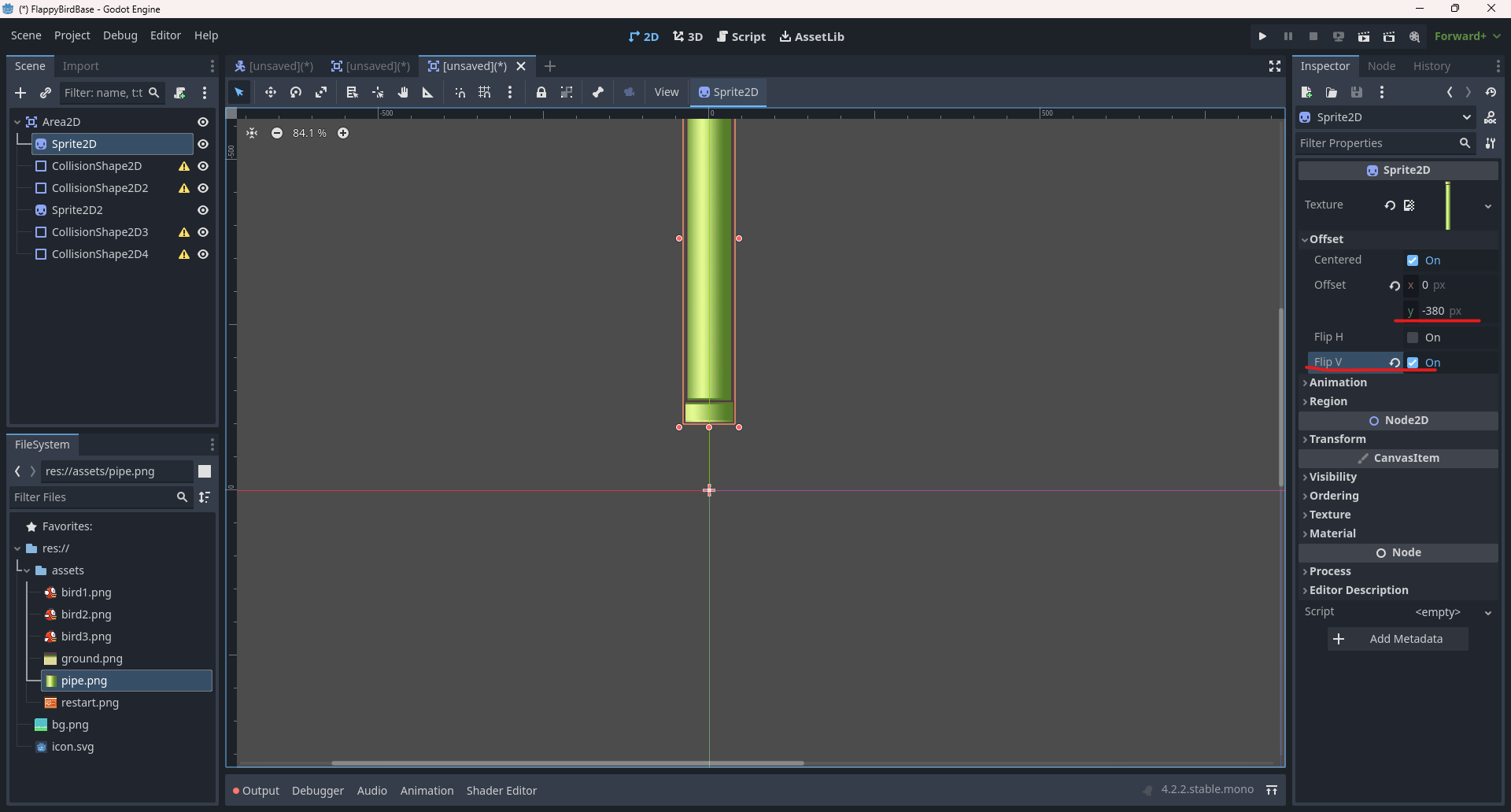

Add Image to upper Sprite2D, and offset by -380 and Flip Vertical

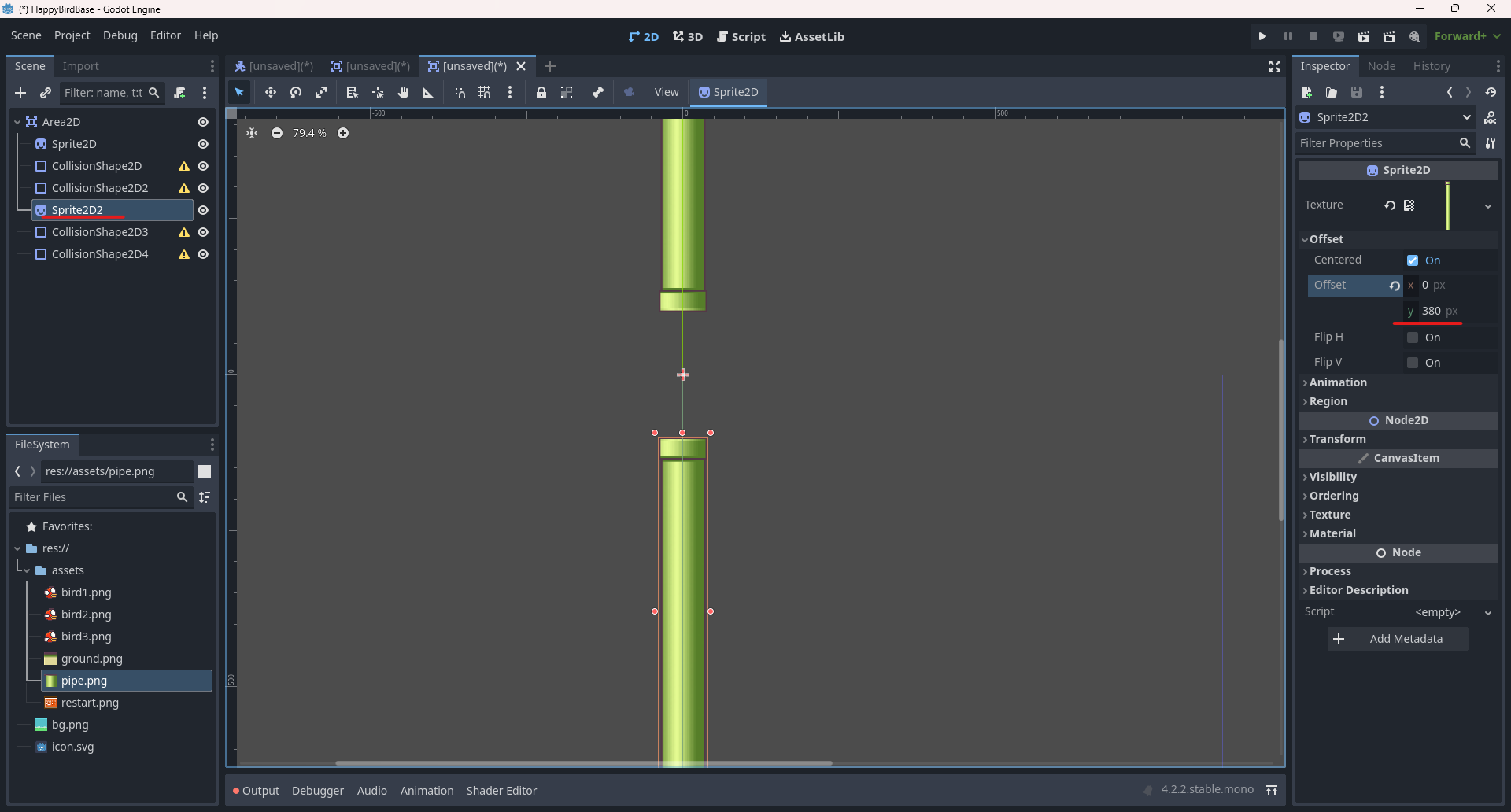

Add Image to lower Sprite2D, and offset by 380

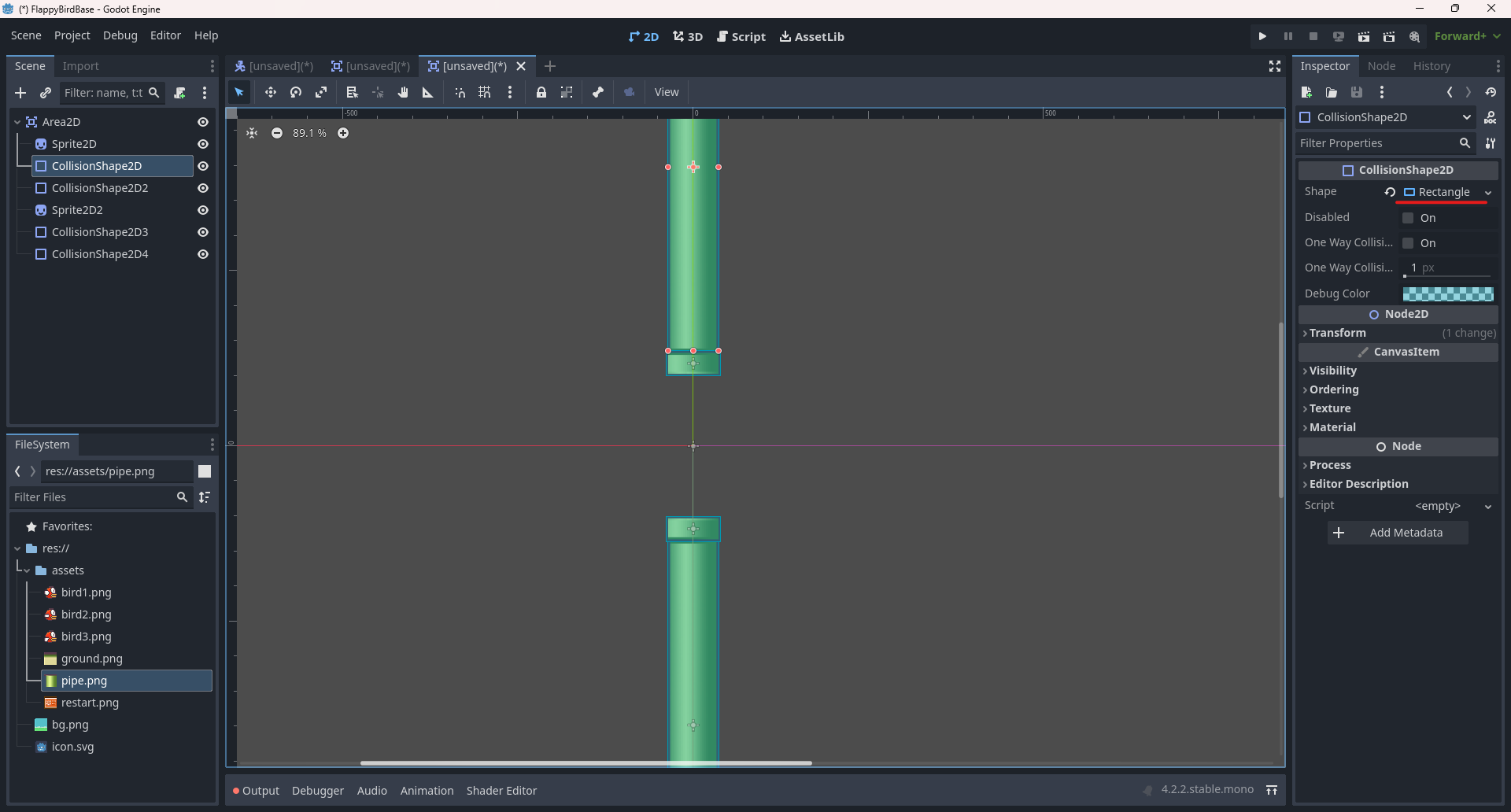

Set collisions to Rectangles and place them over pipes

Add Score Area (HAS TO BE CALLED "Score" TO USE SCRIPT BELOW)

Script for Pipes (MAKE SURE IT'S CALLED "Score") (pipe.gd)

extends Area2D

signal hit
signal scored

func _on_body_entered(body):
	hit.emit()

func _on_score_body_entered(body):
	scored.emit()

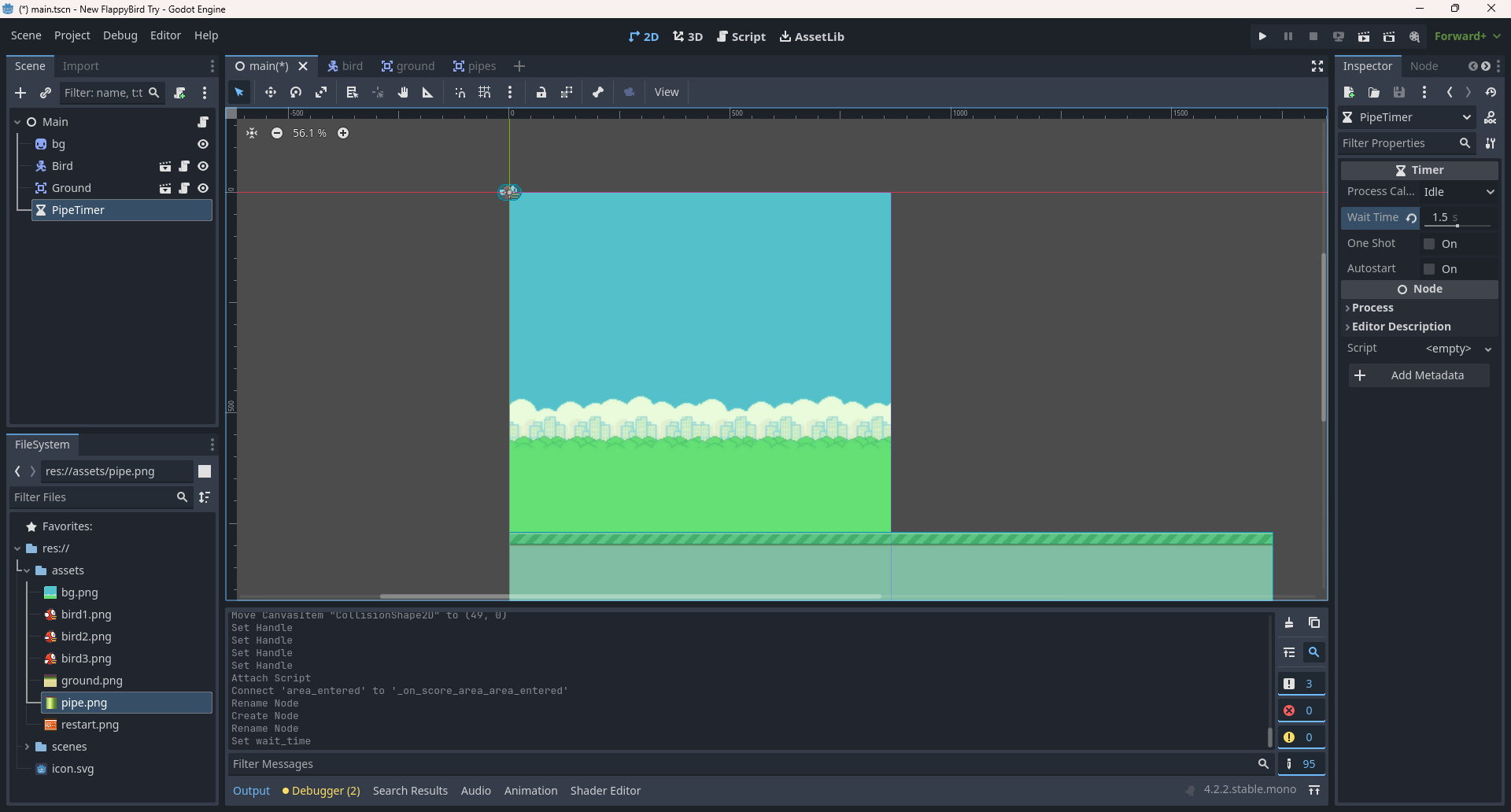

Add new Timer to main scene, rename it "PipeTimer" and change delay to 1.5 seconds

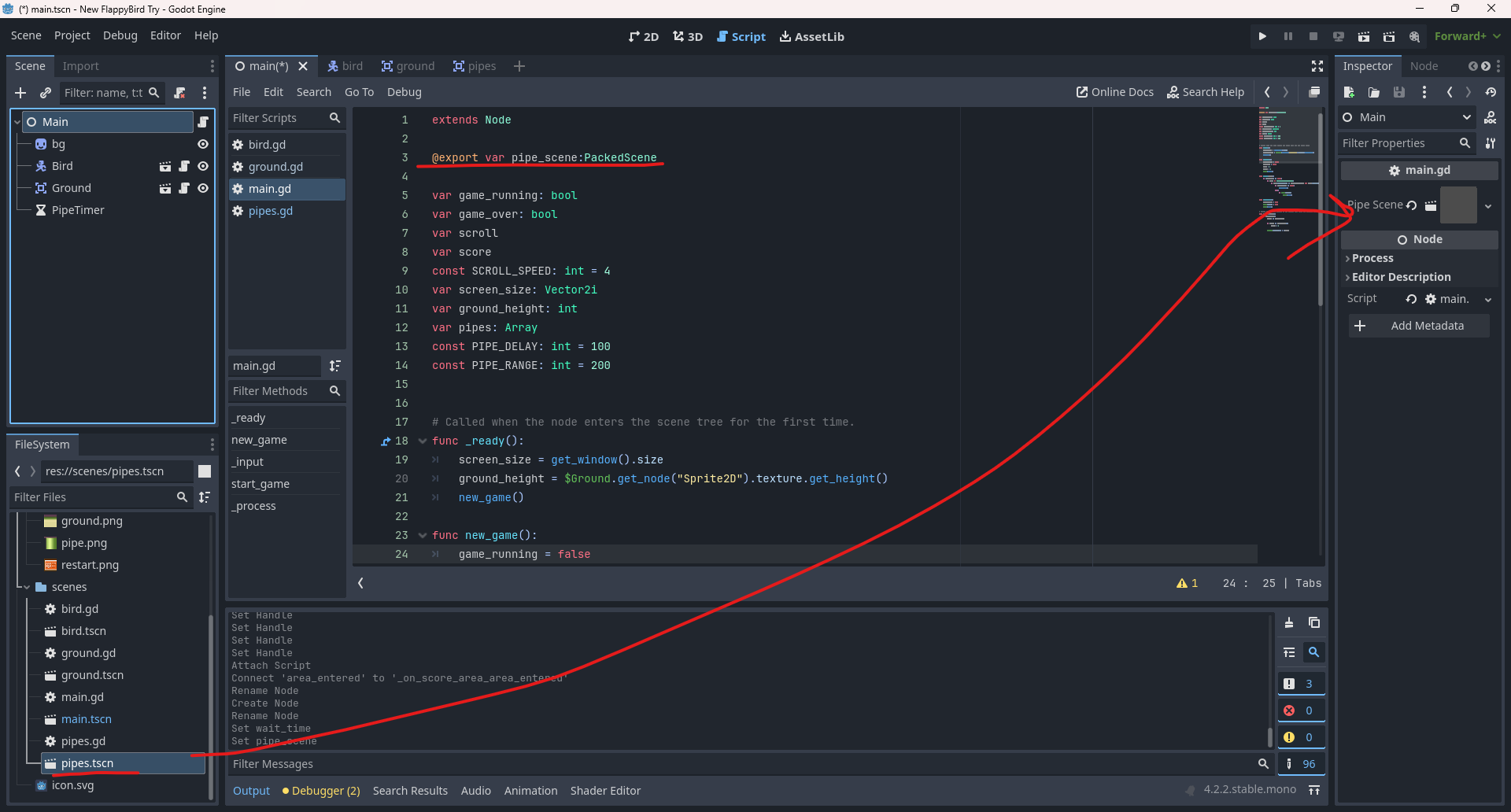

Create a new variable and reference the Pipe scene

Modifying main.gd

Changes at:

• new_game()
• start_game()
• new Functions: _on_pipe_timer_timeout(), generate_pipes()

extends Node

@export var pipe_scene:PackedScene

var game_running: bool
var game_over: bool
var scroll
var score
const SCROLL_SPEED: int = 4
var screen_size: Vector2i
var ground_height: int
var pipes: Array
const PIPE_DELAY: int = 100
const PIPE_RANGE: int = 200

func scored():
	pass
	#score += 1
	#$ScoreLabel.text = "SCORE: " + str(score)

# Called when the node enters the scene tree for the first time.
func _ready():
	screen_size = get_window().size
	ground_height = $Ground.get_node("Sprite2D").texture.get_height()
	new_game()

func new_game():
	game_running = false
	game_over = false
	score = 0
	scroll = 0
	$Bird.reset()
	# NEW CODE HERE
	generate_pipes()

func _input(event):
	if (game_over) == false:
		if event is InputEventMouseButton:
			if event.button_index == MOUSE_BUTTON_LEFT and event.pressed:
				if game_running == false:
					start_game()
				else:
					if $Bird.flying:
						$Bird.flap()

func start_game():
	game_running = true
	$Bird.flying = true
	$Bird.flap()
	# NEW CODE HERE
	$PipeTimer.start()

# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta):
	if game_running:
		scroll += SCROLL_SPEED

		if scroll >= screen_size.x:
			scroll = 0

		$Ground.position.x = -scroll

		for pipe in pipes:
			pipe.position.x -= SCROLL_SPEED


func stop_game():
	$PipeTimer.stop()
	$Bird.flying = false
	$GameOver.show()
	game_running = false
	game_over = true

func bird_hit():
	$Bird.falling = true
	stop_game()

func _on_pipe_timer_timeout():
	generate_pipes()

func generate_pipes():
	var pipe = pipe_scene.instantiate()
	pipe.position.x = screen_size.x + PIPE_DELAY
	pipe.position.y = (screen_size.y - ground_height) / 2 + randi_range(-PIPE_RANGE, PIPE_RANGE)
	pipe.hit.connect(bird_hit)
	pipe.scored.connect(scored)
	add_child(pipe)		# Add new pipe object to scene main
	pipes.append(pipe)	# Add new pipe object to pipes array, to keep track of them

Changing ground draw order (Do the same to Score Label)

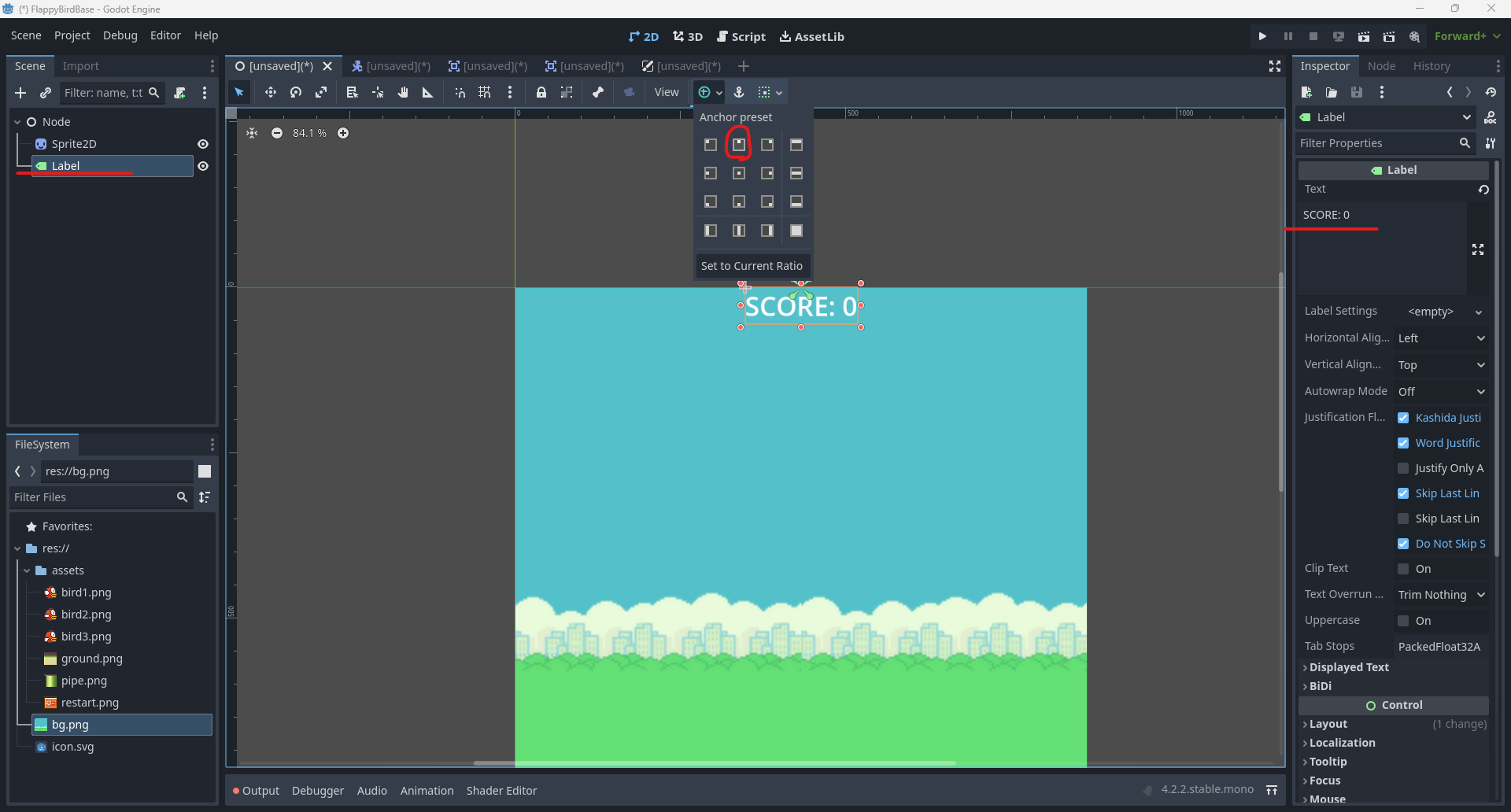

Back in main, add a Label Control Node, rename it ScoreLabel
(HAS TO BE ScoreLabel)

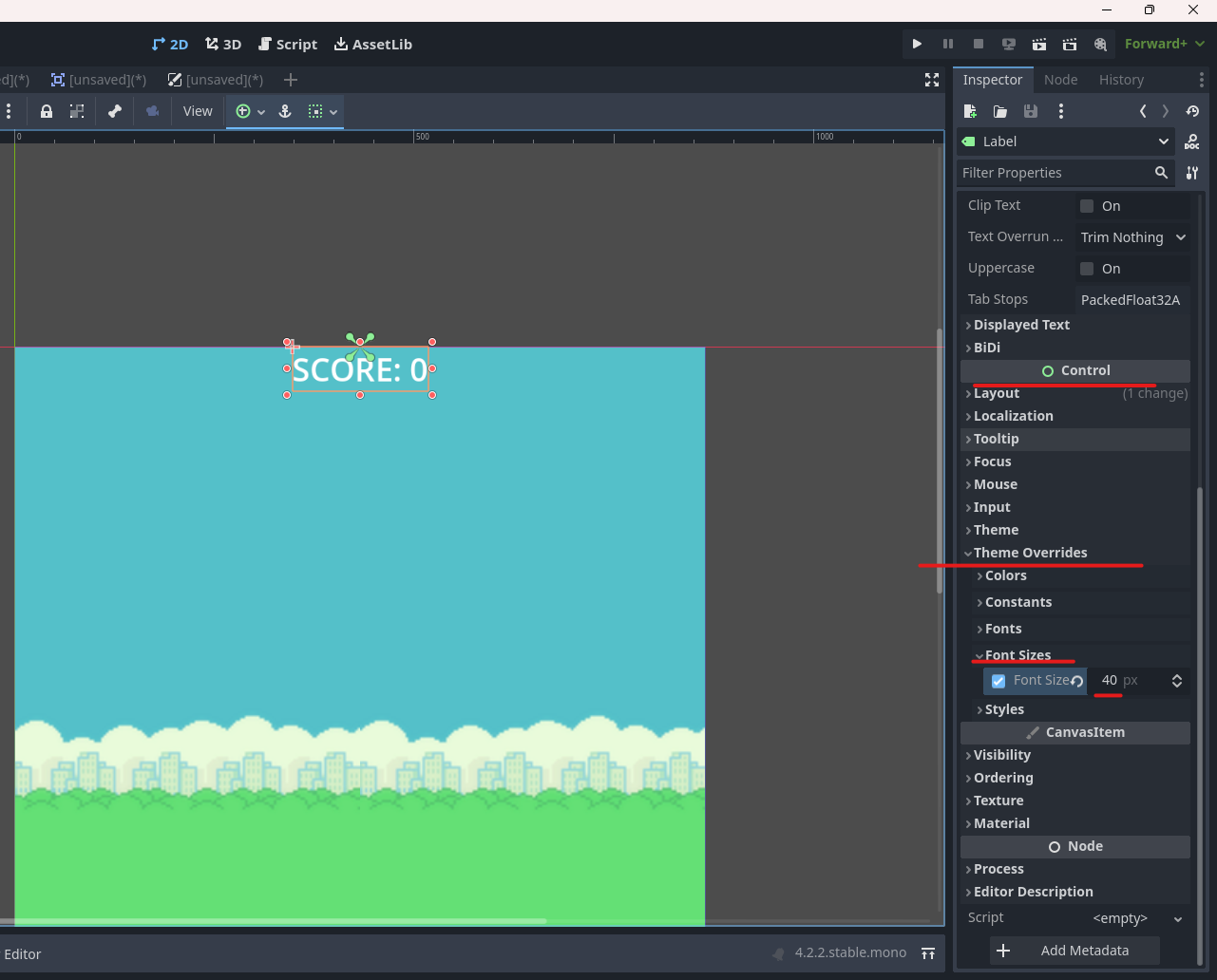

Inside Control -> Theme Override -> Font Size, set it to 40, and also change Font Color to #cbbd93

Coding (edit main.gd)

• Uncomment code in scored()
• new_game() function

Add new function to main.gd

func check_top():
	if $Bird.position.y < 0:
		$Bird.falling = true
		stop_game()

Call the function in inputs when flapping

func _input(event):
	if (game_over) == false:
		if event is InputEventMouseButton:
			if event.button_index == MOUSE_BUTTON_LEFT and event.pressed:
				if game_running == false:
					start_game()
				else:
					if $Bird.flying:
						$Bird.flap()
						check_top()

Adding Ground check

func _on_ground_hit():
	if $Bird.flying:
		$Bird.flap()
	$Bird.falling = true # Set to false if you dont want to let rocky drown
	stop_game()

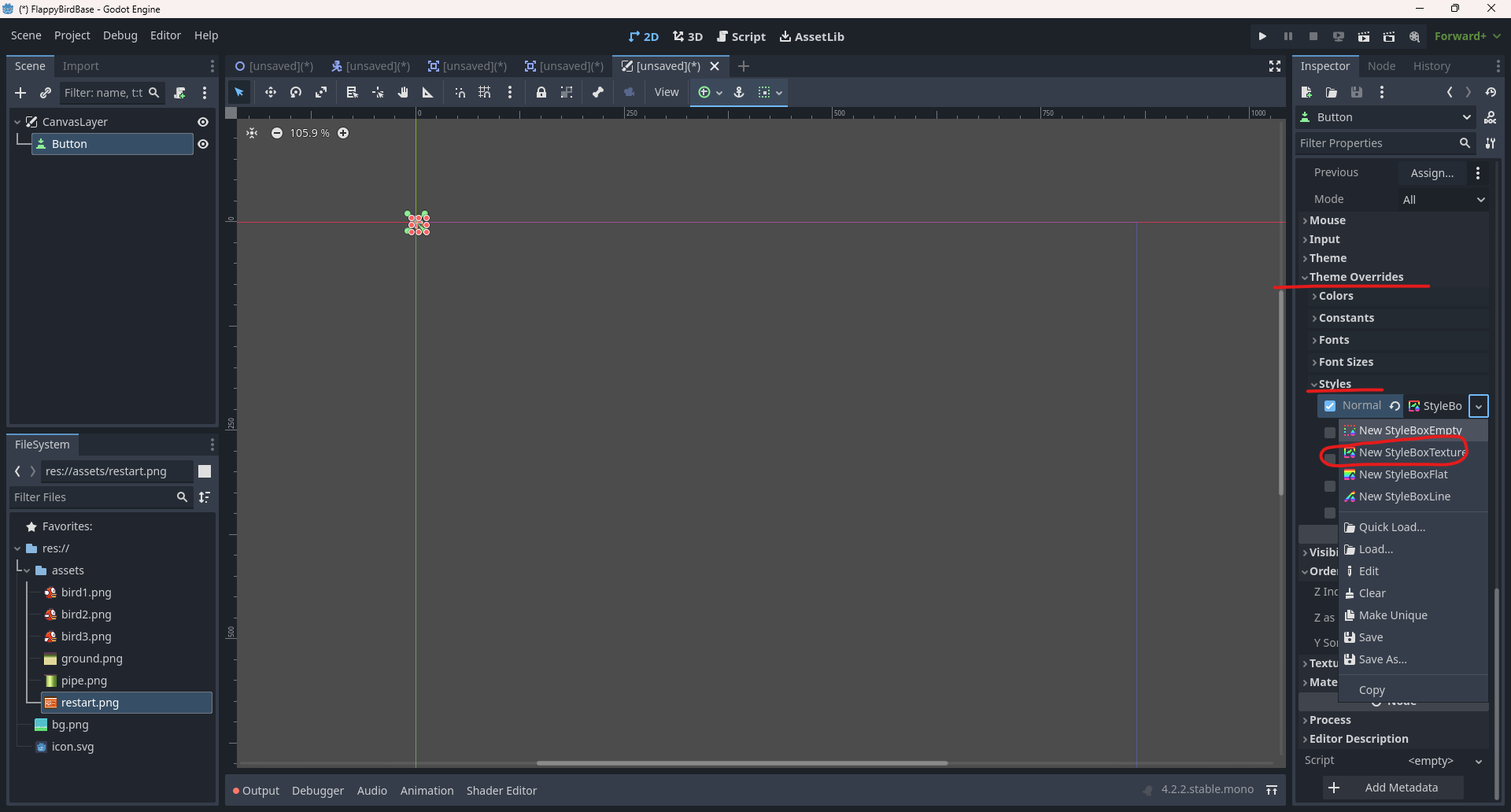

Create new Canvas Layer Scene, add Button Child node, and Override Themes with New StyleButtonTexture

Select the StyleButtonTexture (not the arrow) add the button Texture

Repeat for Hover and Pressed

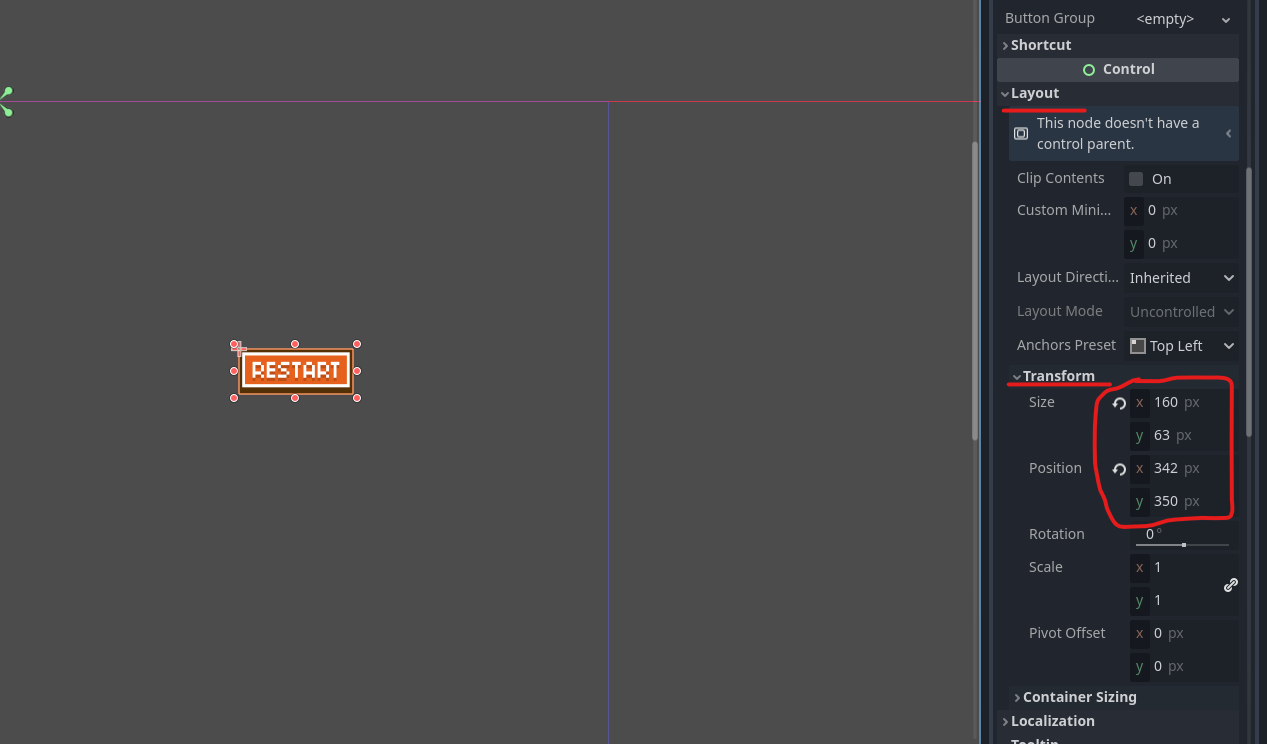

Change the Transform, Control -> Layout -> Transform

Restart Button Script

extends CanvasLayer

signal restart

func _on_restart_button_pressed():
	restart.emit()

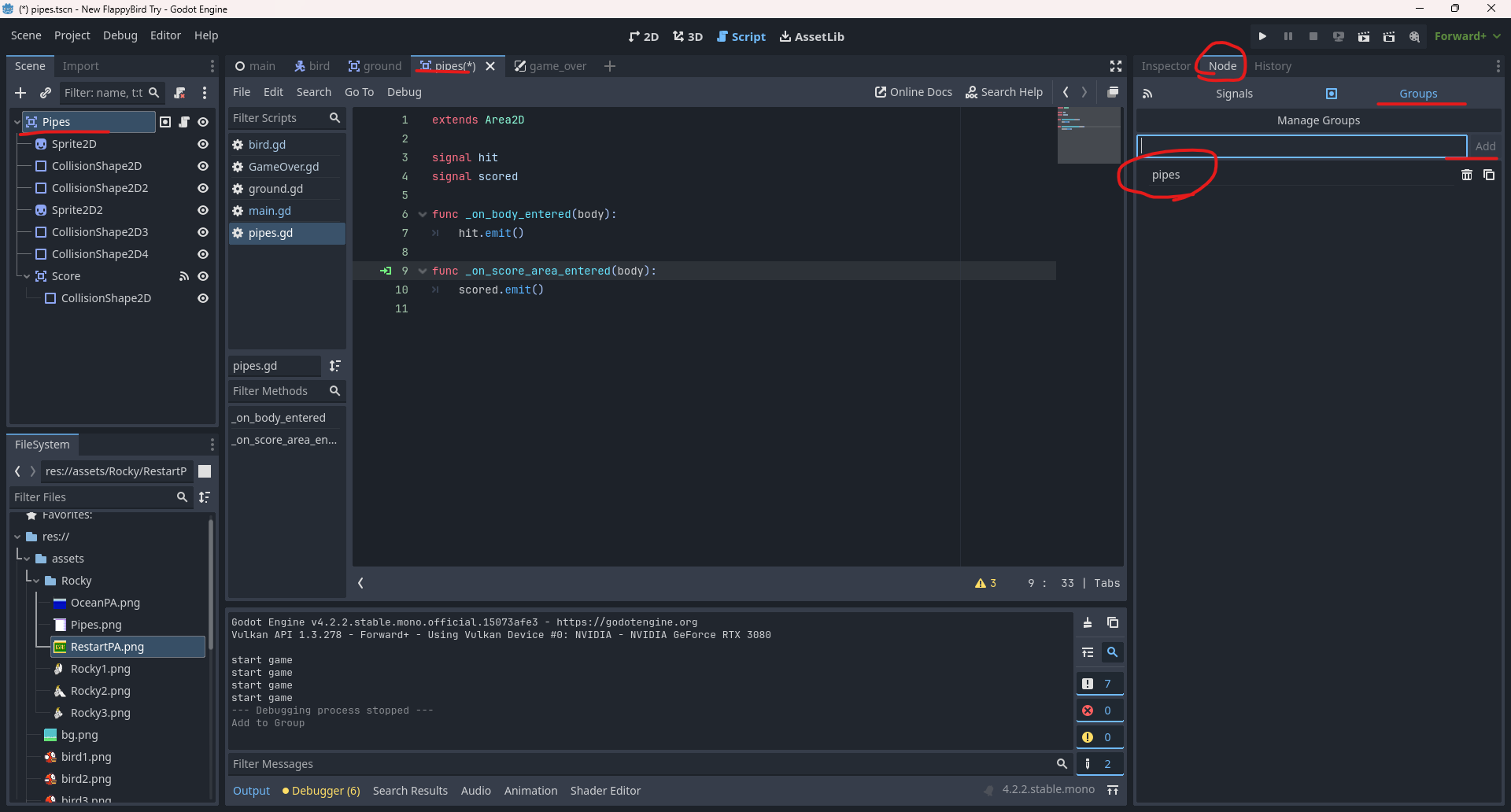

Create new pipes group in Pipe scene

main.gd

extends Node

@export var pipe_scene:PackedScene

var game_running: bool
var game_over: bool
var scroll
var score
const SCROLL_SPEED: int = 4
var screen_size: Vector2i
var ground_height: int
var pipes: Array
const PIPE_DELAY: int = 100
const PIPE_RANGE: int = 200


# Called when the node enters the scene tree for the first time.
func _ready():
	screen_size = get_window().size
	ground_height = $Ground.get_node("Sprite2D").texture.get_height()
	new_game()

func new_game():
	game_running = false
	game_over = false
	score = 0
	scroll = 0
	$ScoreLabel.text = "SCORE: " + str(score)
	$Bird.reset()
	$GameOver.hide()
	get_tree().call_group("pipes", "queue_free")
	pipes.clear()
	generate_pipes()

func _input(event):
	if (game_over) == false:
		if event is InputEventMouseButton:
			if event.button_index == MOUSE_BUTTON_LEFT and event.pressed:
				if game_running == false:
					start_game()
				else:
					if $Bird.flying:
						$Bird.flap()
						check_top()

func start_game():
	print("start game")
	game_running = true
	$Bird.flying = true
	$Bird.flap()
	$PipeTimer.start()

# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta):
	if game_running:
		scroll += SCROLL_SPEED

		if scroll >= screen_size.x:
			scroll = 0

		$Ground.position.x = -scroll

		for pipe in pipes:
			pipe.position.x -= SCROLL_SPEED


func _on_pipe_timer_timeout():
	generate_pipes()

func generate_pipes():
	var pipe = pipe_scene.instantiate()
	pipe.position.x = screen_size.x + PIPE_DELAY
	pipe.position.y = (screen_size.y - ground_height) / 2 + randi_range(-PIPE_RANGE, PIPE_RANGE)
	pipe.hit.connect(bird_hit)
	pipe.scored.connect(scored)
	add_child(pipe)		# Add new pipe object to scene main
	pipes.append(pipe)	# Add new pipe object to pipes array, to keep track of them

func scored():
	score += 1
	$ScoreLabel.text = "SCORE: " + str(score)

func stop_game():
	$PipeTimer.stop()
	$Bird.flying = false
	$GameOver.show()
	game_running = false
	game_over = true

func check_top():
	if $Bird.position.y < 0:
		$Bird.falling = true
		stop_game()

func bird_hit():
	$Bird.falling = true
	stop_game()

func _on_ground_hit():
	if $Bird.flying:
		$Bird.flap()
	$Bird.falling = true # Set to false if you dont want to let rocky drown
	stop_game()

func _on_game_over_restart():
	new_game()

bird.gd

extends CharacterBody2D


const GRAVITY: int = 1800
const MAX_VEL: int = 600
const START_POS = Vector2(100,400)
const FLAP_SPEED: int = -500
var flying: bool = false
var falling: bool = false

func _ready():
	reset()

func reset():
	falling = false
	flying = false
	position = START_POS
	set_rotation(0)

func _physics_process(delta):
	if flying or falling:
		velocity.y += GRAVITY * delta

		if velocity.y > MAX_VEL:
			velocity.y = MAX_VEL
		if flying:
			set_rotation (deg_to_rad(velocity.y * 0.05))
			$AnimatedSprite2D.play()
		elif falling:
			set_rotation(PI/2)
			$AnimatedSprite2D.stop()
		move_and_collide(velocity * delta)
	else:
		$AnimatedSprite2D.stop()

func flap():
	velocity.y = FLAP_SPEED
