Table of Contents

1. Overview
2. Installing Godot and creating a new project
3. Create new "World" Scene
4. Creating Player Node
5. Add lighting
6. Input Mapping
7. Scripting the Player Node
8. Making it better
9. FINISH

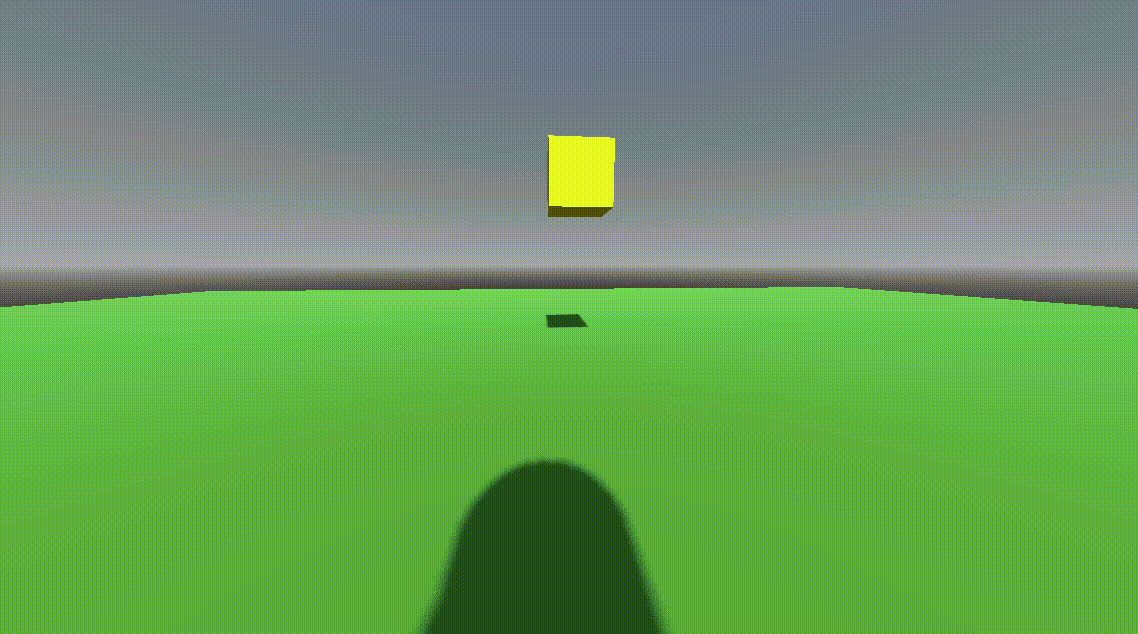

Finished Project

Download Godot

Click Here to Dowload Godot

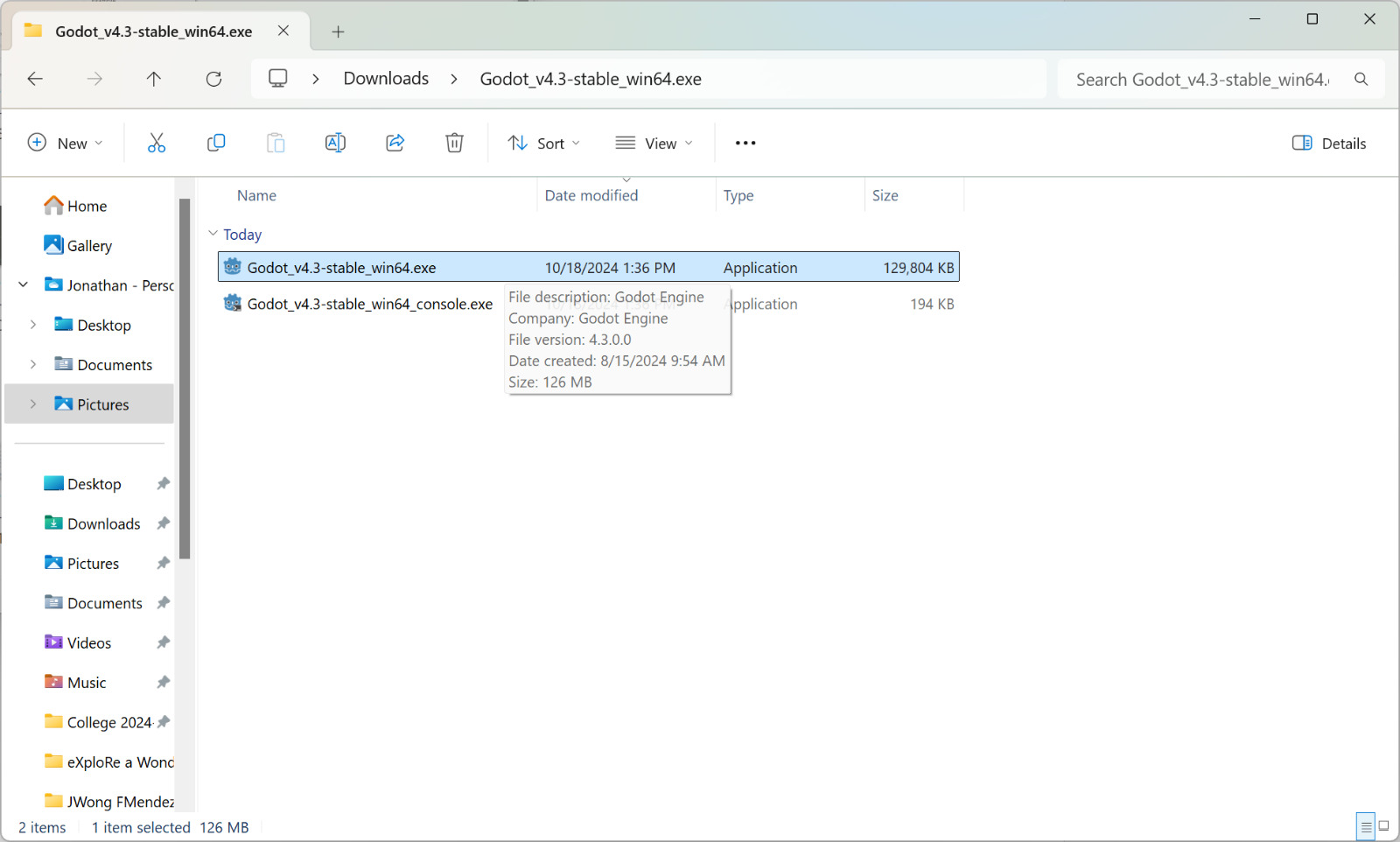

Run the correct Godot

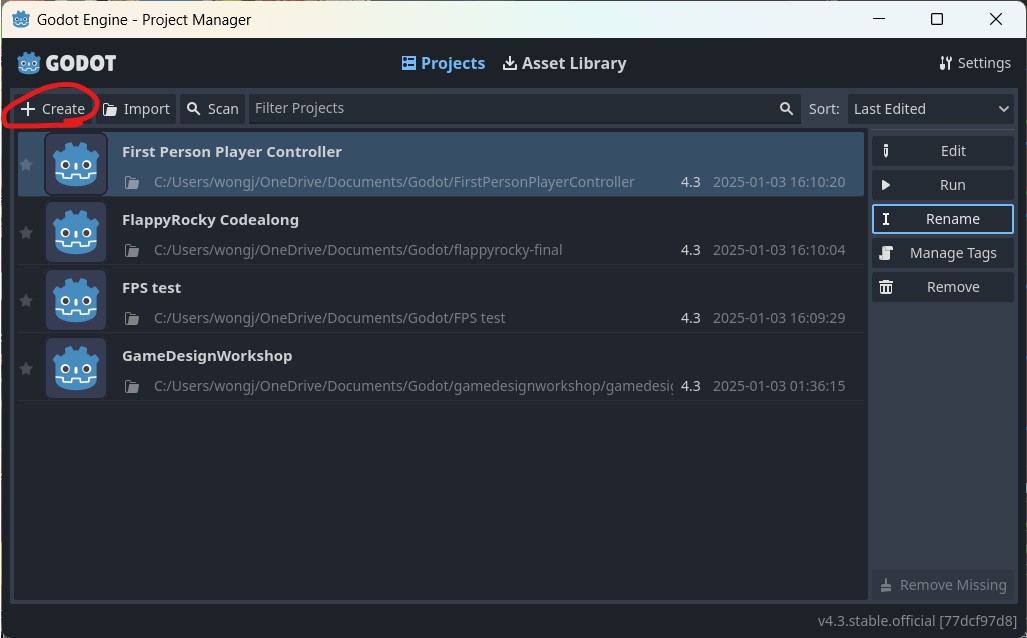

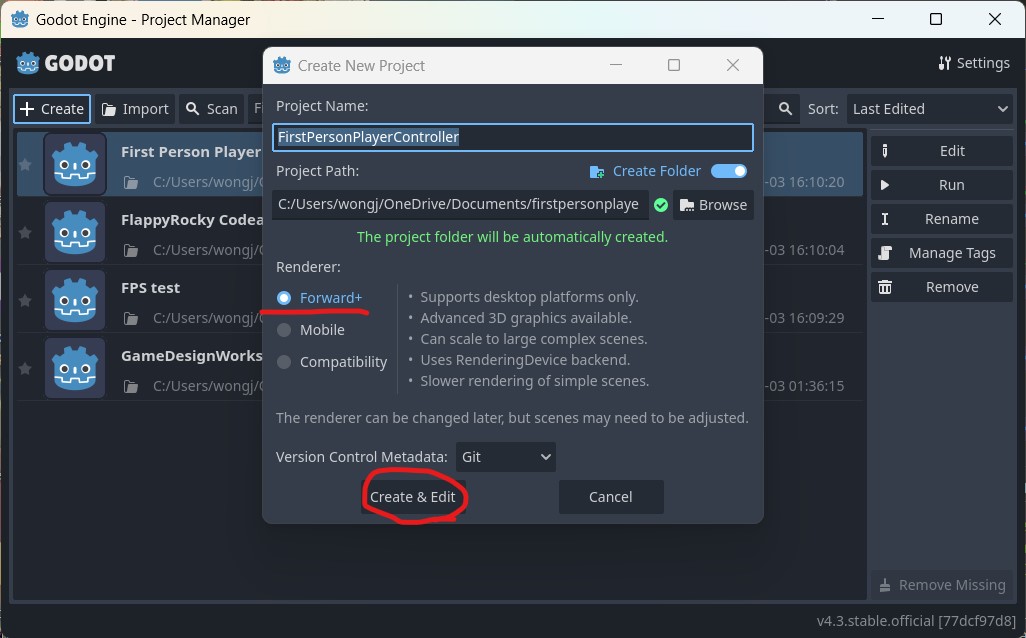

Create a new project

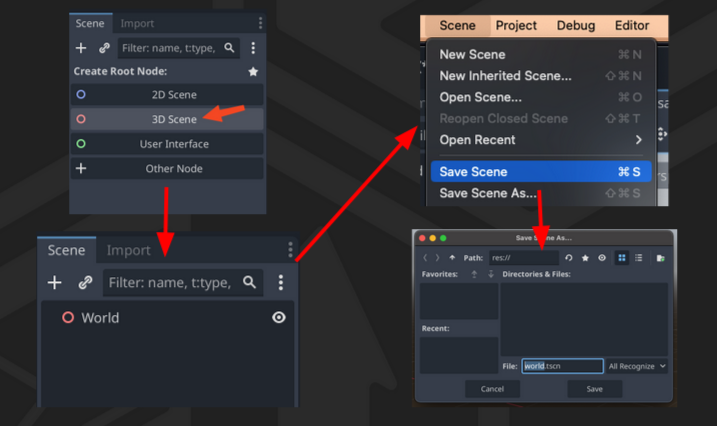

Create a new 3D Scene

Create a new floor, Add Static Body and Mesh

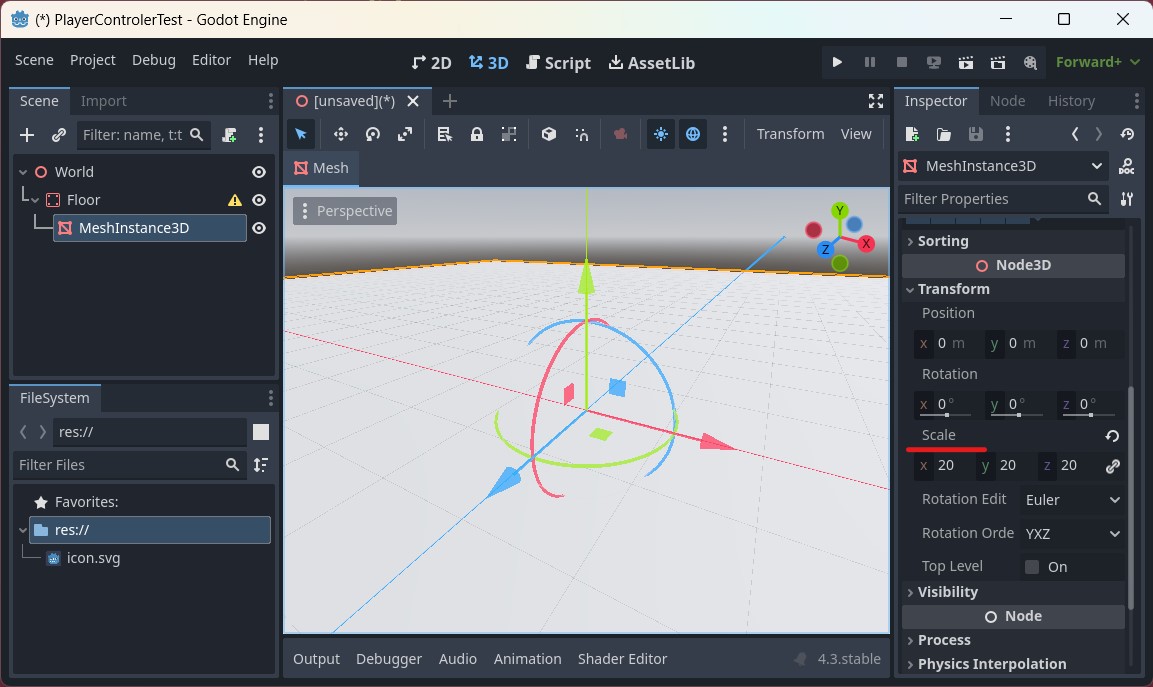

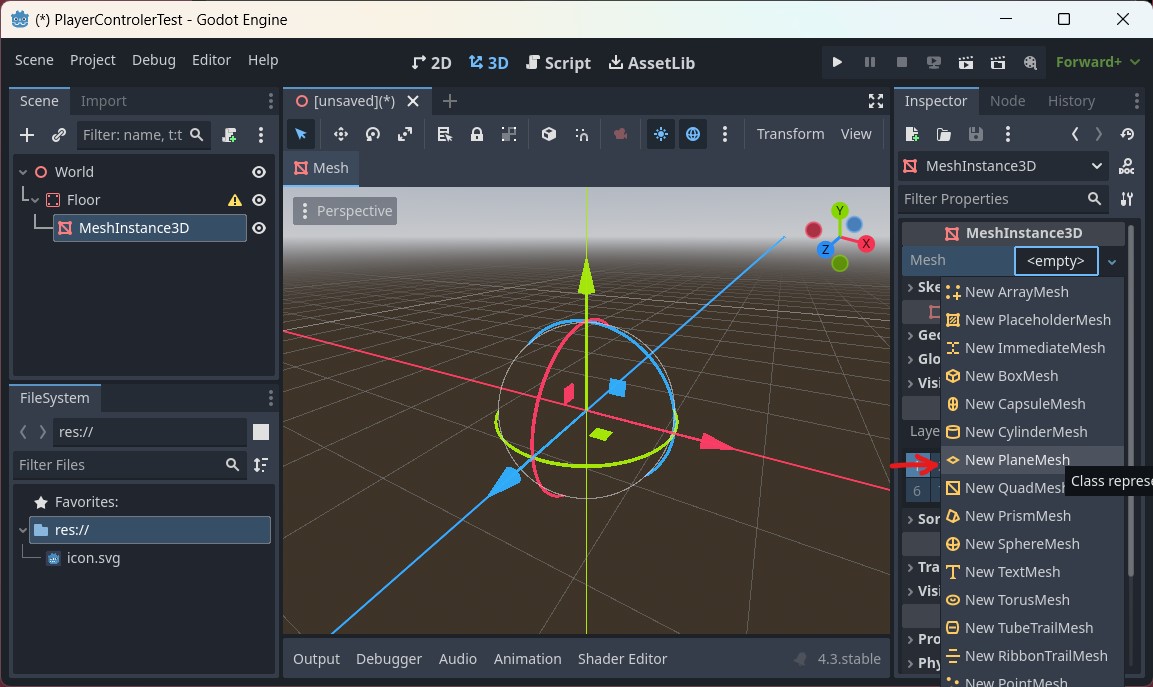

Assign Mesh to plane mesh and increase the size

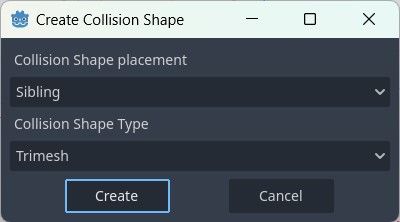

Adding a Collider to the mesh

Run the program with F5 and assign world as the main Scene

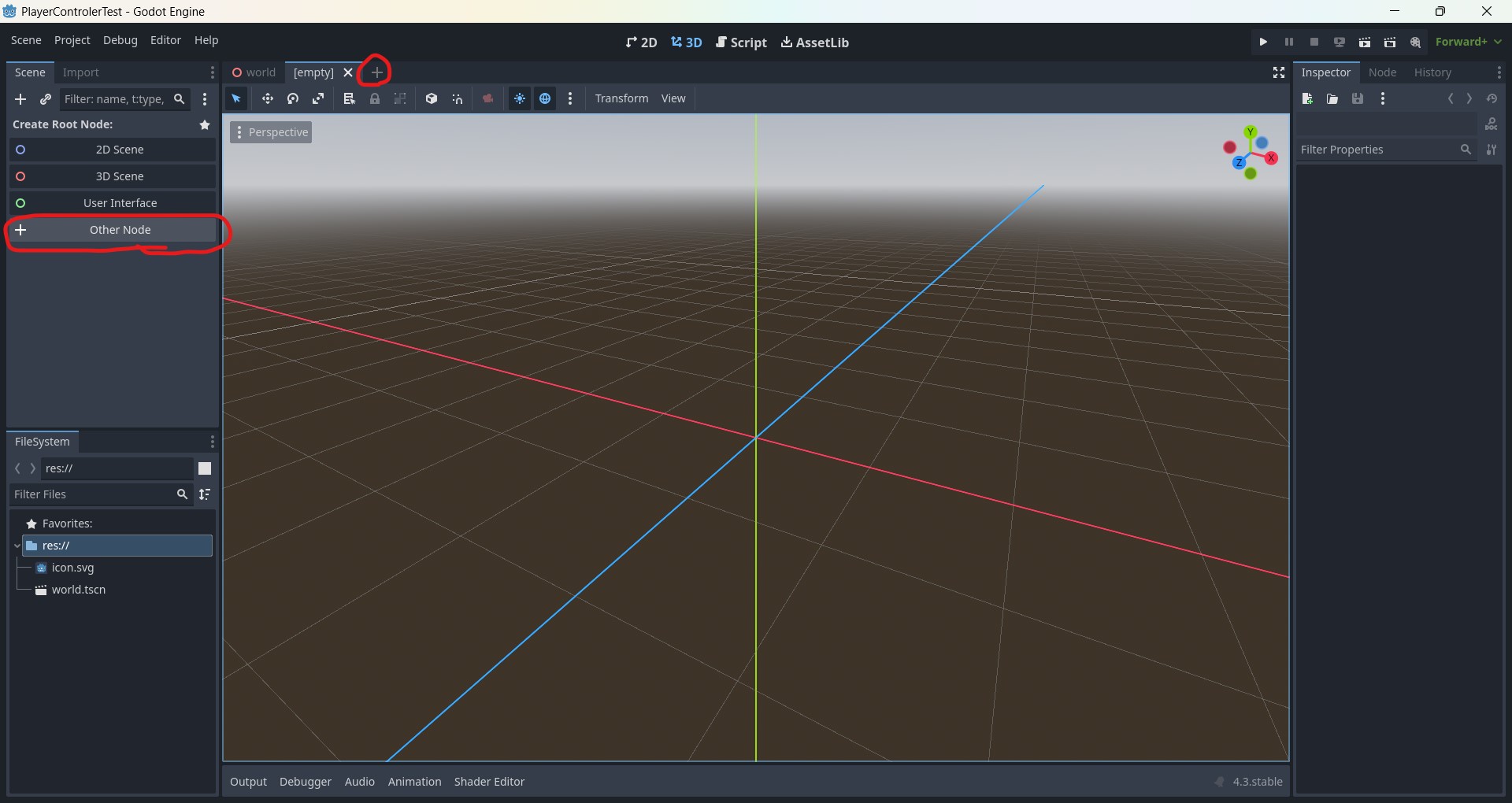

Create a new Scene

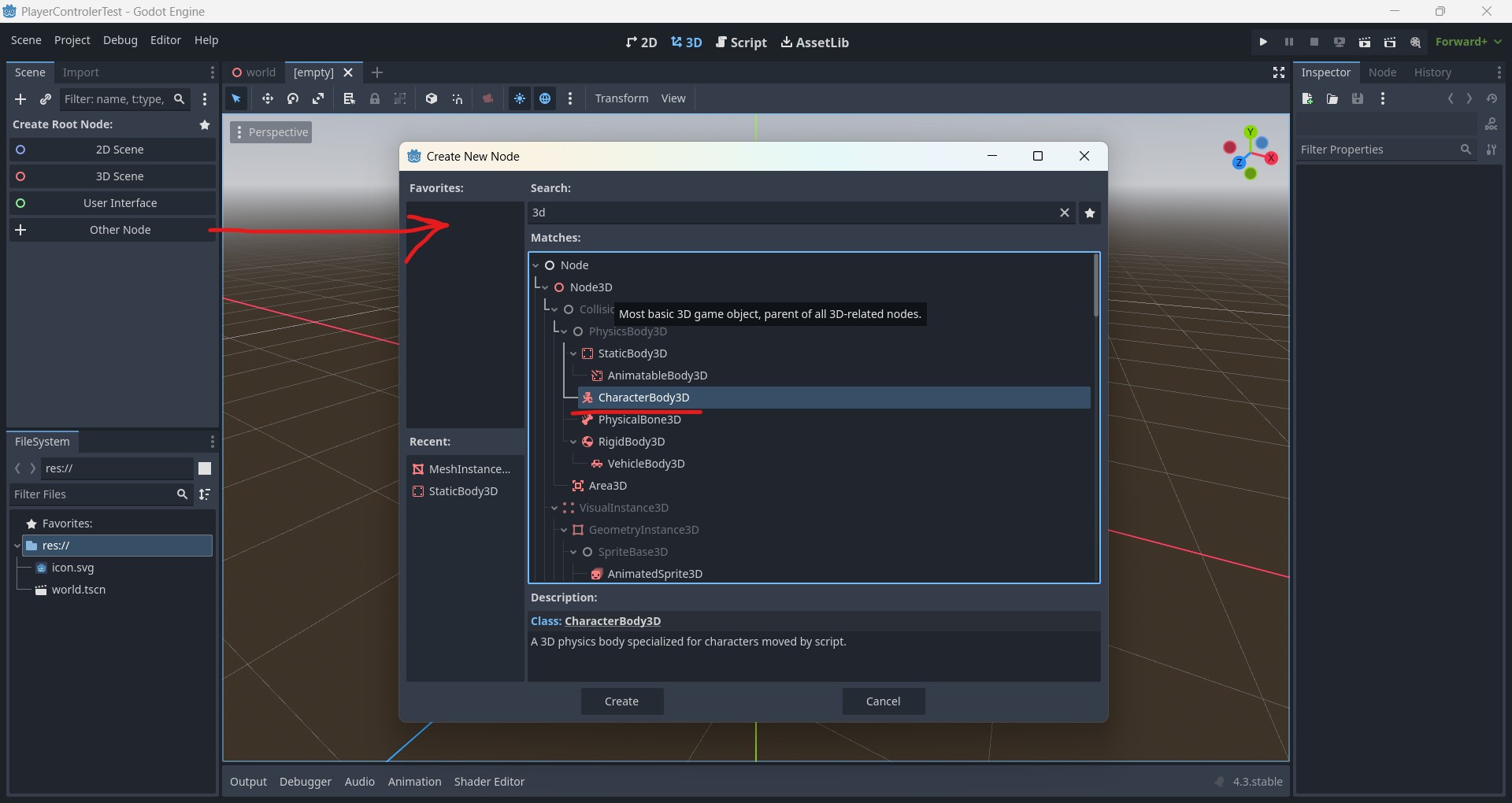

Add CharacterBody3D Node as main Node to the Scene

Give the CharacterBody3D a Capsule Mesh and Collision Shape

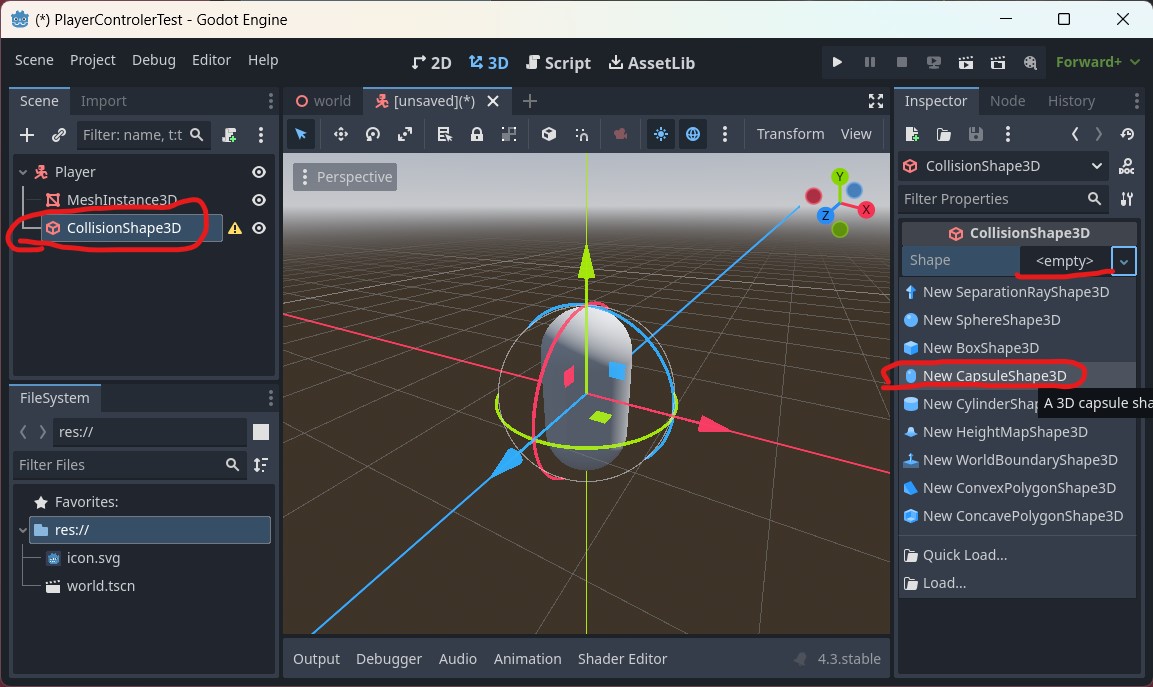

Assign a Capsule shae to the collider

Add a Camera Node

Link it to the World Scene

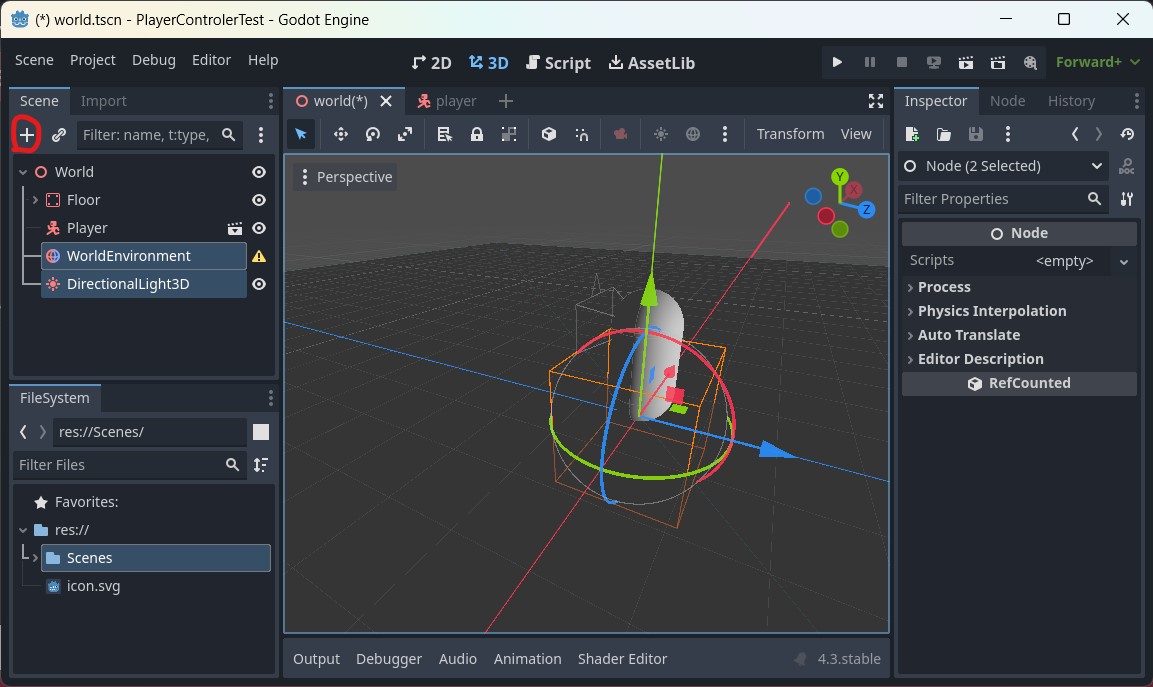

Add WorldEnviorment and DirectionLight3D to the world Scene

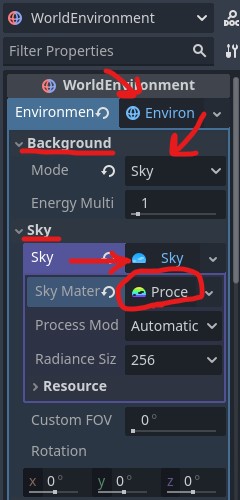

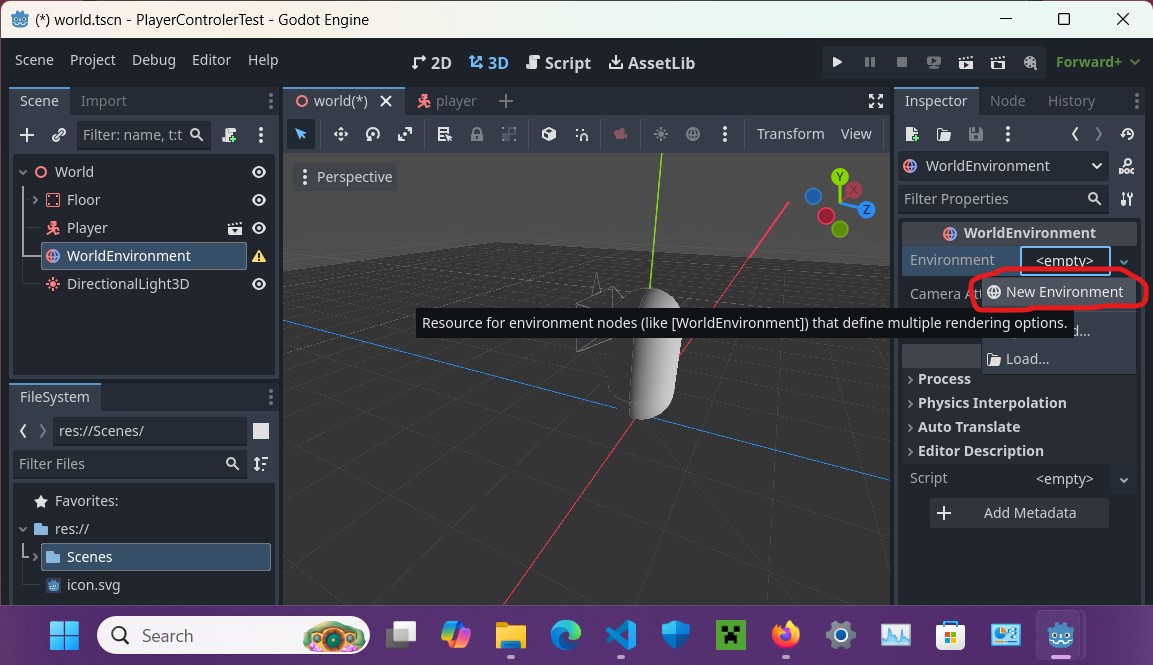

Create a new Enviorment

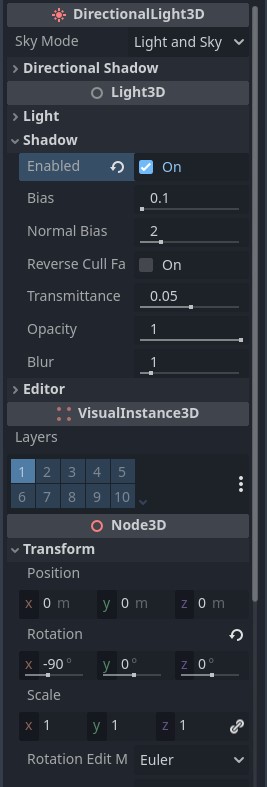

In DirectionLight3D Node enable shadows and adjust the rotation transform

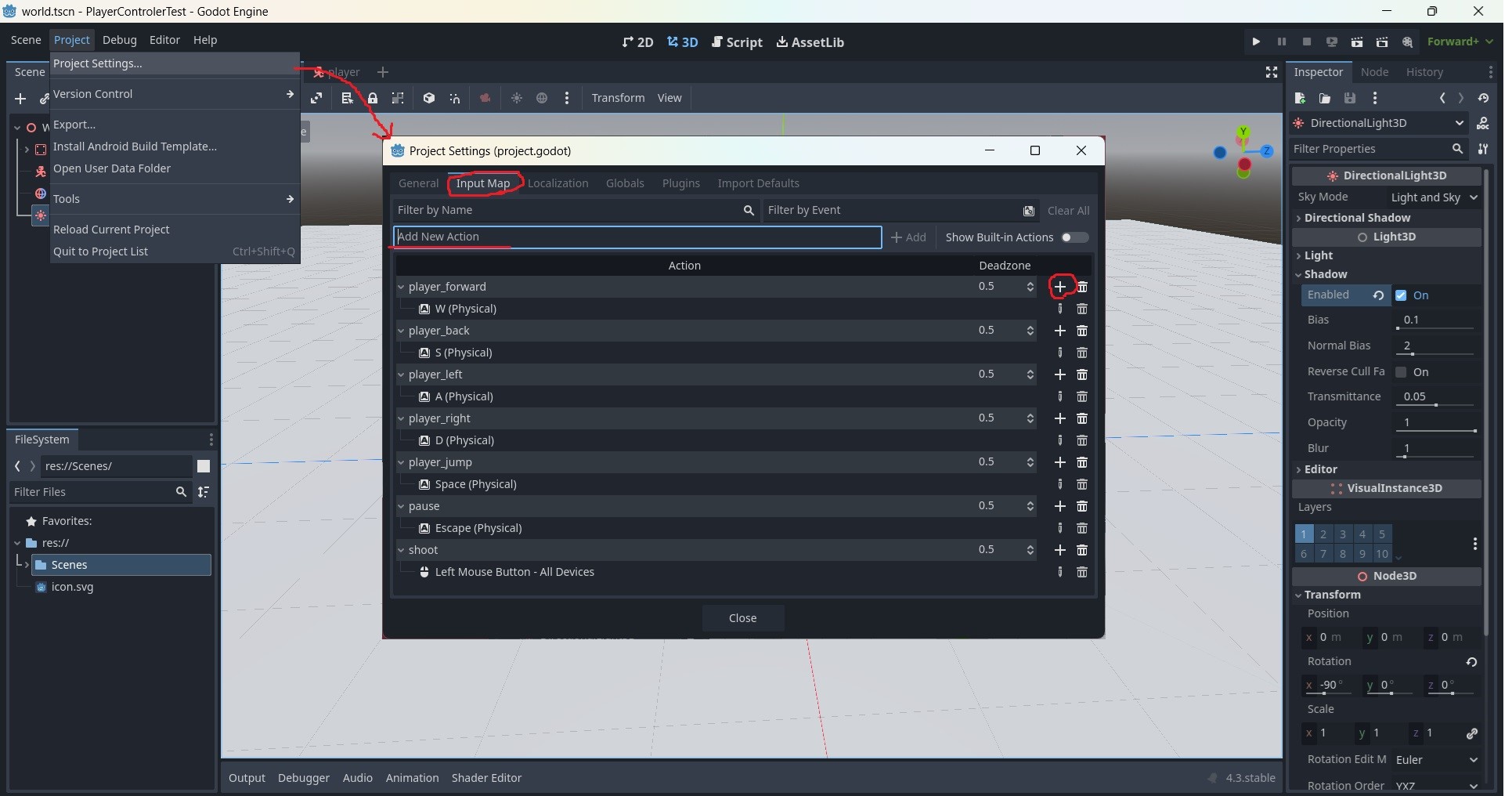

Add new acrions to input map

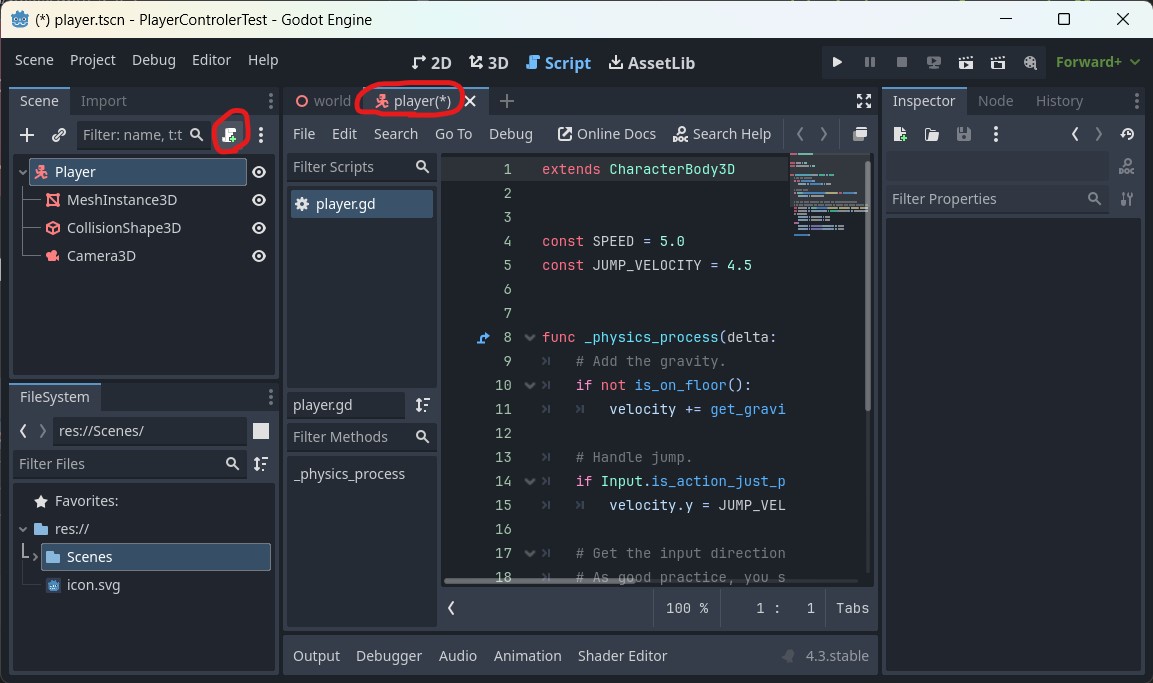

Attach a new Script to the Player Scene

Change the default Inputs to the new inputs we made in Input Mapping actions

Adjust line 14 and 19 to our needs (Inside func _input())

    # Handle jump.
	if Input.is_action_just_pressed("player_jump") and is_on_floor():
		velocity.y = JUMP_VELOCITY

	# Get the input direction and handle the movement/deceleration.
	# As good practice, you should replace UI actions with custom gameplay actions.
	var input_dir := Input.get_vector("player_left", "player_right", "player_forward", "player_back")
	var direction := (transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()

Add _ready function to lock mouse on start

The function call will be called by the game engine on ready

func _ready() -> void:
	Input.mouse_mode = Input.MOUSE_MODE_CAPTURED

Create new var ‘MOUSE_SENSETIVITY' at top and add _process function and wait for pause input to toggle mouse when pause button is pressed

# Top of the Script
extends CharacterBody3D


const SPEED = 5.0
const JUMP_VELOCITY = 4.5
const MOUSE_SENSETIVITY = 0.1 	#ADDED CODE

...
...
...

func _process(delta: float) -> void:
	if Input.is_action_just_pressed("pause"):
		if Input.mouse_mode == Input.MOUSE_MODE_CAPTURED:
			Input.mouse_mode =Input.MOUSE_MODE_VISIBLE
		else:
			Input.mouse_mode = Input.MOUSE_MODE_CAPTURED

Add _input function and get Mouse Inputs to get look direction

func _input(event: InputEvent) -> void:
	if Input.mouse_mode == Input.MOUSE_MODE_CAPTURED:
		if event is InputEventMouseMotion:
			rotation_degrees.x -= event.relative.y * MOUSE_SENSETIVITY
			rotation_degrees.y -= event.relative.x * MOUSE_SENSETIVITY
			rotation_degrees.x = clamp(rotation_degrees.x, -90.0, 90.0)

We finished the most basic player Controller

You may notice that it feels bad and not fun to use. The reason for this is because there is not inertia in the controller right, main cause of this, is that the default Godot CharacterBody3D is a little scuffed.

    var input_dir := Input.get_vector("player_left", "player_right", "player_forward", "player_back")
    var direction := (transform.basis * Vector3(input_dir.x, 0, input_dir.y)).normalized()

    # START OF NEW CODE

    if is_on_floor():	# ADDED IF STATEMENT FOR AIR CONTROLS
		if direction:
			velocity.x = direction.x * SPEED
			velocity.z = direction.z * SPEED
		else:
			# CHANGED CODE HERE FOR ACTUAL WORKING SLOWING (because godot template was scuffed) (ADDED CODE)
			velocity.x = lerp(velocity.x, direction.x * SPEED, delta * 4.0)
			velocity.z = lerp(velocity.z, direction.z * SPEED, delta * 4.0)
	# ADDED CODE
    else:
		velocity.x = lerp(velocity.x, direction.x * SPEED, delta * 3.0)
		velocity.z = lerp(velocity.z, direction.z * SPEED, delta * 3.0)


    # END OF NEW CODE STUFF
	move_and_slide()

Jump buffering (adjust the jump input)

From: Input.is_action_just_pressed("player_jump")
To: Input.is_action_pressed("player_jump")

	# Handle jump.
	if Input.is_action_pressed("player_jump") and is_on_floor():
		velocity.y = JUMP_VELOCITY

✅ Now you have a very basic Godot Player Controller
✅ Next workshop we will make a primitive First Person Shooter using this controller
✅ Please make sure to check-in

Thanks for participating in this codelab!
